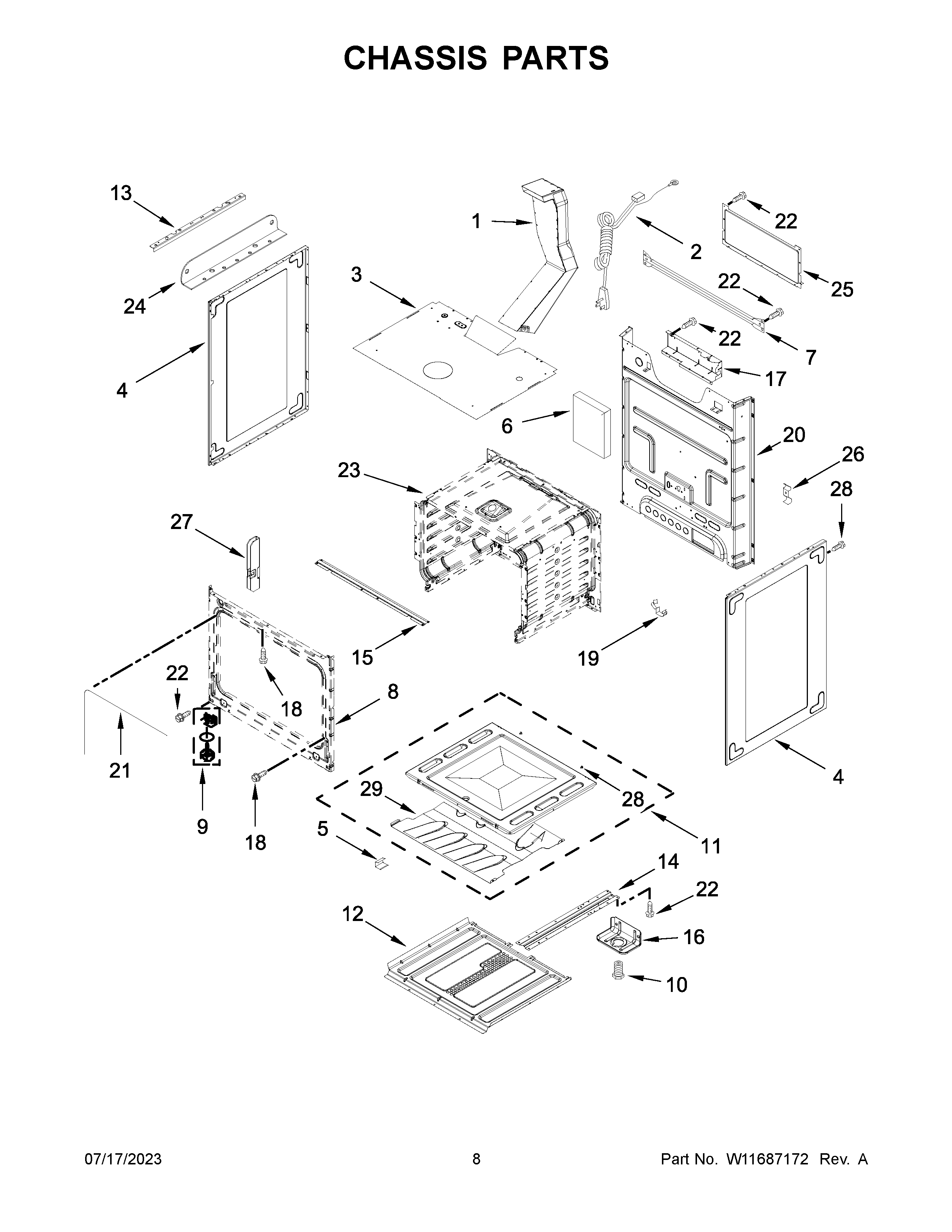

AGR4203MNS0 05 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688850 Whirlpool Insulation
NI	INSULATION
NI	98004294 Whirlpool Insulation Wire
NI	W10537475 Whirlpool Insulation
1	BOX, FLUE
2	W11173616 Whirlpool Power Cord
3	SHIELD, INSULATION
4A	W10816993 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT (BLACK AND WHITE MODELS)
7	98015363 Whirlpool Oven Support
9	W10819918 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	BOTTM-OVEN
12	W10670197 Whirlpool Microwave Bottom Baffle
13	W10577312 Whirlpool Brace Panel
14	W10520269 Whirlpool Base Rail
15	W10545322 Whirlpool Support
16	BRACKET, FOOT
17	W10549293 Whirlpool Access Cover
18	WP98008545 Whirlpool Screw
19	98005642 Whirlpool Clip
20	W10554678 Whirlpool Rear Cover
21	GASKT-DOOR RANGE
22	W10837731 Whirlpool Screw Assembly
24	SIDE PANEL, SUPPORT
25	COVER
26	CLIP, TUBING
27	W11161898 Whirlpool Hinge Receiver
28	WP3400832 Whirlpool Screw
29	W11688713 Whirlpool Burner Baffle
