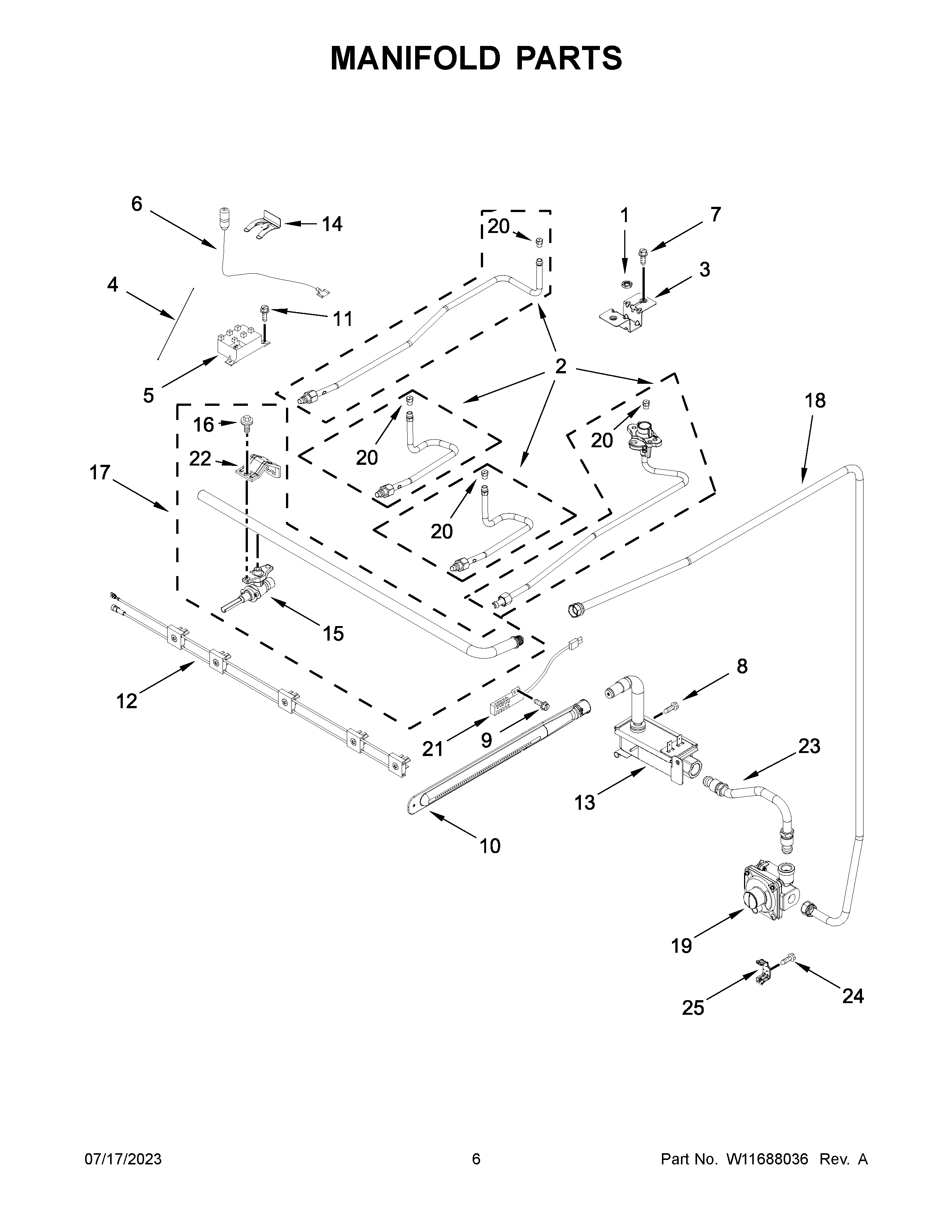

AGR4203MNW0 04 – MANIFOLD PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11620713 Whirlpool Spud Orifice
1	W10610297 Whirlpool Nut
2	W10859921 Whirlpool Venturi Assembly
2C	W11167099 Whirlpool Orifice Holder
2B	W10861724 Whirlpool Venturi
2A	W11213836 Whirlpool Venturi
3	W11715913 Whirlpool Mounting Bracket
4	W10622750 Whirlpool Wire Harness
5	W11590249 Whirlpool Spark Module
6A	W11688763 Whirlpool Surface Igniter
6	IGNITOR, TOP (BLACK)
7	W10837674 Whirlpool Screw
8	98013634 Whirlpool Oven Screw
9	W11676351 Whirlpool Screw
10	W11220387 Whirlpool Oven Burner
11	W10837731 Whirlpool Screw Assembly
12	W11620523 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	CLIP, IGNITOR
15A	W11509769 Whirlpool Burner Valve
15	W11620105 Whirlpool Gas Valve
16	98017517 Whirlpool Oven Screw
17	ASSEMBLY, MANIFOLD
18	W11628651 Whirlpool Gas Tubing
19	W11346659 Whirlpool Regulator
20A	WPW10170506 Whirlpool Orifice Spud
20	WP98017348 Whirlpool Orifice
21	IGNTR-OVEN
22	BRACKET, VALVE
23	W11684515 Whirlpool Range Gas Tubing
24	WP98007225 Whirlpool Screw Assembly
25	98007410 Whirlpool Oven Mounting Bracket
