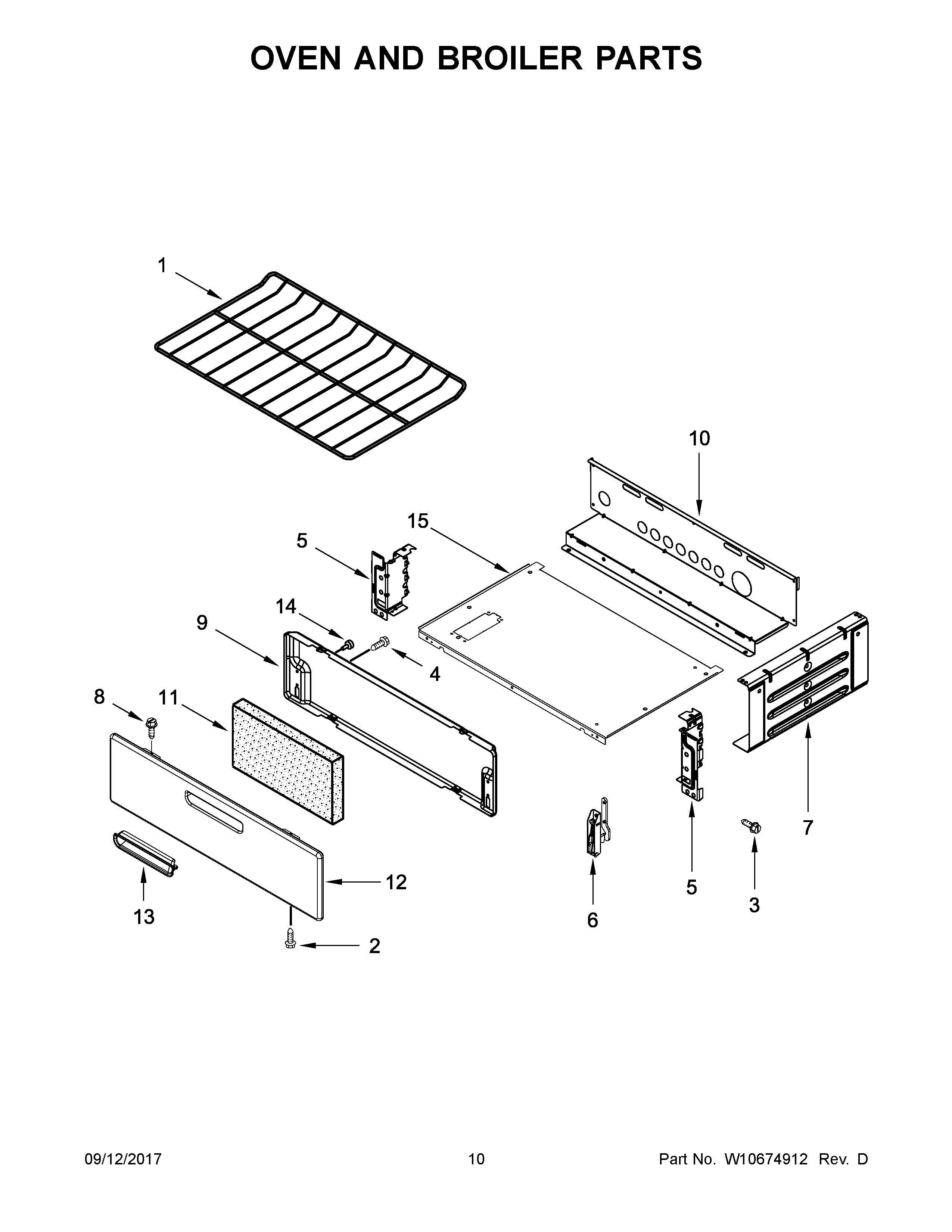

AGR4230BAB0 06 – OVEN AND BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2SCREW
3SCREW (BLACK)
4SCREW
5COVER, BROILER LEFT
5ACOVER, BROILER RIGHT
6HINGE
7PANEL, SIDE
8SCREW (BLACK)
9LINER, BROILER DRAWER
10BACK COVER, BROILER
11INSULATION, BROILER DOOR
12APANEL, BROILER DOOR (BLACK)
12PANEL, BROILER DOOR (WHITE)
13AHANDLE, BROILER DOOR (BLACK)
13HANDLE, BROILER DOOR (WHITE)
14MAY 98004052
15BAFFLE, BASE
