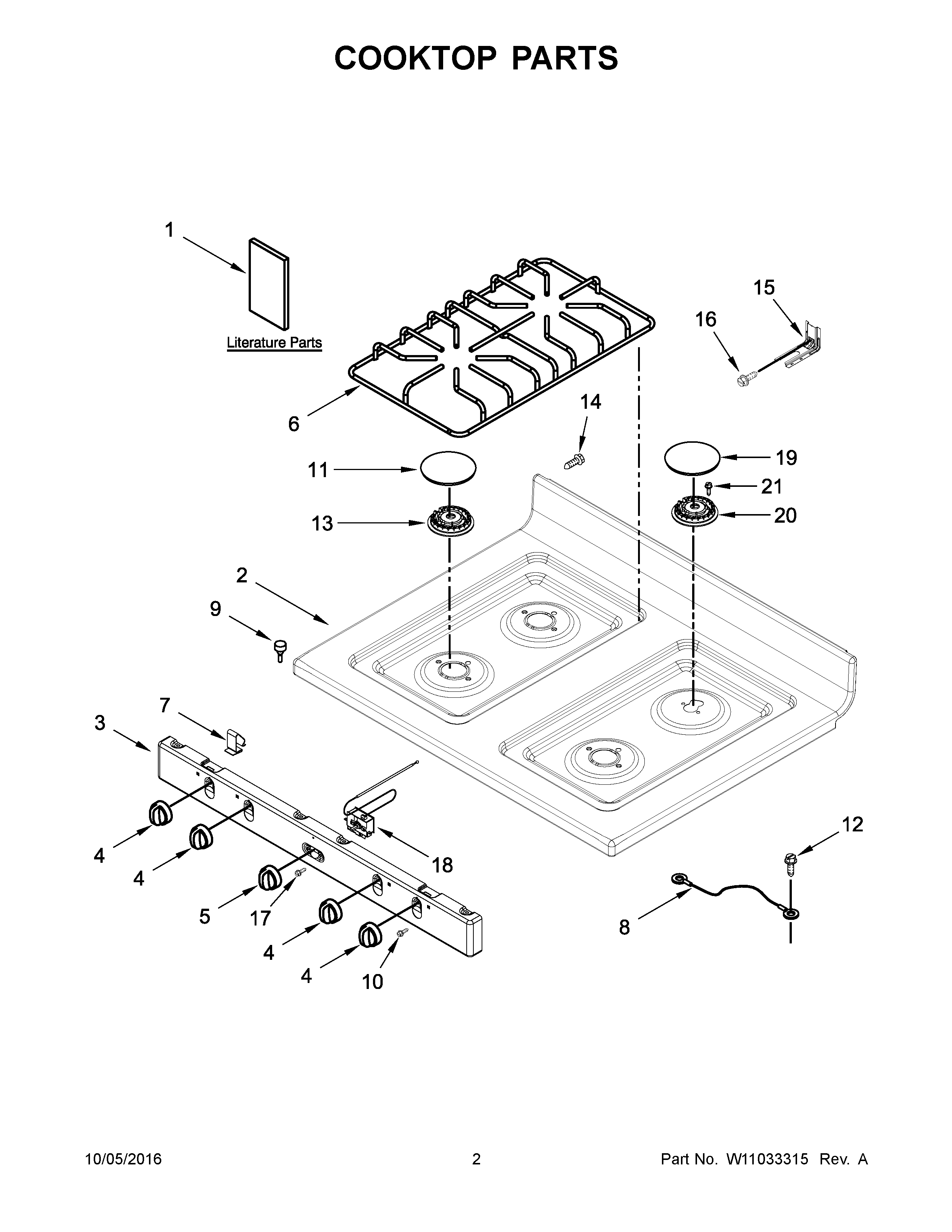

AGR4230BAB1 02 – COOKTOP PARTS

AGR4230BAB1 02 – COOKTOP PARTS

Written by

in

AGR4230BAB1 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10556705
NIPAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2))
NIMAY 98005894
NIMAY 98005896
NICLIP, HARNESS
NIMAY 3391018
NILINER (NOT A SERVICEABLE PART)
1AMAY W10620422
1CMAY 98007032
1MAY W10821262
1BTIPS, SAFE COOKING (ENGLISH)
2ACOOKTOP (WHITE)
2COOKTOP (BLACK)
3AMAY W10620542
3MAY W10620544
4AKNOB, BURNER (WHITE)
4KNOB, BURNER (BLACK)
5MAY W10615601
5AMAY W10615600
6GRATE, BURNER (BLACK)
7CLIP, COOKTOP
8MAY 98014544
9MAY 98013389
10SCREW (STAINLESS)
11Cap, Burner (Black)
12WIRING HARNESS PARTS, SCREW, GROUND
13BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RIGHT FRONT)
14MAY 98007225
15BRACKET, ANTI-TIP
16SCREW, ANTI-TIP KIT
17SCREW
18MAY W10636339
19CAP, BURNER (BLACK (1))
20ASSEMBLY, BURNER (6K) (RIGHT REAR)
21SCREW
