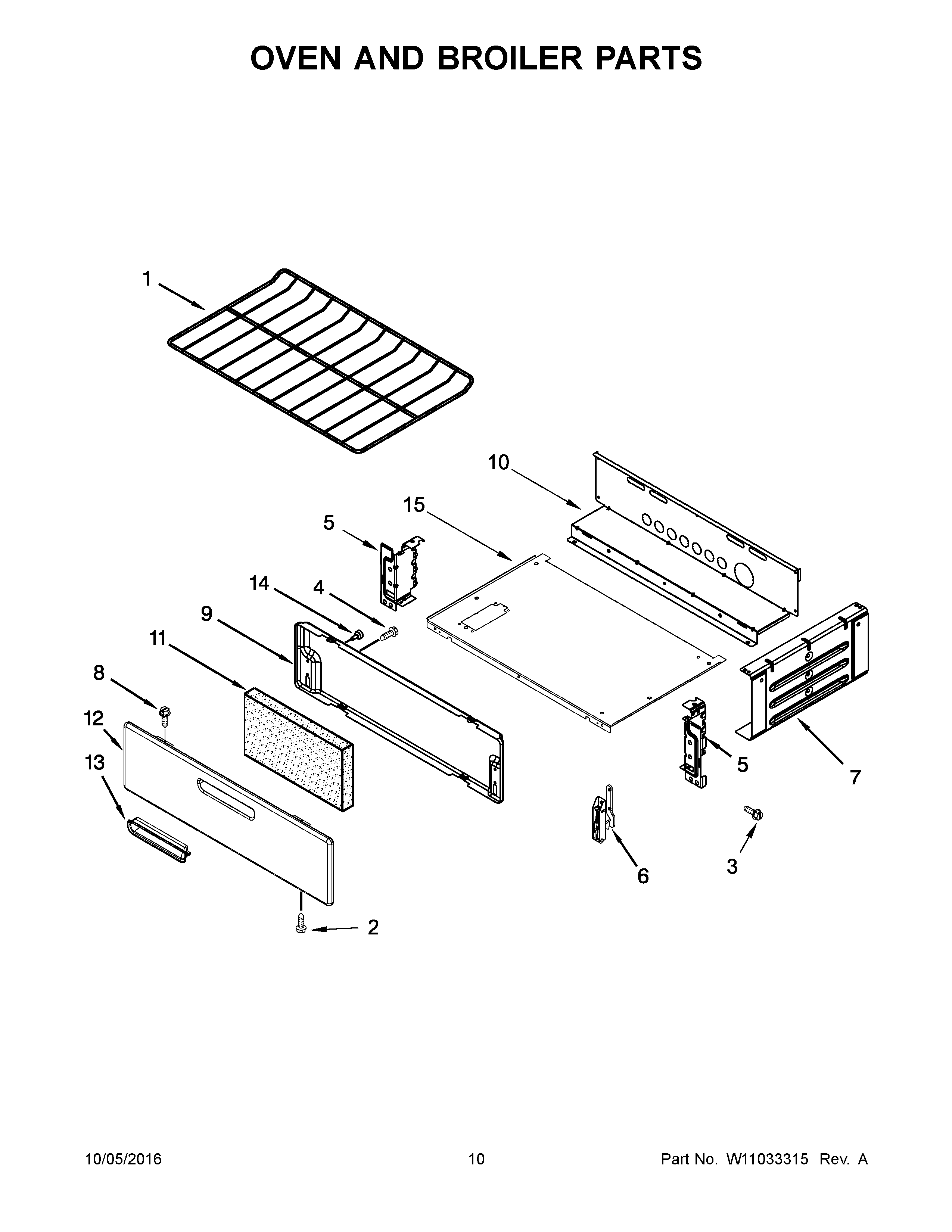

AGR4230BAB1 06 – OVEN AND BROILER PARTS

AGR4230BAB1 06 – OVEN AND BROILER PARTS

Written by

in

AGR4230BAB1 06 – OVEN AND BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	SCREW
3	SCREW (BLACK)
4	SCREW
5	COVER, BROILER LEFT
5A	COVER, BROILER RIGHT
6	HINGE
7	PANEL, SIDE
8	SCREW (BLACK)
9	LINER, BROILER DRAWER
10	BACK COVER, BROILER
11	INSULATION, BROILER DOOR
12A	MAY W10483323
12	MAY W10393899
13	HANDLE, BROILER DOOR (BLACK)
13A	HANDLE, BROILER DOOR (WHITE)
14	MAY 98004052
15	BAFFLE, BASE
