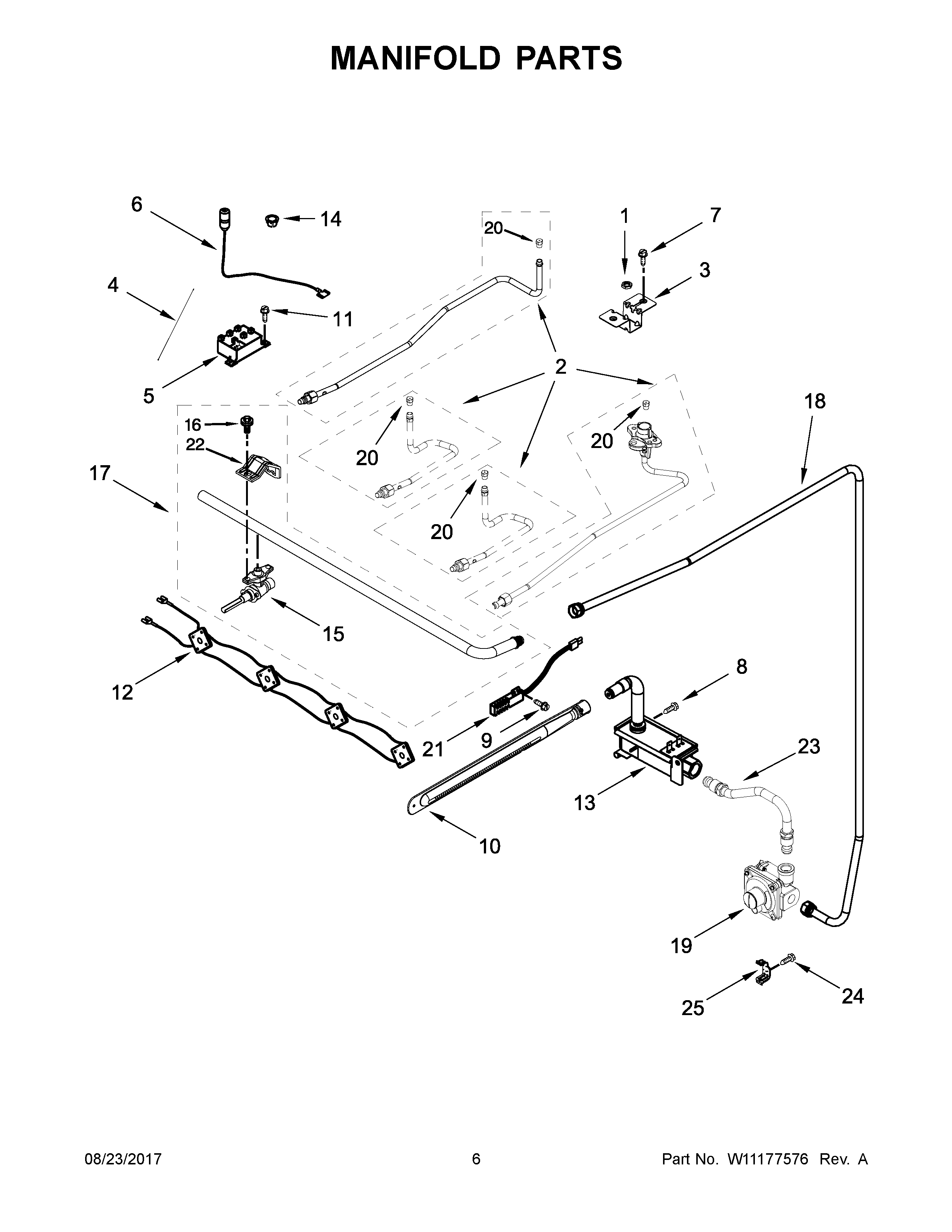

AGR4230BAB2 04 – MANIFOLD PARTSadmin2025-04-26T12:24:04+00:00AGR4230BAB2 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY W10820987 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | NUT |
| 2A | ASSEMBLY, TUBING (LEFT REAR) |
| 2B | ASSEMBLY, TUBING (RIGHT FRONT) |
| 2C | ASSEMBLY, TUBING (RIGHT REAR) |
| 2 | MAY W10543959 |
| 3 | BRKT., VENTURI |
| 4 | CABLE, SPARK (BLACK) |
| 5 | MAY 6610341 |
| 6 | IGNITOR, TOP (RF, RR, LF) |
| 6A | IGNITOR, TOP (LEFT REAR) |
| 7 | MAY W10146346 |
| 8 | MAY 98013634 |
| 9 | MAY 98005659 |
| 10 | BURNER, OVEN |
| 11 | SCREW |
| 12 | HARNESS, SWITCH |
| 13 | MAY 98014893 |
| 14 | MAY W10278150 |
| 15A | VALVE, SADDLE (RIGHT REAR) |
| 15 | VALVE, BURNER (LF, LR, RF, RR) |
| 16 | MAY 98017517 |
| 17 | MAY W10819261 |
| 18 | TUBING, MANIFOLD TO REGULATOR |
| 19 | REGULATOR |
| 20A | ORIFICE, NATURAL (5K) (RIGHT REAR) |
| 20 | Orifice (RF, RR, LR) |
| 21 | IGNITER, HOT SURFACE |
| 22 | BRACKET, VALVE |
| 23 | TUBING (REGULATOR TO OVEN VALVE) |
| 24 | MAY 98007225 |
| 25 | MAY 98007410 |
