AGR4230BAW0 02 – COOKTOP PARTS

AGR4230BAW0 02 – COOKTOP PARTS

Written by

in

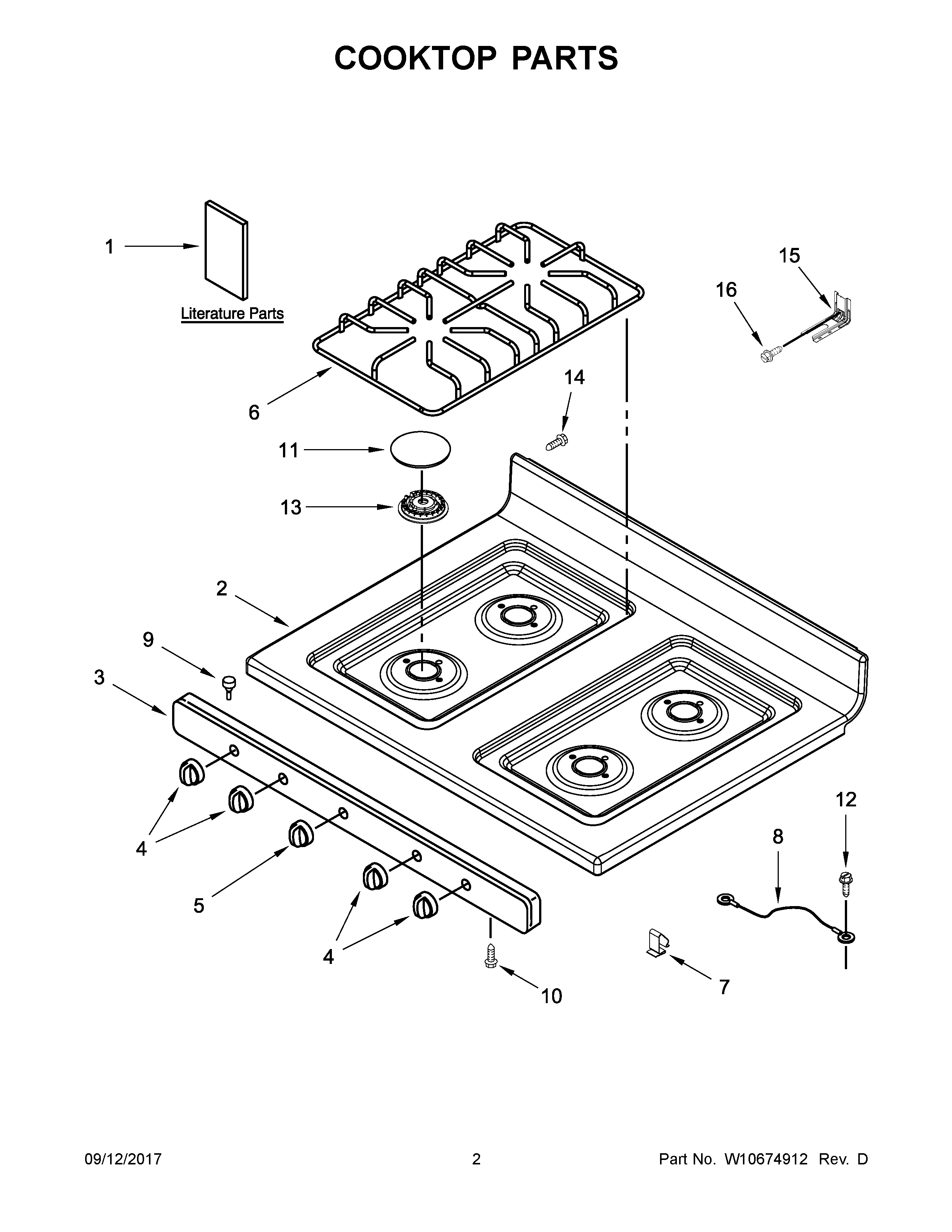

AGR4230BAW0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10556705
NIPAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2))
NIMAY 98005894
NIMAY 98005896
NILINER (NOT A SERVICEABLE PART)
NICLIP, HARNESS
NIMAY 3391018
1CMAY 98007032
1AMAY W10620422
1INSTRUCTIONS, INSTALLATION
1BTIPS, SAFE COOKING (ENGLISH)
2MAY W10535684
2AMAY W10535686
3MAY W10620542
3AMAY W10620544
4KNOB, BURNER (WHITE)
4AKNOB, BURNER (BLACK)
5MAY W10615600
5AMAY W10615601
6GRATE, BURNER (BLACK)
7CLIP, COOKTOP
8MAY 98014544
9MAY 98013389
10SCREW
11Cap, Burner (Black)
12WIRING HARNESS PARTS, SCREW, GROUND
13BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RIGHT FRONT)
14MAY 98007225
15BRACKET, ANTI-TIP
16SCREW, ANTI-TIP KIT
