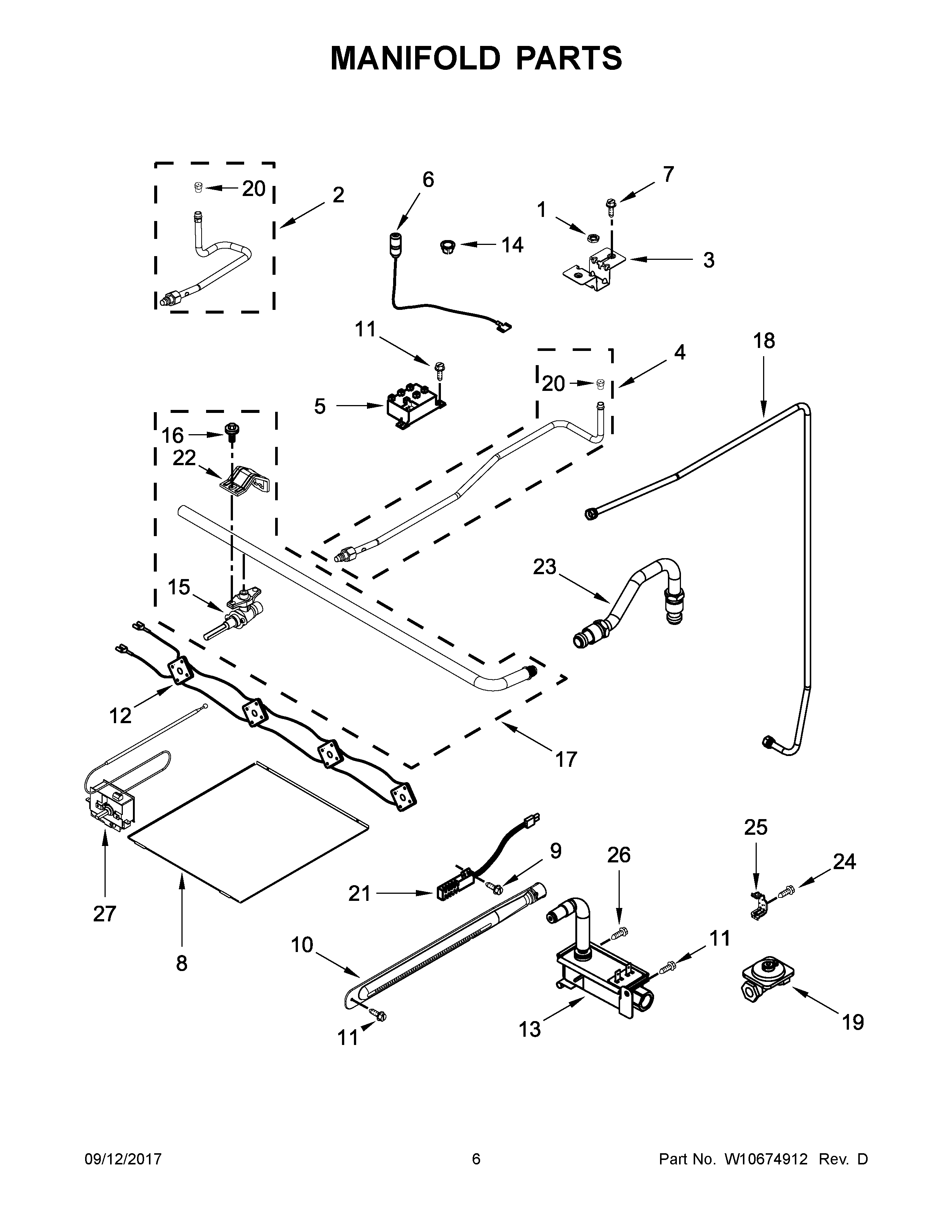

AGR4230BAW0 04 – MANIFOLD PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10032010
1	NUT
2A	ASSEMBLY, TUBING (RIGHT FRONT)
2	MAY W10543959
3	BRKT., VENTURI
4	ASSEMBLY, TUBING (LEFT REAR)
4A	MAY W10544971
5	MAY 6610341
6A	IGNITOR, TOP (LEFT REAR)
6	IGNITOR, TOP (RF, RR, LF)
7	MAY W10146346
8	SPREAD, FLAME (BAKE)
9	MAY 98005659
10	BURNER, OVEN
11	SCREW
12	HARNESS, SWITCH
13	MAY 98014893
14	MAY W10278150
15	VALVE, BURNER (LF, LR, RF, RR)
16	MAY 98017517
17	ASSEMBLY, MANIFOLD
18	TUBING, MANIFOLD TO REGULATOR
19	REGULATOR
20	Orifice (RF, RR, LR)
21	Igniter, Oven Oven Pilot)
22	BRACKET, VALVE
23	TUBING (REGULATOR TO OVEN VALVE)
24	MAY 98007225
25	MAY 98007410
26	MAY 98013634
27	MAY W10636339
