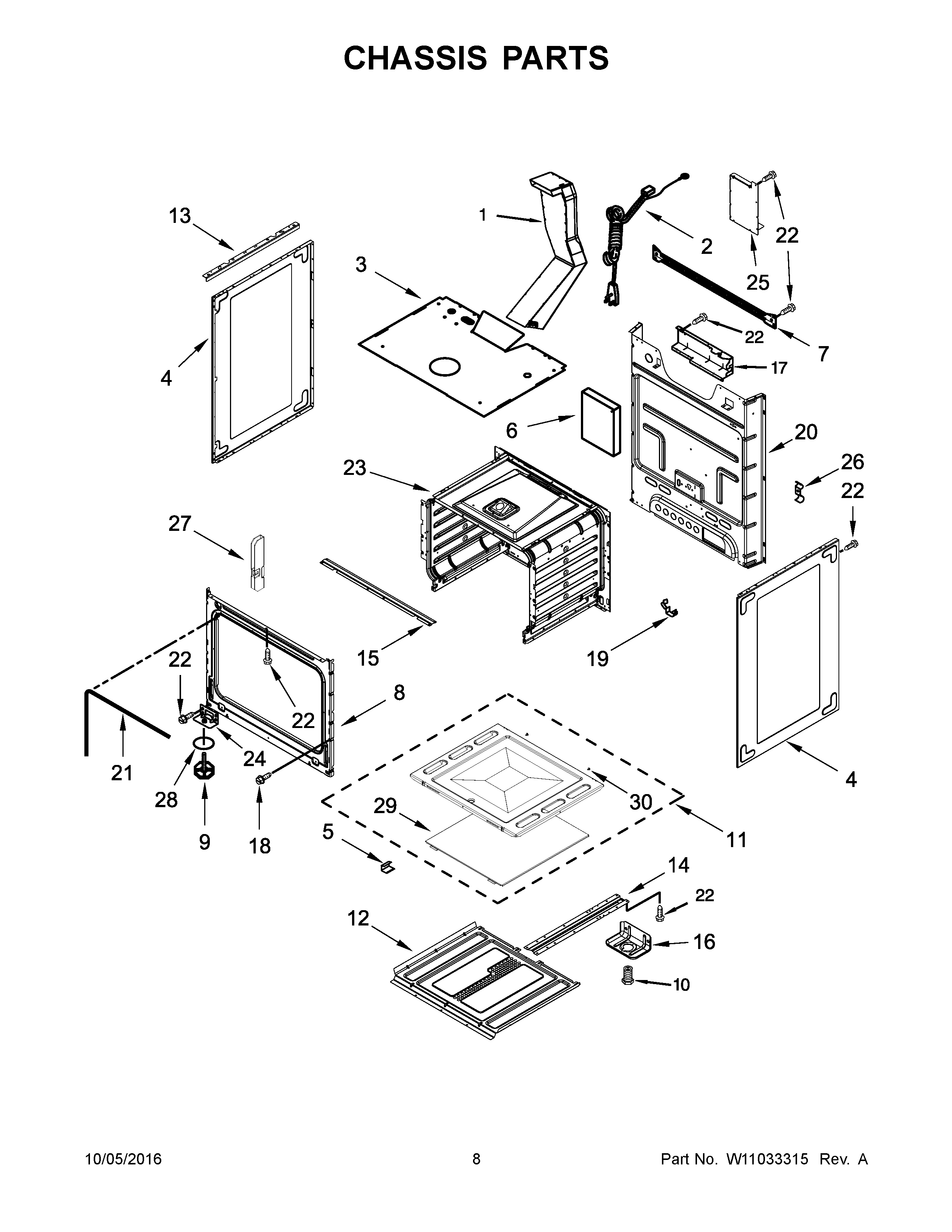

AGR4230BAW1 05 – CHASSIS PARTS

AGR4230BAW1 05 – CHASSIS PARTS

Written by

in

AGR4230BAW1 05 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, UPPER
NI	WIRE TIE, INSULATION
NI	INSULATION, WRAP
1	BOX, FLUE
2	CORD, POWER
3	MAY W10164110
4	PANEL, SIDE (BLACK (LEFT))
4A	PANEL, SIDE (BLACK (RIGHT))
4C	PANEL, SIDE (WHITE (RIGHT))
4B	PANEL, SIDE (WHITE (LEFT))
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY 98015363
9	FOOT, LEVELING (FRONT)
10	FOOT, LEVELING
11	ASSEMBLY, OVEN BOTTOM
12	DEFLECTOR, OVEN
13	SUPPORT, SIDE PANEL
14	RAIL, BASE
15	BRACKET, MANIFOLD
16	BRACKET, FOOT
17	COVER, VALVE
18	SCREW (BLACK)
19	CLIP, THERM BULB
20	BACK, MAIN
21	SEAL, OVEN
22	SCREW
23	LINER (NOT A SERVICEABLE PART)
24	BASE, FOOT
25	COVER
26	CLIP, TUBING
27	HINGE, COUNTER SUPPORT
28	SPACER
29	SPREAD, FLAME (BAKE)
30	SCREW (BLACK)
