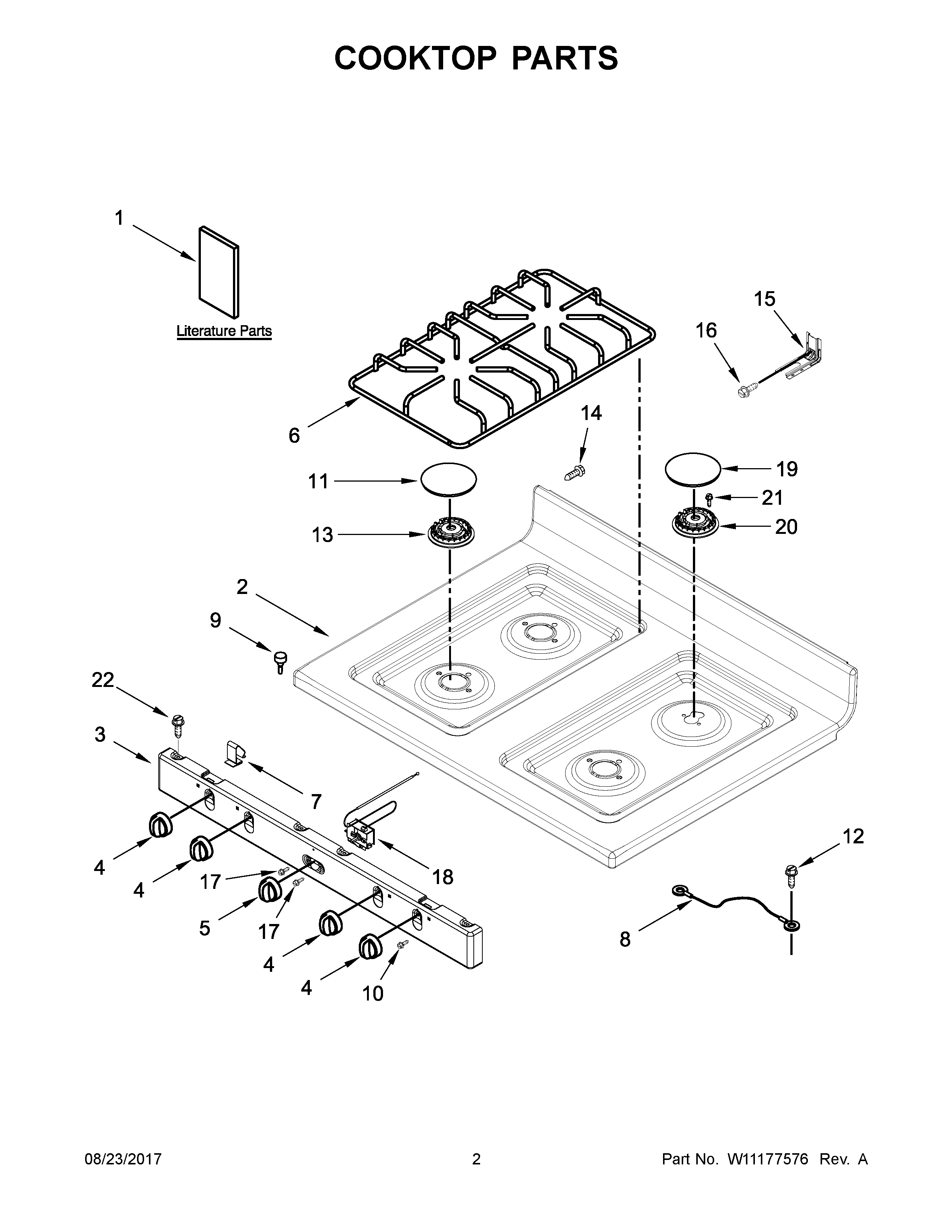

AGR4230BAW2 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10914402
NI	MAY 3391018
NI	MAY 98005896
NI	LINER (NOT A SERVICEABLE PART)
NI	PAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2))
1C	MAY 98007032
1A	MAY W10620422
1	MAY W10821262
1B	TIPS, SAFE COOKING (ENGLISH)
2	COOKTOP (BLACK)
2A	COOKTOP (WHITE)
3	MAY W10620544
3A	MAY W10620542
4	KNOB, BURNER (BLACK)
4A	KNOB, BURNER (WHITE)
5A	MAY W10615600
5	MAY W10615601
6	GRATE, BURNER (BLACK)
7	CLIP, COOKTOP
8	MAY 98014544
9	MAY 98013389
10A	SCREW (STAINLESS)
10	SCREW (BLACK)
11	Cap, Burner (Black)
12	WIRING HARNESS PARTS, SCREW, GROUND
13	BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RIGHT FRONT)
14	MAY 98007225
15	BRACKET, ANTI-TIP
16	SCREW, ANTI-TIP KIT
17	SCREW
18	MAY W10636339
19	CAP, BURNER (BLACK (1))
20	ASSEMBLY, BURNER (6K) (RIGHT REAR)
21	SCREW
22	SCREW
