AGR4230BAW2 06 – OVEN AND BROILER PARTS

AGR4230BAW2 06 – OVEN AND BROILER PARTS

Written by

in

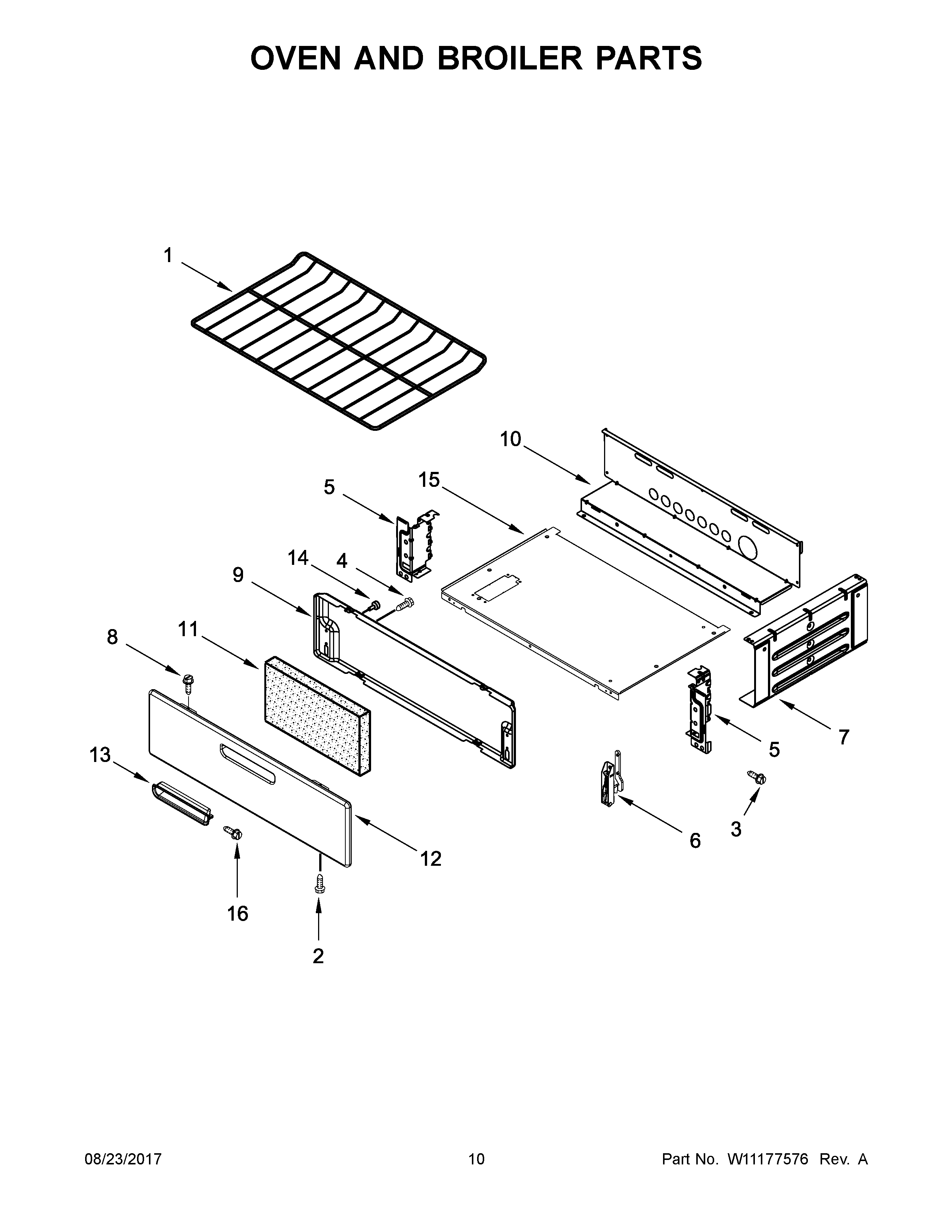

AGR4230BAW2 06 – OVEN AND BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	SCREW
3	SCREW (BLACK)
4	SCREW
5	COVER, BROILER LEFT
5A	COVER, BROILER RIGHT
6	HINGE
7	PANEL, SIDE
8	SCREW (BLACK)
9	LINER, BROILER DRAWER
10	BACK COVER, BROILER
11	INSULATION, BROILER DOOR
12A	PANEL, BROILER DOOR (WHITE)
12	PANEL, BROILER DOOR (BLACK)
13	HANDLE, BROILER DOOR (BLACK)
13A	HANDLE, BROILER DOOR (WHITE)
14	MAY 98004052
15	BAFFLE, BASE
16	SCREW
