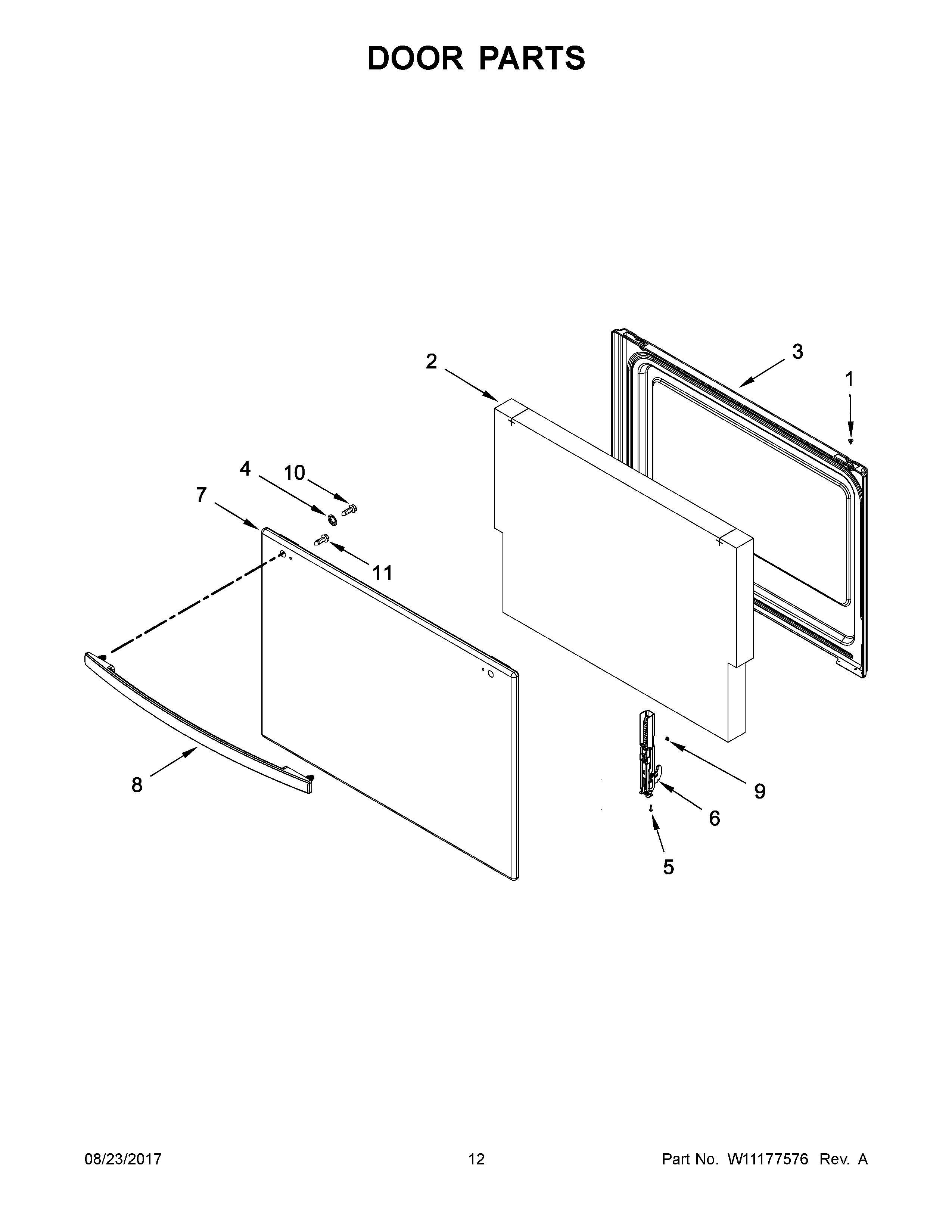

AGR4230BAW2 07 – DOOR PARTS
Products
| Position | Product |
|---|---|
| 1 | SCREW (BLACK) |
| 1A | SCREW (WHITE) |
| 2 | MAY W10535750 |
| 3 | MAY W10535761 |
| 4 | NUT, PUSH |
| 5 | MAY W10146346 |
| 6 | MAY W10535789 |
| 7 | MAY W10535784 |
| 7A | MAY W10535785 |
| 8A | MAY W10535774 |
| 8 | MAY W10535762 |
| 9 | SCREW |
| 10 | SCREW |
| 11 | SCREW |
