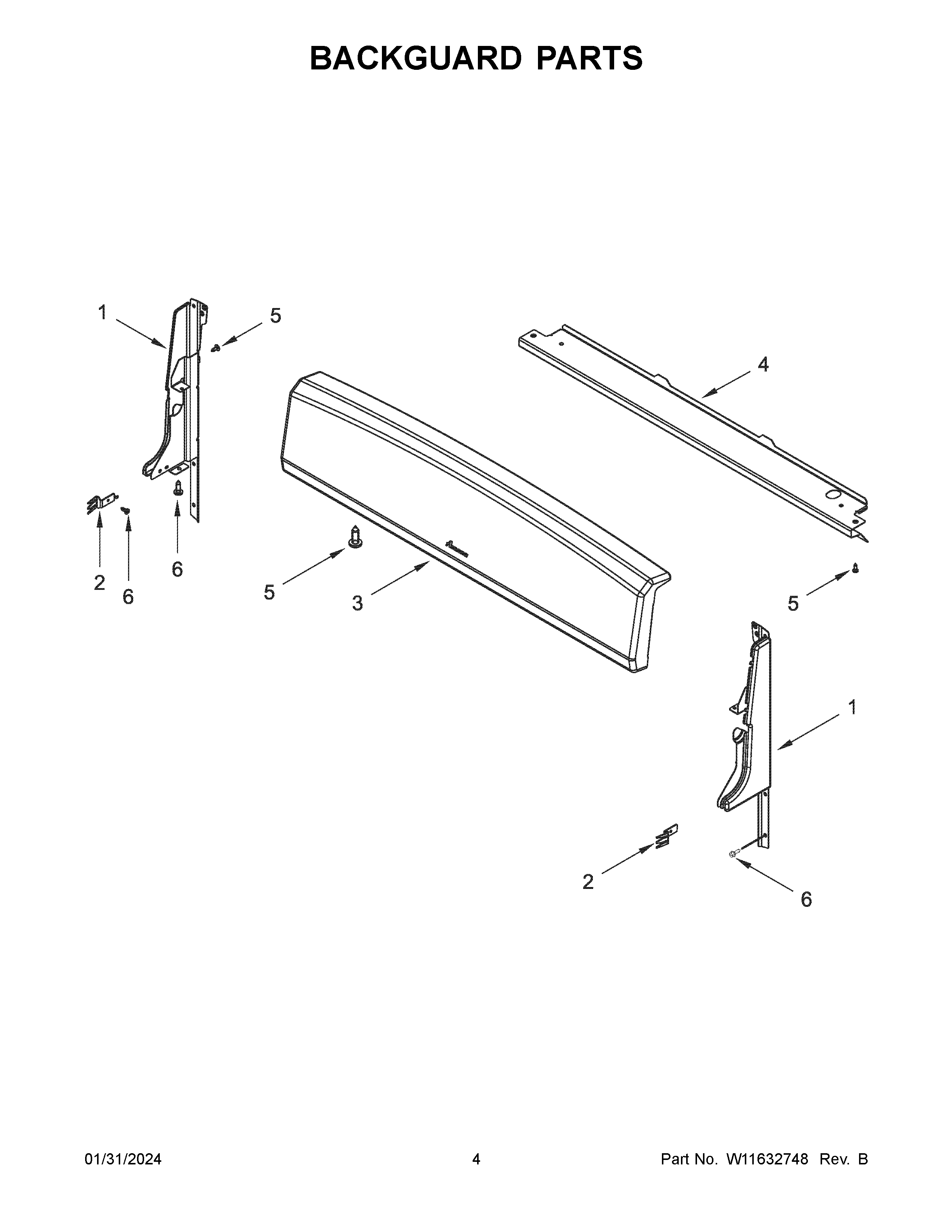

AGR4230BAW5 03 – BACKGUARD PARTS

Written by

Products

Position	Product
1A	W10873438 Whirlpool Endcap Panel
1	W10873109 Whirlpool Endcap Panel
1C	W10873441 Whirlpool Panel Endcap
1B	W10873107 Whirlpool Panel Endcap
2	W10535815 Whirlpool Mounting Bracket
3	PANL-CNTRL
3A	BACKGUARD (WHITE)
4	W10535746 Whirlpool Deflector
5	WP98008545 Whirlpool Screw
5A	WP98008544 Whirlpool Screw Assembly
6	W10837731 Whirlpool Screw Assembly
