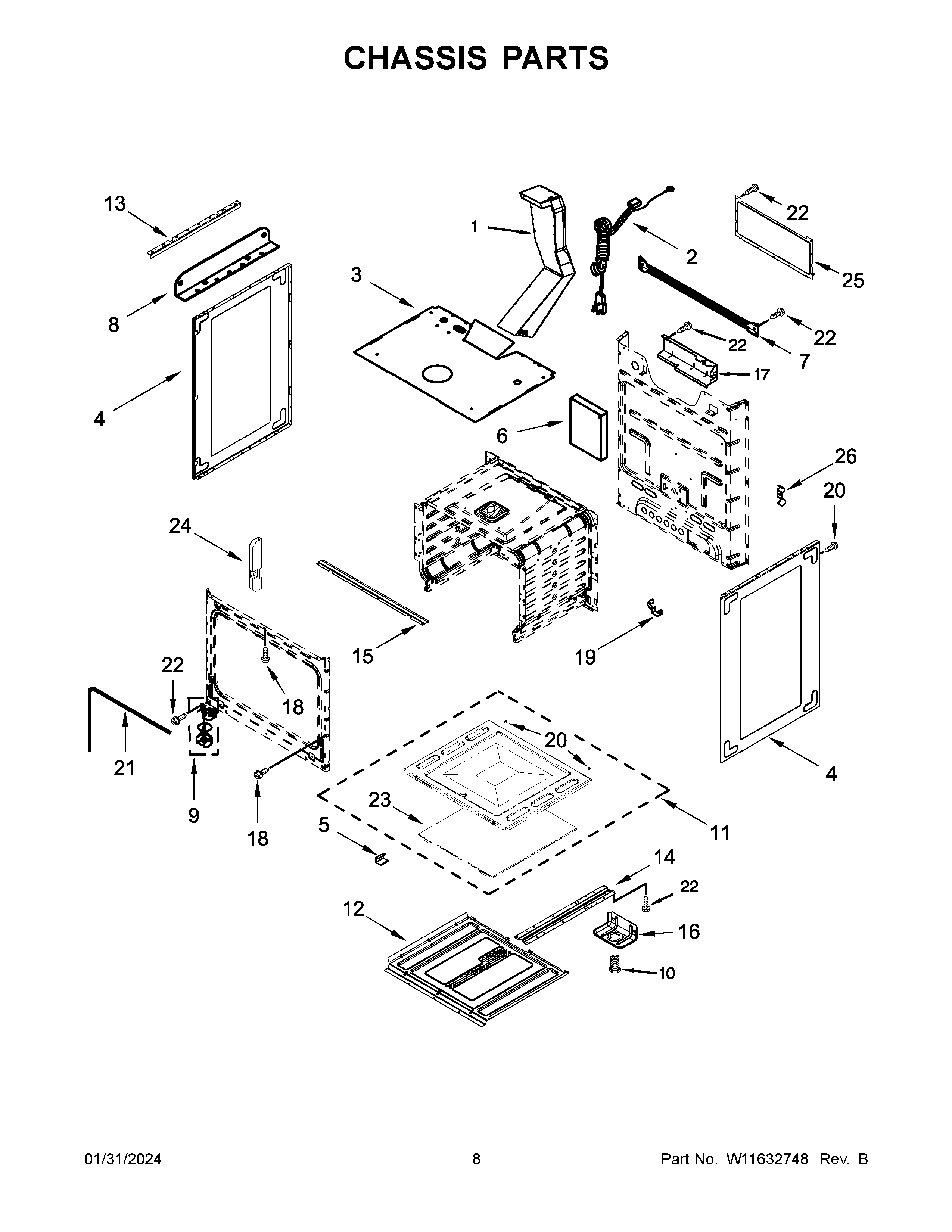

AGR4230BAW5 05 – CHASSIS PARTS

Products

Position	Product
NI	W11688850 Whirlpool Insulation
NI	98004294 Whirlpool Insulation Wire
NI	W10537475 Whirlpool Insulation
NI	INSULATION
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	BOX, FLUE
2	W11173616 Whirlpool Power Cord
3	SHIELD, INSULATION
4A	W10816993 Whirlpool Side Panel
4C	W10816996 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT (BLACK AND WHITE MODELS)
7	98015363 Whirlpool Oven Support
8	SIDE PANEL, SUPPORT
9	W10819918 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	W11098799 Whirlpool Oven Bottom Assembly
12	W10670197 Whirlpool Microwave Bottom Baffle
13	W10577312 Whirlpool Brace Panel
14	W10520269 Whirlpool Base Rail
15	W10545322 Whirlpool Support
16	BRACKET, FOOT
17	W10549293 Whirlpool Access Cover
18	WP98008545 Whirlpool Screw
19	98005642 Whirlpool Clip
20	WP3400832 Whirlpool Screw
21	GASKT-DOOR RANGE
22	W10837731 Whirlpool Screw Assembly
23	W11688713 Whirlpool Burner Baffle
24	W11161898 Whirlpool Hinge Receiver
25	COVER
26	CLIP, TUBING
