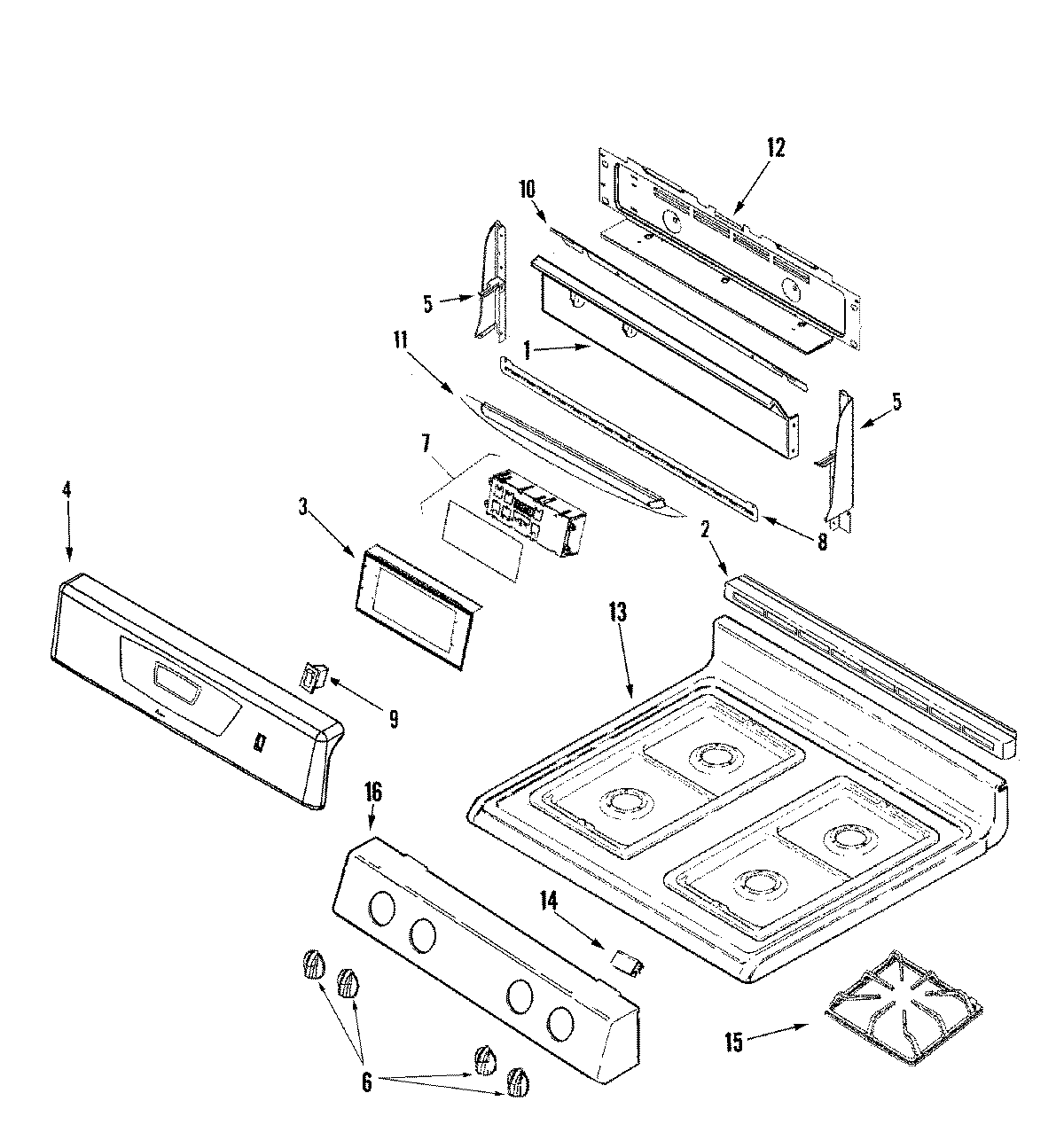

AGR4412ADB 02 – CONTROL PANEL/TOP ASSEMBLY

AGR4412ADB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AGR4412ADB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009779
1MAY 7101P147-60
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74009036
5MAY 74010201
5MAY 74010202
5WP98008545 Whirlpool Screw
6MAY 74008850
7MAY 74010415
7WP74003976 Whirlpool Screw
8MAY 74009780
9SWITCH, ROCKER (BLK)
10SCREW
10MAY 74009708
11MAY 74009801
11MAY 74009800
12MAY 74006536
12MAY 74009943
12MAY 71001394
12WP90767 Whirlpool Screw
13W11189172 Whirlpool Glide Drawer
13WP74005546 Whirlpool RU Spacer
13MAY 71003047
14MAY 74004827
15MAY 74001769
16MAY 74009827
