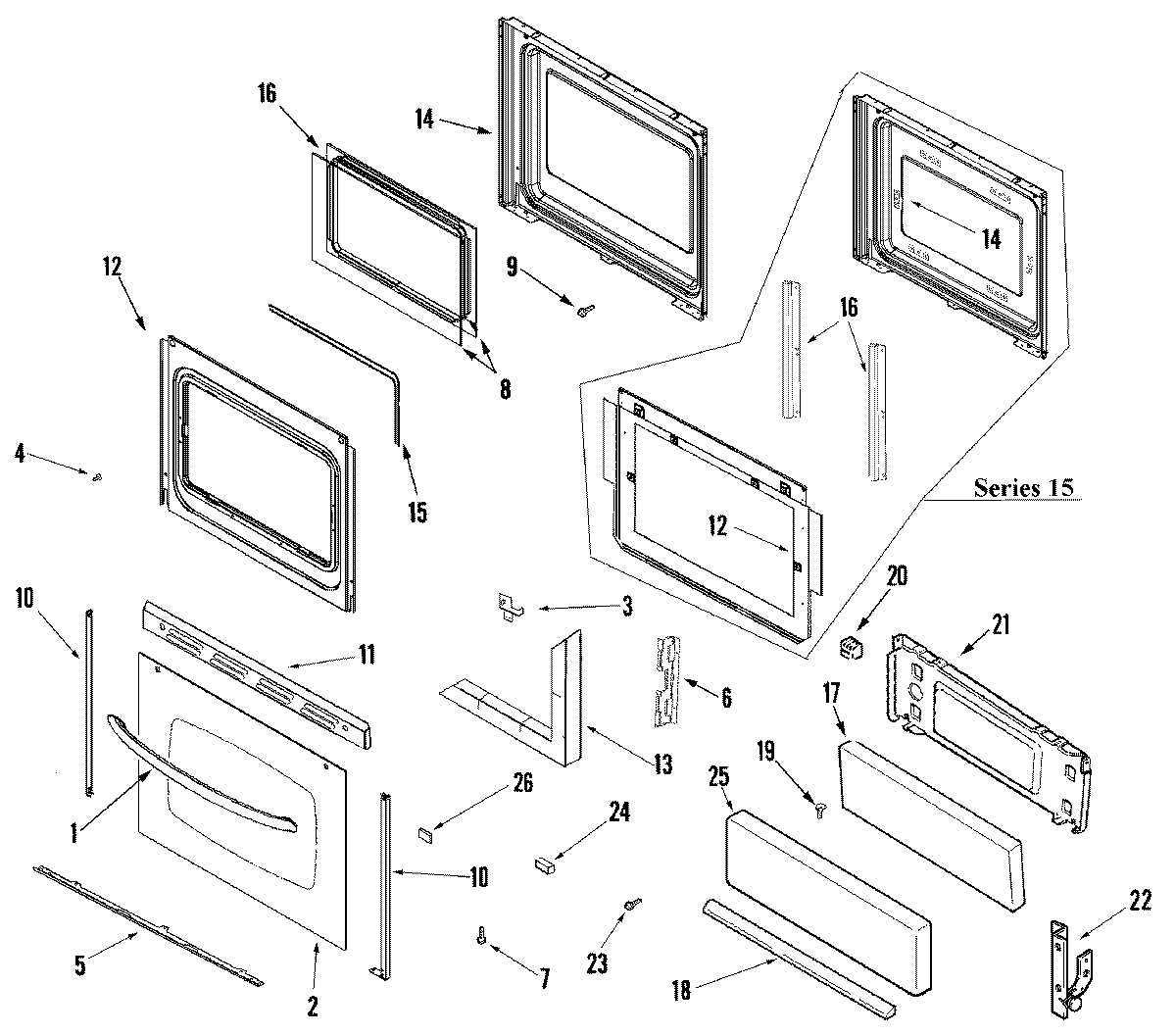

AGR4412ADB 03 – DOOR/DRAWER

AGR4412ADB 03 – DOOR/DRAWER

Written by

in

AGR4412ADB 03 – DOOR/DRAWER

Products

PositionProduct
1HANDLE, DOOR (BLK)
2MAY 74009734
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74003650
7WP98008545 Whirlpool Screw
874003645 Whirlpool Range Oven Door Inner Glass
10WP74009014 Whirlpool Double Tape
10WP3608F116-70 Whirlpool Door Trim
10WP3608F117-70 Whirlpool Door Trim
11MAY 74009689
123601F373-51 Whirlpool Baffle
12MAY 7101P356-60
12MAY 74009502
12SCREW
13INSULATION, OVEN DOOR
14LINING, OVEN DOOR
14MAY 74009909
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16FRAME, GLASS
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
17MAY 74001814
18WP2411F013-70 Whirlpool Door Handle
20MAY 74001663
21MAY 74007553
23MAY 74009897
24WP74005546 Whirlpool RU Spacer
25MAY 74002551
