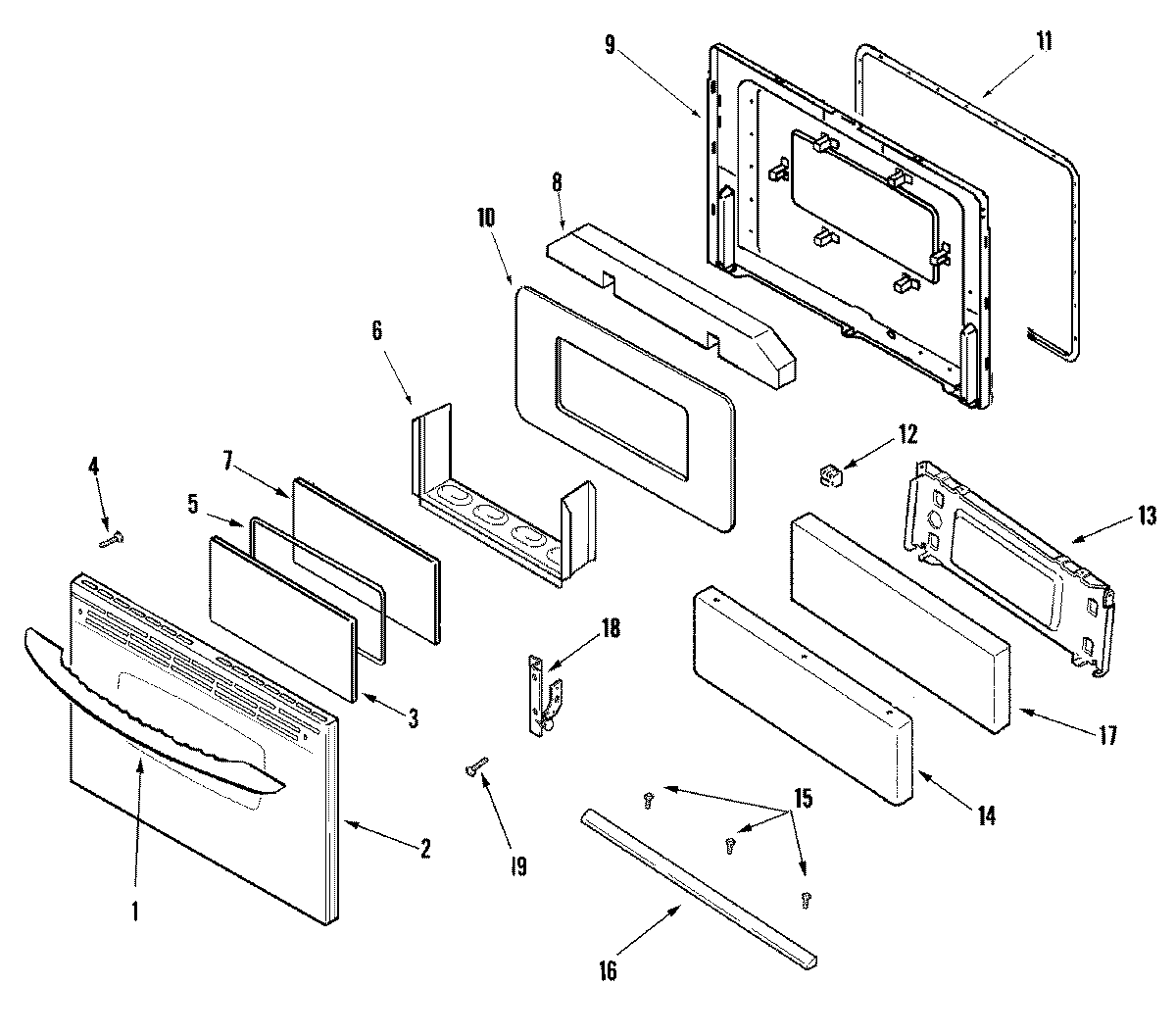

AGR4412ADS 03 – DOOR/DRAWER (STL)

AGR4412ADS 03 – DOOR/DRAWER (STL)

Written by

in

AGR4412ADS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
NIBAFFLE, OVEN DOOR
1HANDLE, DOOR (BLK)
2SCREW
2MAY 74009702
2MAY 74010297
2MAY 74010040
3MAY 74010416
4NUT, SNAP (ROUND-BLK)
4WP74006515 Whirlpool Washer Screw
5MAY 7201P017-60
6CLIP, DOOR
6MAY 74002462
7MAY 74002002
8MAY 74002458
9MAY 74005097
10MAY 74002461
10MAY 7101P209-60
11WP7212P043-60 Whirlpool Oven Door Seal Gasket
13MAY 74009909
14MAY 74009907
1674002481 Whirlpool Screw
16WP2411F013-70 Whirlpool Door Handle
17MAY 74001814
19MAY 74009897
20MAY 74001663
