AGR4412ADW 03 – DOOR/DRAWER

AGR4412ADW 03 – DOOR/DRAWER

Written by

in

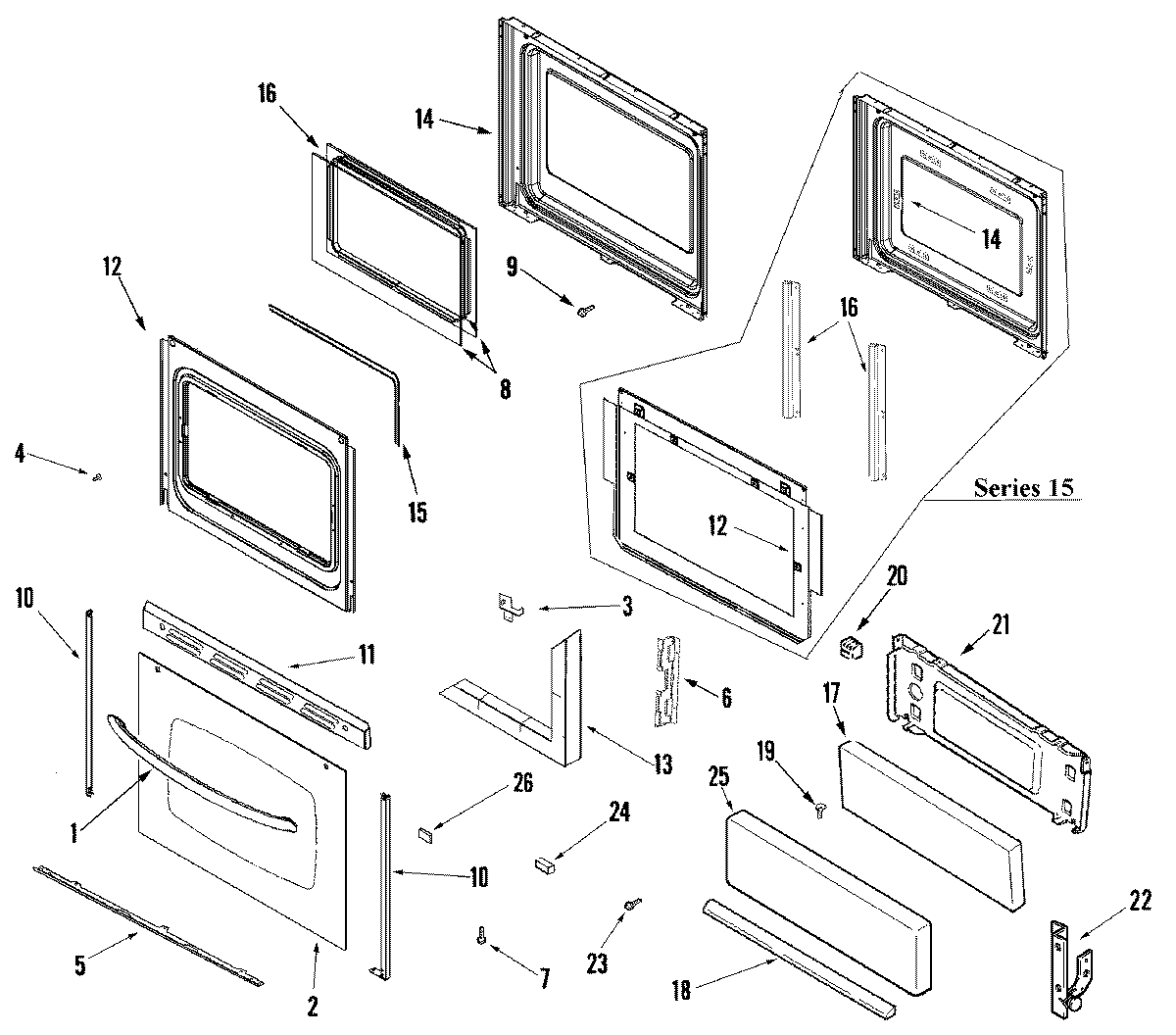

AGR4412ADW 03 – DOOR/DRAWER

Products

PositionProduct
1HANDLE, DOOR (WHT)
2MAY 74009732
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4WP98008545 Whirlpool Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7WP98008544 Whirlpool Screw Assembly
874003645 Whirlpool Range Oven Door Inner Glass
10WP74009014 Whirlpool Double Tape
10WP3608F117-71 Whirlpool Door Trim
10WP3608F116-71 Whirlpool Door Trim
11WP3608F141-71 Whirlpool Door Trim
12SCREW
12MAY 7101P356-60
123601F373-51 Whirlpool Baffle
12MAY 74009502
13INSULATION, OVEN DOOR
14LINING, OVEN DOOR
14MAY 74009909
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
16FRAME, GLASS
17MAY 74001814
18WP2411F013-71 Whirlpool Door Handle
20MAY 74001663
21MAY 74007553
23MAY 74009897
24WP74005546 Whirlpool RU Spacer
25MAY 74001729
