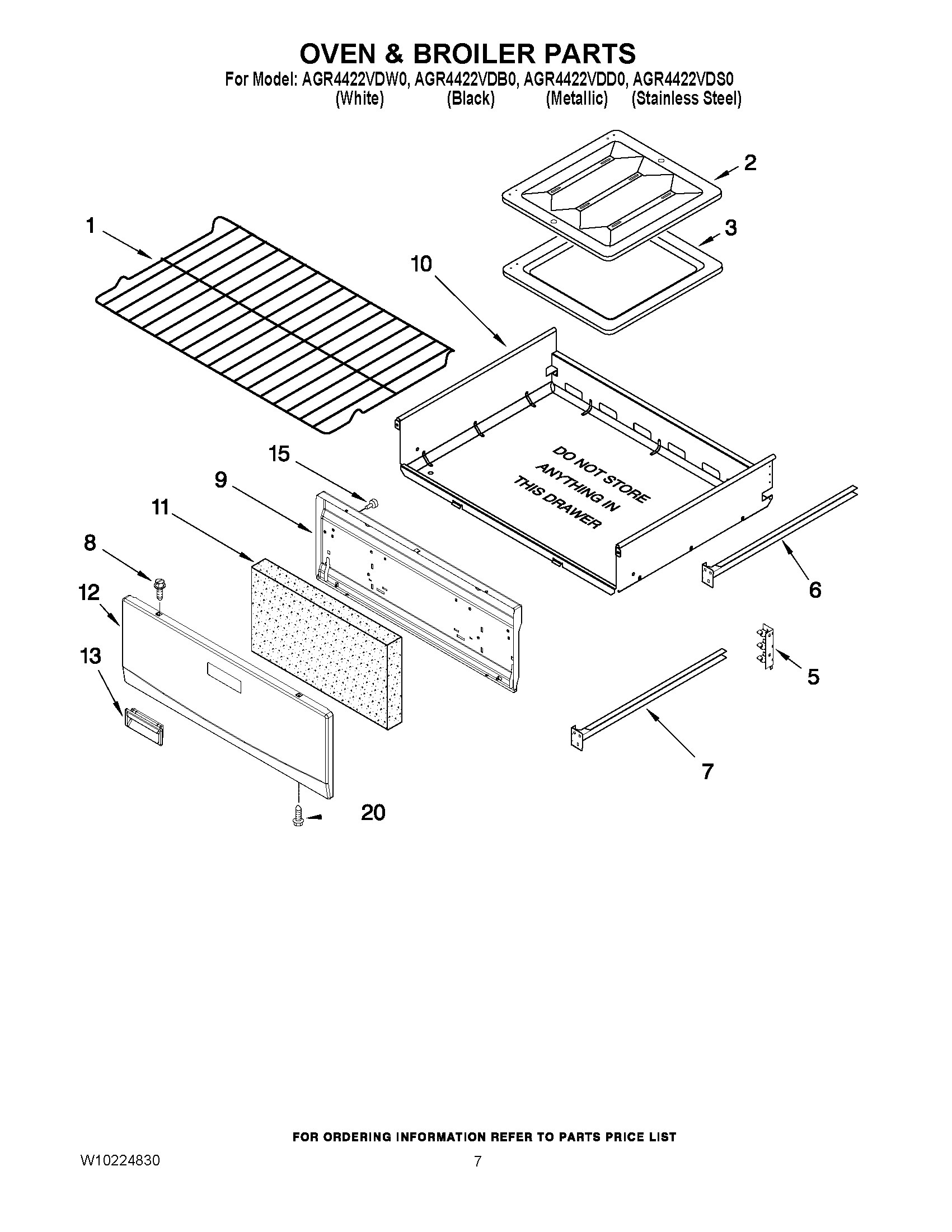

AGR4422VDB0 05 – OVEN & BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY 98003480
3MAY 98016005
5SUPPORT, TRAY (RIGHT)
5SUPPORT, TRAY (LEFT)
6GUIDE, FIXED (RIGHT)
6GUIDE, FIXED (LEFT)
7GUIDE, MOBILE (LEFT)
7GUIDE, MOBILE (RIGHT)
8SCREW (BLACK)
8SCREW (WHITE)
10Storage, Drawer
11MAY W10137230
12MAY W10175151
12MAY W10174742
12MAY W10174741
13Handle, Brlr Door (White)
13MAY 98015643
15MAY 98004052
20SCREW
