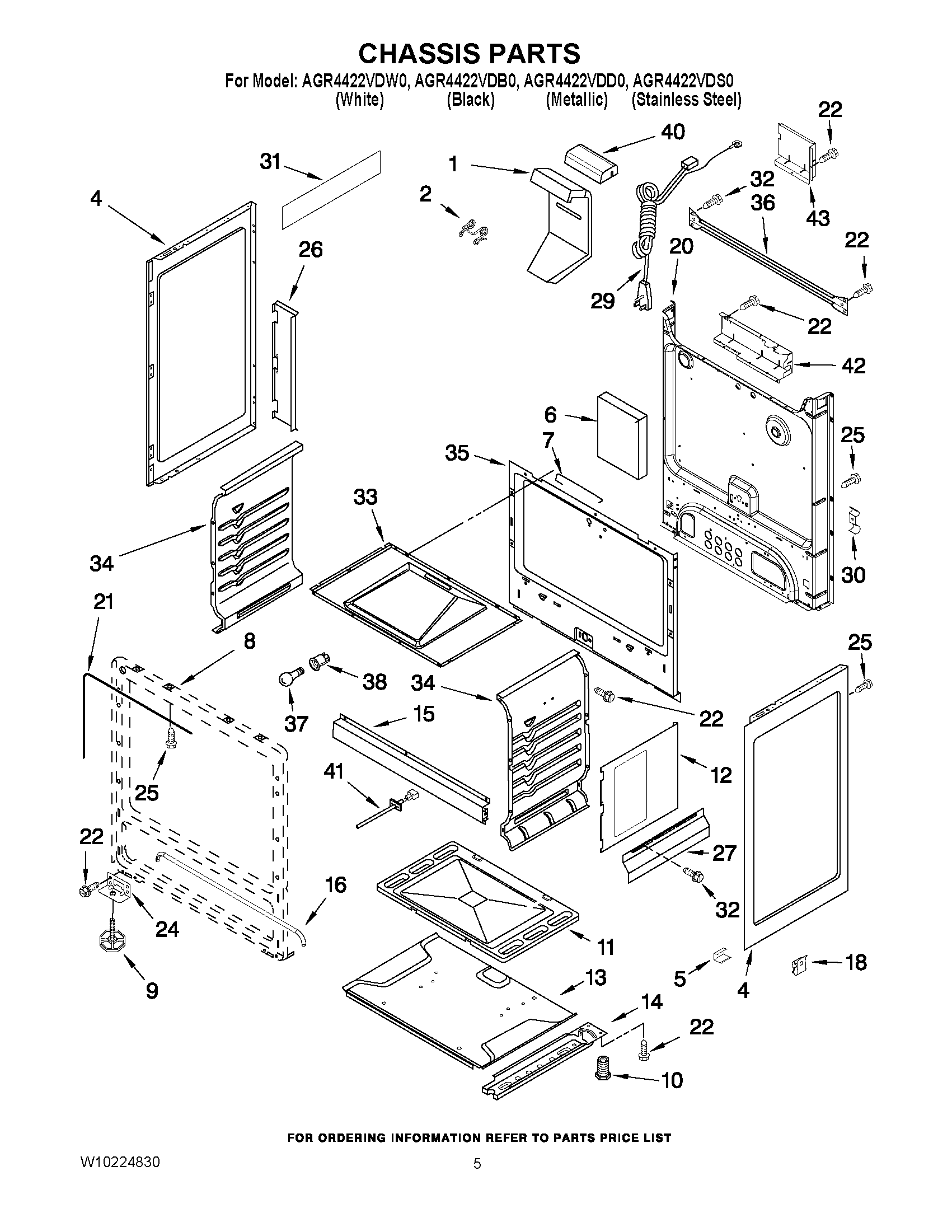

AGR4422VDD0 04 – CHASSIS PARTSadmin2025-04-26T12:27:18+00:00AGR4422VDD0 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10137227 |
| NI | MAY W10137233 |
| 1 | MAY 98003799 |
| 2 | SPRING, TORSION (FLUE BOX) |
| 4 | PANEL, SIDE (WHITE) |
| 4 | PANEL, SIDE (BLACK) |
| 5 | CLIP, OVEN BOTTON |
| 6 | COUNTERWEIGHT |
| 7 | MAY 98006739 |
| 8 | MAY W10166434 |
| 9 | FOOT, FRONT |
| 10 | FOOT, LEVELING |
| 11 | MAY 98004449 |
| 12 | BAFFLE, SIDE |
| 13 | MAY 98003847 |
| 14 | RAIL, BASE |
| 15 | MAY 98012175 |
| 16 | Gasket, Broil Door |
| 18 | U-NUT |
| 20 | MAY 98015100 |
| 21 | MAY 98017163 |
| 22 | SCREW |
| 24 | BASE, FOOT |
| 25 | SCREW |
| 26 | CHANNEL SHIELD |
| 27 | SHIELD, HEAT (LOWER) |
| 29 | CORD-POWER |
| 30 | CLIP, TUBING |
| 31 | FOIL, SIDE |
| 32 | Screw |
| 33 | MAY 98004447 |
| 34 | SIDE, OVEN (RIGHT HAND) |
| 34 | SIDE, OVEN (LEFT HAND) |
| 35 | MAY 98013777 |
| 36 | MAY 98015363 |
| 37 | BULB, LIGHT |
| 38 | SOCKET, LIGHT BULB |
| 40 | MAY 98007205 |
| 41 | SENSOR, OVEN |
| 42 | MAY 98014105 |
| 43 | Cover, Socket |
