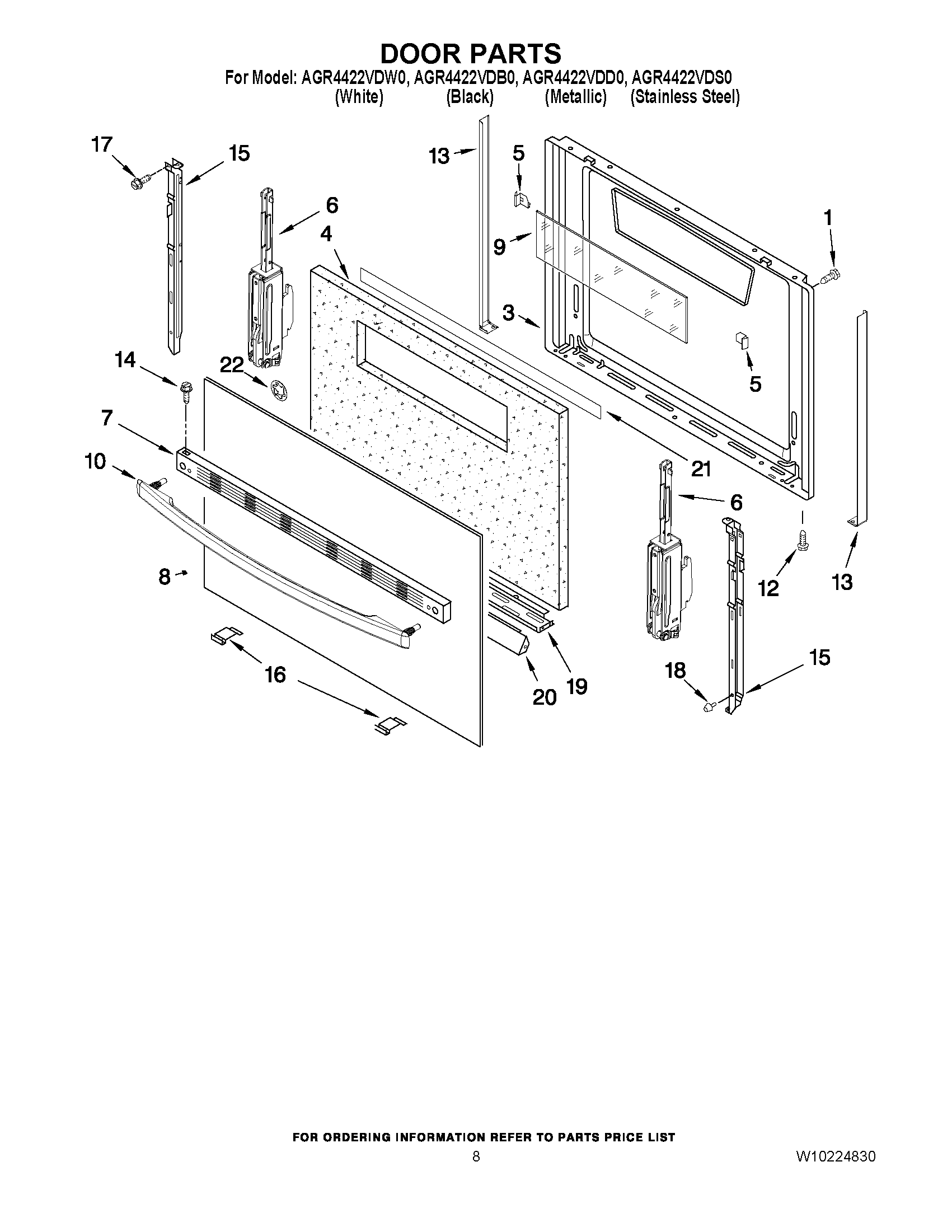

AGR4422VDD0 06 – DOOR PARTSadmin2025-04-26T12:25:56+00:00AGR4422VDD0 06 – DOOR PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORY PARTS, KIT, DOOR PIN |
| 1 | SCREW |
| 3 | MAY 98010182 |
| 4 | Insulation (Right) |
| 4 | Insulation (Left) |
| 4 | MAY W10137238 |
| 5 | CLIP, GLASS (RIGHT HAND) |
| 5 | CLIP, GLASS (LEFT HAND) |
| 6 | HINGE, DOOR |
| 7 | Trim, Top Door (Black & Metallic) |
| 7 | Trim, Top Door (White) |
| 8 | MAY W10174485 |
| 8 | MAY W10174486 |
| 9 | Glass, Inner |
| 10 | MAY 98004943 |
| 10 | MAY 98004942 |
| 12 | SCREW |
| 13 | Side Trim, Door(2) (White) |
| 13 | Side Trim, Door(2) (Black) |
| 14 | Screw, Handle (White) |
| 14 | SCREW (BLACK) |
| 15 | RETAINER (LEFT HAND) |
| 15 | RETAINER (RIGHT HAND) |
| 16 | TRIM, LOWER (BLACK) |
| 16 | TRIM, LOWER (WHITE) |
| 17 | SCREW |
| 18 | BUMPER |
| 19 | Insulation, Retainer-Top |
| 20 | Insulation, Retainer-Bottom |
| 21 | Retainer, Upper(2) |
| 22 | NUT, PUSH |
