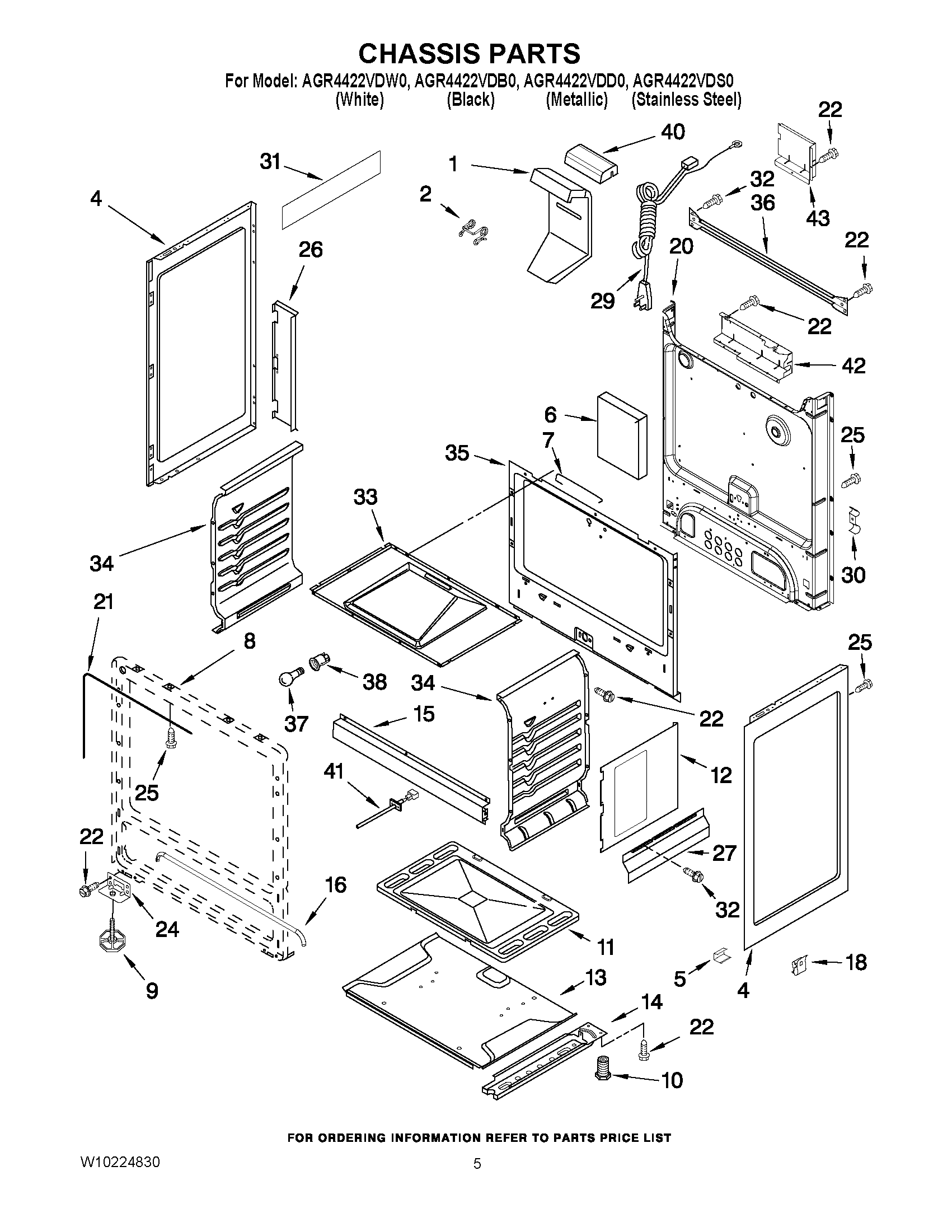

AGR4422VDS0 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10137227
NI	MAY W10137233
1	MAY 98003799
2	SPRING, TORSION (FLUE BOX)
4	PANEL, SIDE (WHITE)
4	PANEL, SIDE (BLACK)
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY 98006739
8	MAY W10166434
9	FOOT, FRONT
10	FOOT, LEVELING
11	MAY 98004449
12	BAFFLE, SIDE
13	MAY 98003847
14	RAIL, BASE
15	MAY 98012175
16	Gasket, Broil Door
18	U-NUT
20	MAY 98015100
21	MAY 98017163
22	SCREW
24	BASE, FOOT
25	SCREW
26	CHANNEL SHIELD
27	SHIELD, HEAT (LOWER)
29	CORD-POWER
30	CLIP, TUBING
31	FOIL, SIDE
32	Screw
33	MAY 98004447
34	SIDE, OVEN (RIGHT HAND)
34	SIDE, OVEN (LEFT HAND)
35	MAY 98013777
36	MAY 98015363
37	BULB, LIGHT
38	SOCKET, LIGHT BULB
40	MAY 98007205
41	SENSOR, OVEN
42	MAY 98014105
43	Cover, Socket
