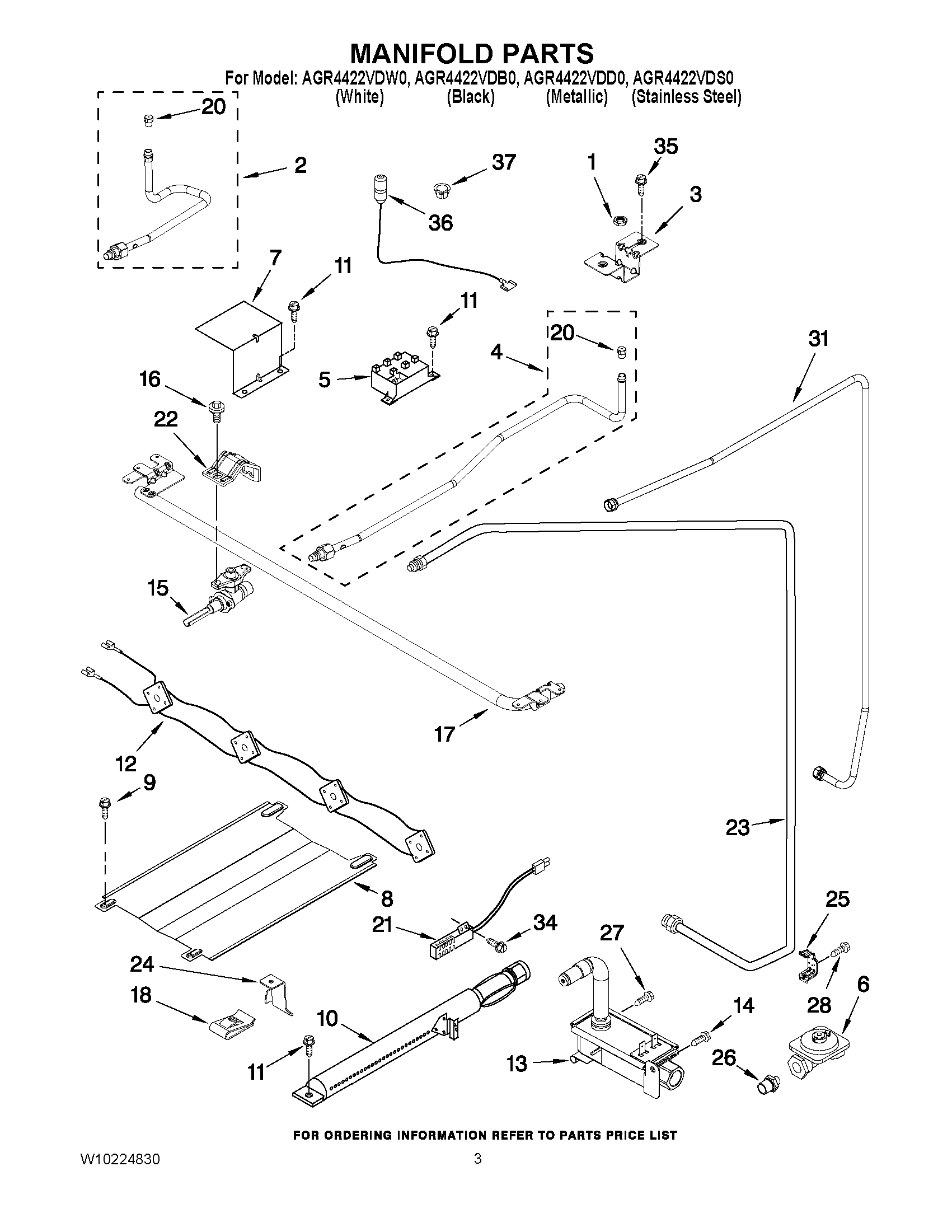

AGR4422VDW0 03 – MANIFOLD PARTS

Products

Position	Product
NI	LP Orifice Kit (For Use With LP)
1	NUT
2	VENTURI, FRONT (LF)
2	VENTURI, FRONT (RF)
3	BRACKET, VENTURI
4	VENTURI, REAR
5	MAY 6610341
6	MAY 98007411
7	MAY 98007192
8	SPREAD, FLAME (BAKE)
9	SCREW
10	MAY 98012138
12	MAY 98014545
13	MAY 98014893
14	SCREW
15	VALVE, BURNER (LF, LR, RF, RR)
16	MAY 98017517
17	MAY 98017556
18	U-NUT
20	MAY 98017349
20	Orifice (RF, RR, LR)
21	Igniter, Oven Oven Pilot)
22	BRACKET, VALVE
23	TUBING (REGULATOR TO OVEN VALVE)
24	MAY 98013314
25	MAY 98007410
26	MAY 98007431
27	MAY 98013634
28	Screw
31	Tubing, Inlet
34	MAY 98005659
35	MAY W10146346
36	IGNITOR, TOP (RF, RR, LF)
36	IGNITOR, TOP (LEFT REAR)
37	MAY 98015032
