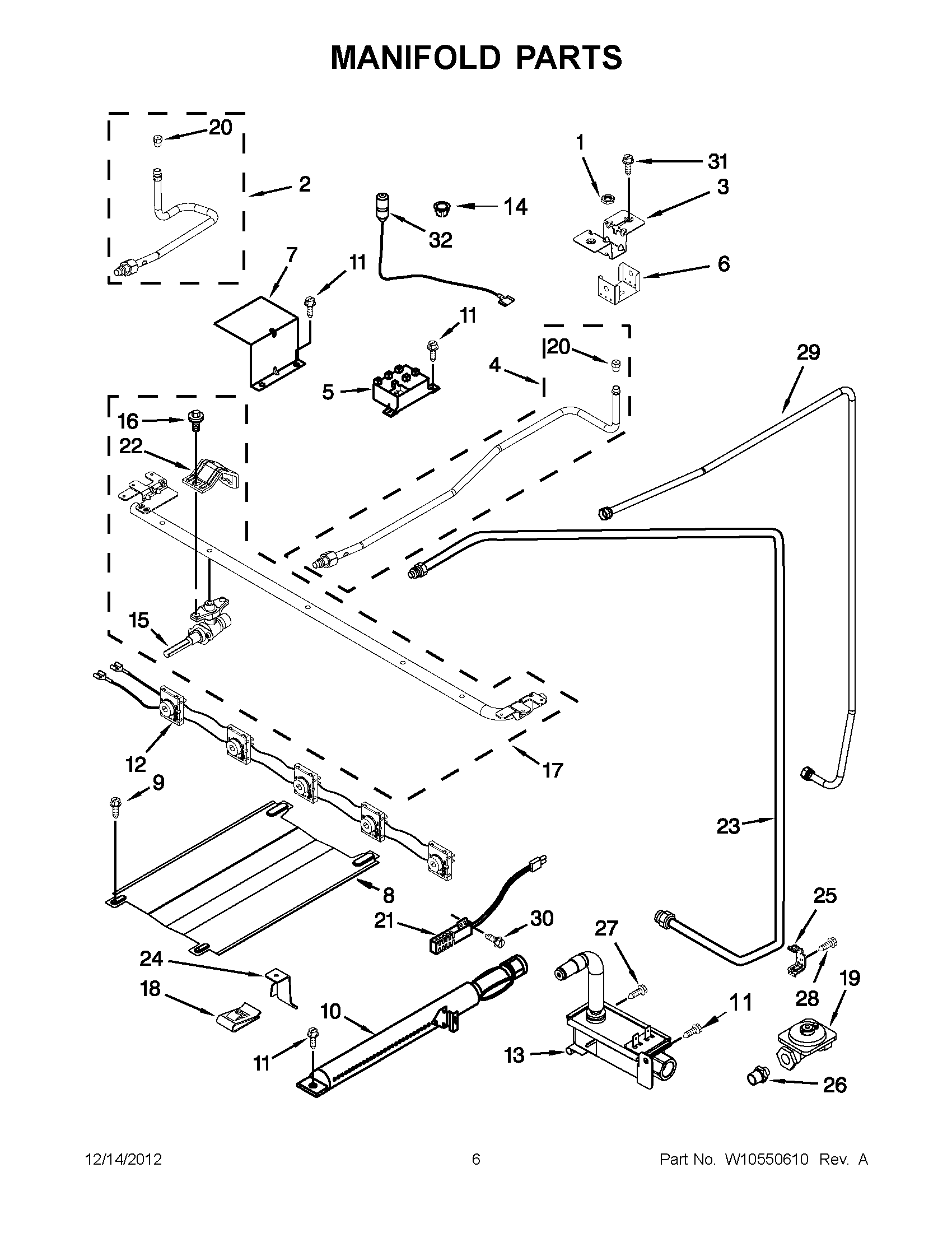

AGR4433XDB2 03 – MANIFOLD PARTS

Products

Position	Product
NI	LP Orifice Kit (For Use With LP)
NI	LINER (NOT A SERVICEABLE PART)
1	NUT
2	VENTURI, FRONT (RF)
2	VENTURI, FRONT (LF)
3	BRACKET, VENTURI
4	VENTURI, REAR
5	MAY 6610341
6	MAY W10306464
7	MAY 98007192
8	SPREAD, FLAME (BAKE)
9	SCREW
10	MAY 98012138
11	SCREW
12	MAY W10361492
13	MAY 98014893
14	MAY W10278150
15	VALVE, BURNER (LF, LR, RF, RR)
16	MAY 98017517
17	MAY W10145011
18	U-NUT
19	MAY W10469572
20	Orifice (RF, RR, LR)
20	MAY 98017349
21	Igniter, Oven Oven Pilot)
23	MAY W10469571
24	MAY 98013314
25	MAY 98007410
26	MAY 98007431
27	MAY 98013634
28	MAY 98007225
29	Tubing, Inlet
30	MAY 98005659
31	MAY W10146346
32	IGNITOR, TOP (LEFT REAR)
32	IGNITOR, TOP (RF, RR, LF)
