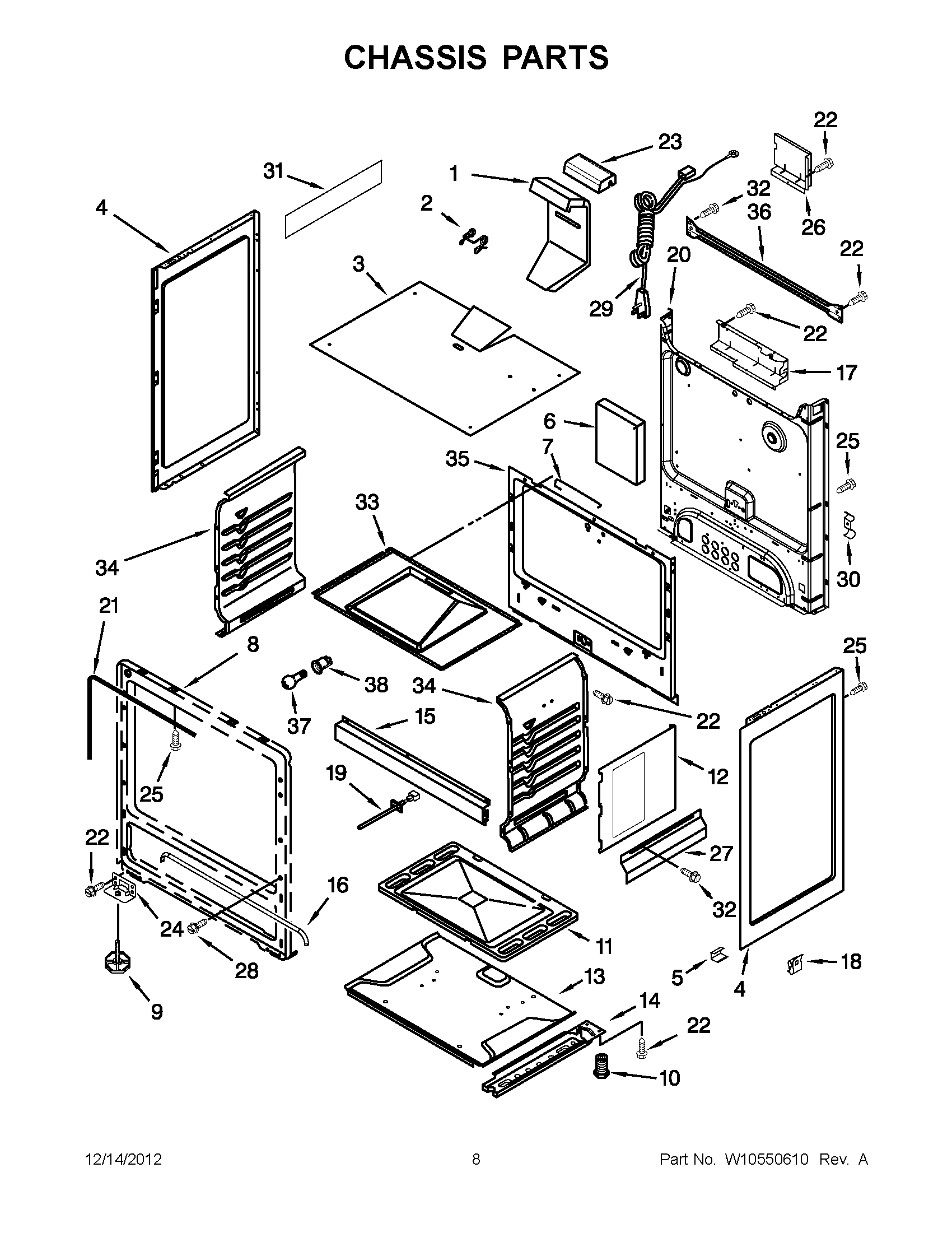

AGR4433XDB2 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10137233
NI	INSULATION, TOP
NI	MAY W10137227
1	BOX, FLUE
2	SPRING, TORSION (FLUE BOX)
3	MAY W10306785
4	PANEL, SIDE (WHITE)
4	PANEL, SIDE (BLACK)
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY 98006739
8	MAY W10166434
9	FOOT, FRONT
10	FOOT, LEVELING
11	MAY 98004449
12	BAFFLE, SIDE
13	MAY 98003847
14	RAIL, BASE
15	MAY 98012175
16	Gasket, Broil Door
17	MAY 98014105
18	U-NUT
19	SENSOR, OVEN
20	MAY 98015100
21	MAY W10217472
22	SCREW
23	MAY 98007205
24	BASE, FOOT
25	SCREW
26	Cover, Socket
27	SHIELD, HEAT (LOWER)
28	SCREW (BLACK)
29	MAY 98014532
30	CLIP, TUBING
31	FOIL, SIDE
32	Screw
33	MAY 98004447
34	SIDE, OVEN (LEFT HAND)
34	SIDE, OVEN (RIGHT HAND)
35	MAY 98013777
36	MAY 98015363
37	BULB, LIGHT
38	SOCKET, LIGHT BULB
