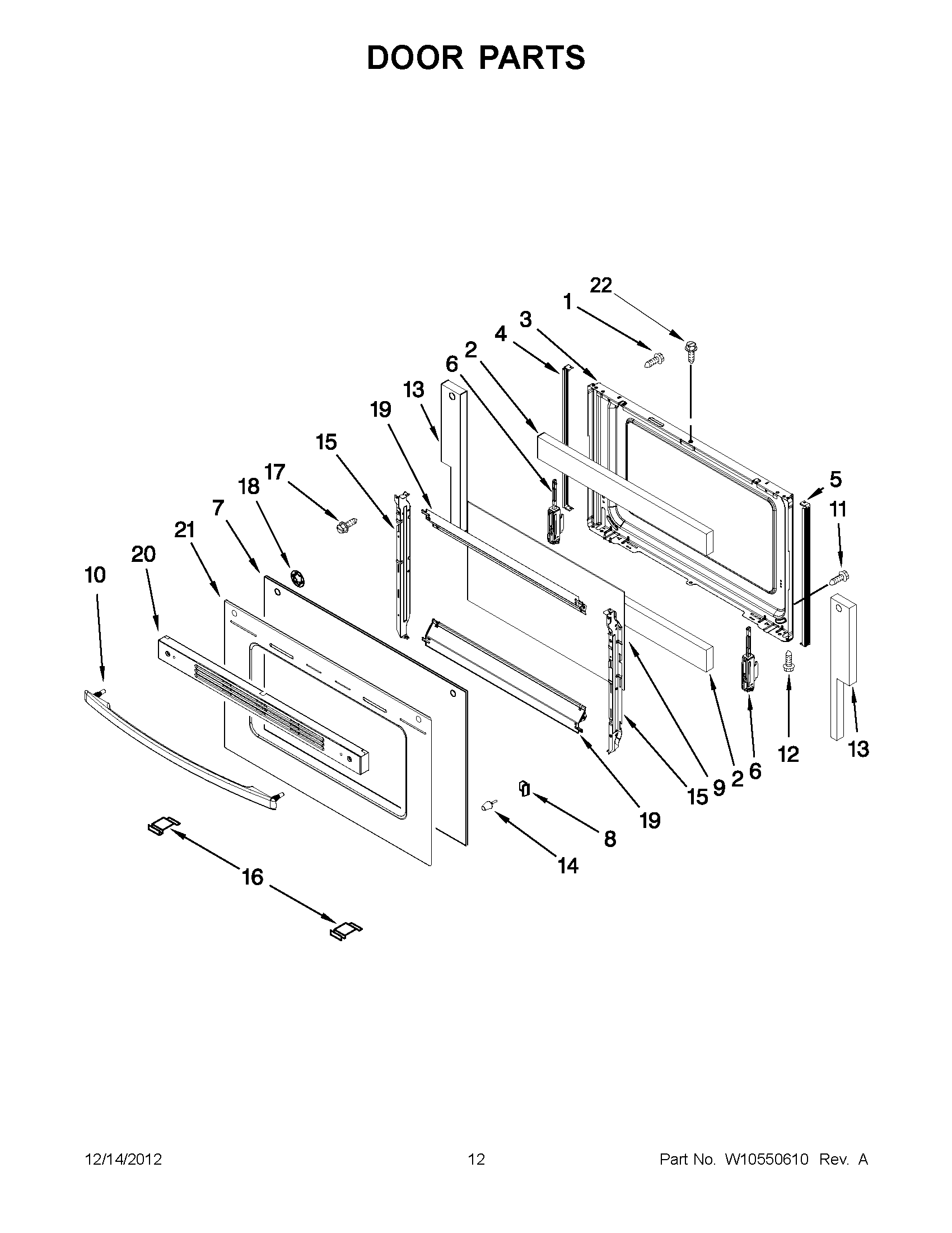

AGR4433XDS2 06 – DOOR PARTSadmin2025-04-26T12:24:03+00:00AGR4433XDS2 06 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8533843 |
| 2 | INSULATION |
| 3 | LINER-DOOR |
| 4 | TRIM, SIDE LH (BLACK) |
| 4 | TRIM, SIDE LH (WHITE) |
| 5 | TRIM, SIDE RH (BLACK) |
| 5 | TRIM, SIDE RH (WHITE) |
| 6 | HINGE, DOOR |
| 7 | MAY W10217617 |
| 7 | MAY W10296568 |
| 8 | CLIP, GLASS (RIGHT HAND) |
| 8 | CLIP, GLASS (LEFT HAND) |
| 9 | MAY W10109950 |
| 10 | MAY 98004943 |
| 10 | MAY 98004942 |
| 11 | SCREW |
| 12 | SCREW |
| 13 | Insulation (Left) |
| 13 | Insulation (Right) |
| 14 | MAY 98004227 |
| 15 | RETAINER (RIGHT HAND) |
| 15 | RETAINER (LEFT HAND) |
| 16 | TRIM, LOWER (BLACK) |
| 16 | TRIM, LOWER (WHITE) |
| 17 | SCREW |
| 18 | NUT, PUSH |
| 19 | MAY 98015806 |
| 20 | BASE, OVEN HANDLE (BLACK) |
| 20 | BASE, OVEN HANDLE (WHITE) |
| 21 | PANEL, OUTER PANEL (STAINLESS) |
| 22 | SCREW (WHITE) |
| 22 | SCREW (BLACK) |
