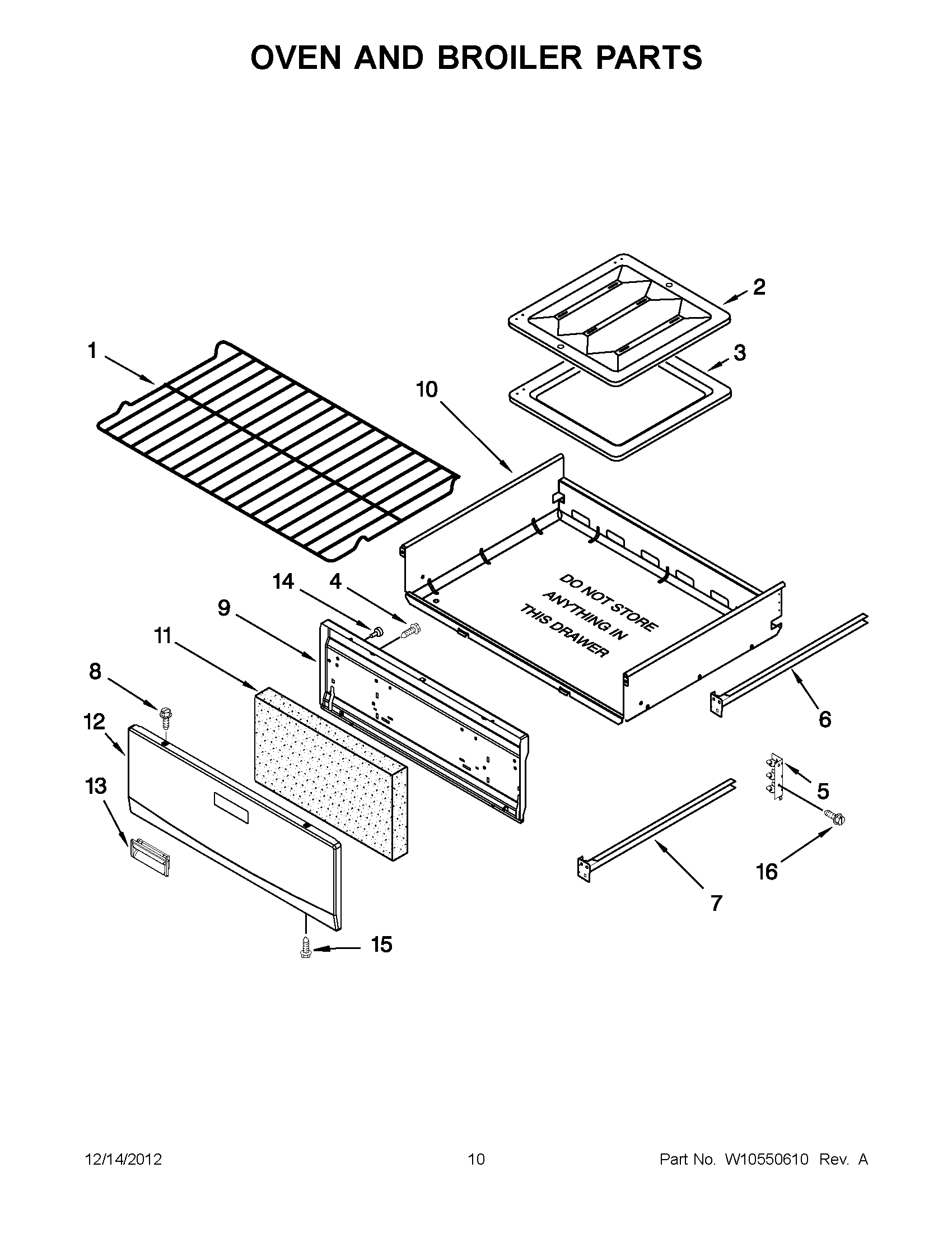

AGR4433XDW2 05 – OVEN AND BROILER PARTS

Products

Position	Product
1	MAY W10312013
2	MAY 98003480
3	MAY 98016005
4	MAY 8533843
5	SUPPORT, TRAY (RIGHT)
5	SUPPORT, TRAY (LEFT)
6	GUIDE, FIXED (RIGHT)
6	GUIDE, FIXED (LEFT)
7	GUIDE, MOBILE (LEFT)
7	GUIDE, MOBILE (RIGHT)
8	SCREW (BLACK)
8	SCREW (WHITE)
9	MAY W10162118
10	Storage, Drawer
11	MAY W10137230
12	PANEL, BROILER DOOR (STAINLESS)
12	MAY W10174742
12	MAY W10174741
13	Handle, Brlr Door (White)
13	MAY 98015643
14	MAY 98004052
15	SCREW
16	SCREW (BLACK)
