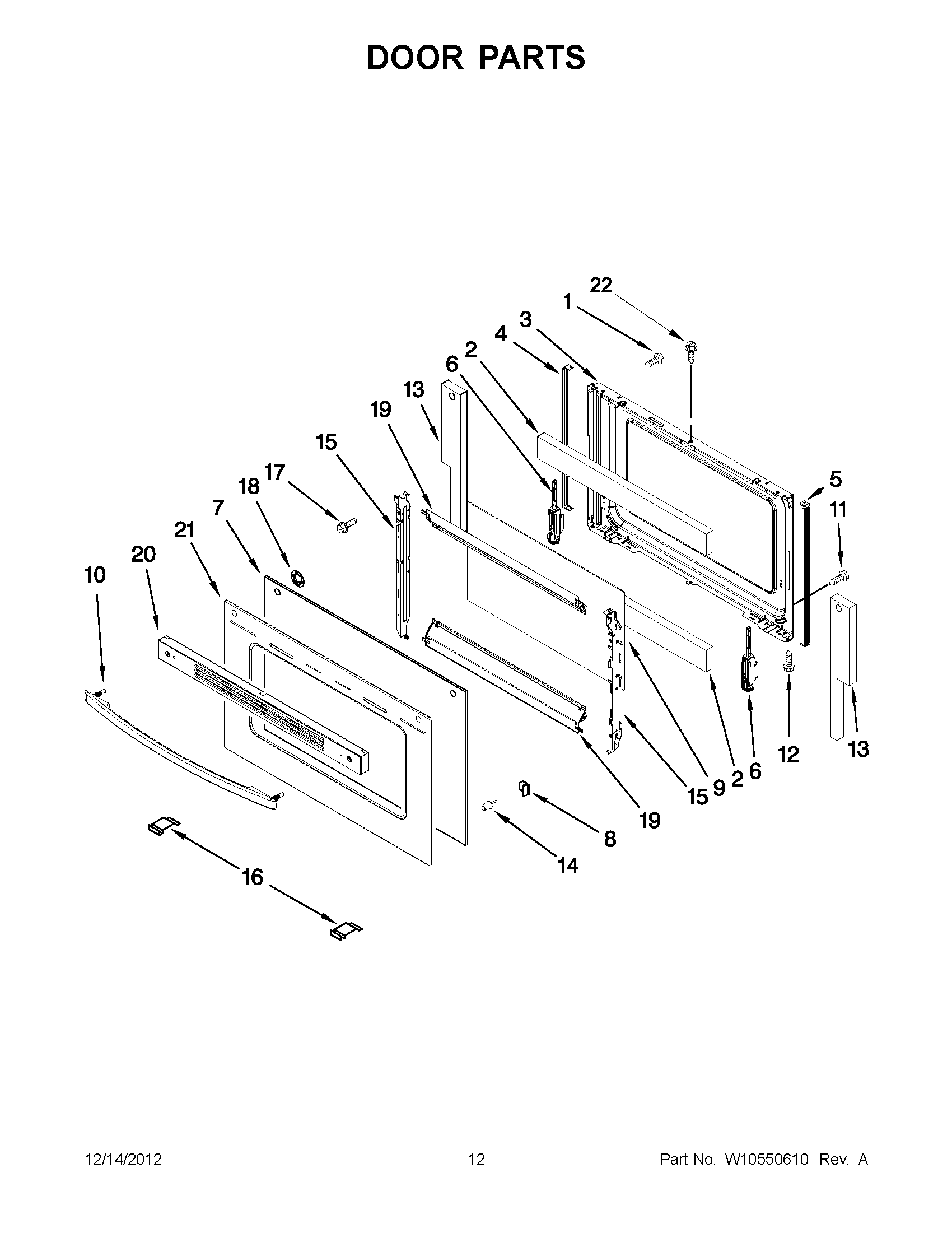

AGR4433XDW2 06 – DOOR PARTS

AGR4433XDW2 06 – DOOR PARTS

Written by

in

AGR4433XDW2 06 – DOOR PARTS

Products

PositionProduct
1MAY 8533843
2INSULATION
3LINER-DOOR
4TRIM, SIDE LH (BLACK)
4TRIM, SIDE LH (WHITE)
5TRIM, SIDE RH (BLACK)
5TRIM, SIDE RH (WHITE)
6HINGE, DOOR
7MAY W10217617
7MAY W10296568
8CLIP, GLASS (RIGHT HAND)
8CLIP, GLASS (LEFT HAND)
9MAY W10109950
10MAY 98004943
10MAY 98004942
11SCREW
12SCREW
13Insulation (Left)
13Insulation (Right)
14MAY 98004227
15RETAINER (RIGHT HAND)
15RETAINER (LEFT HAND)
16TRIM, LOWER (BLACK)
16TRIM, LOWER (WHITE)
17SCREW
18NUT, PUSH
19MAY 98015806
20BASE, OVEN HANDLE (BLACK)
20BASE, OVEN HANDLE (WHITE)
21PANEL, OUTER PANEL (STAINLESS)
22SCREW (WHITE)
22SCREW (BLACK)
