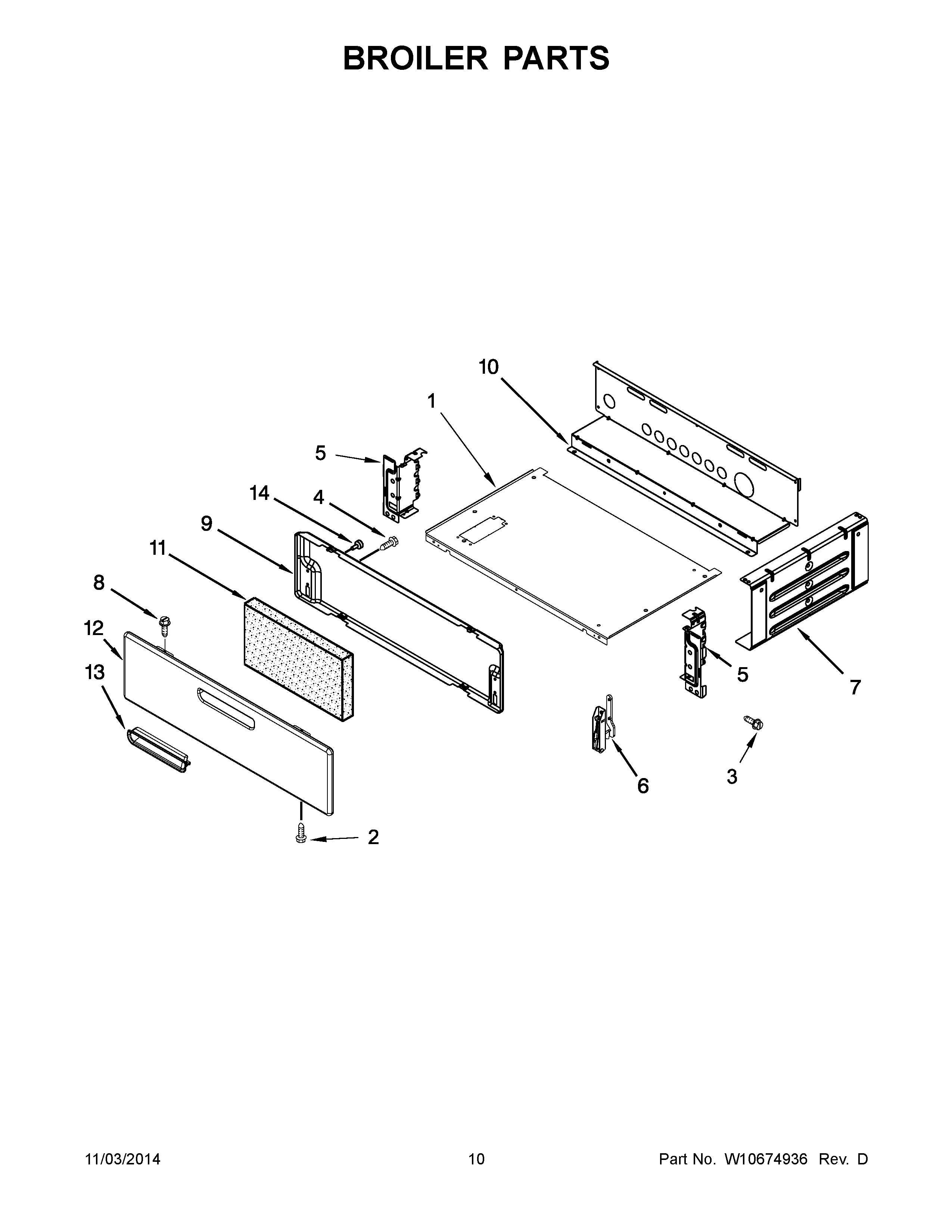

AGR5330BAB0 06 – BROILER PARTS

Products

PositionProduct
1BAFFLE, BASE
2SCREW
3SCREW (BLACK)
4SCREW
5ACOVER, BROILER RIGHT
5COVER, BROILER LEFT
6HINGE
7PANEL, SIDE
8SCREW (BLACK)
9LINER, BROILER DRAWER
10MAY W10364810
11INSULATION, BROILER DOOR
12BPANEL, BROILER DOOR (STAINLESS)
12AMAY W10393899
12MAY W10483323
13AHANDLE, BROILER DOOR (BLACK)
13HANDLE, BROILER DOOR (WHITE)
13BHANDLE, BROILER DOOR (GREY)
14MAY 98004052
