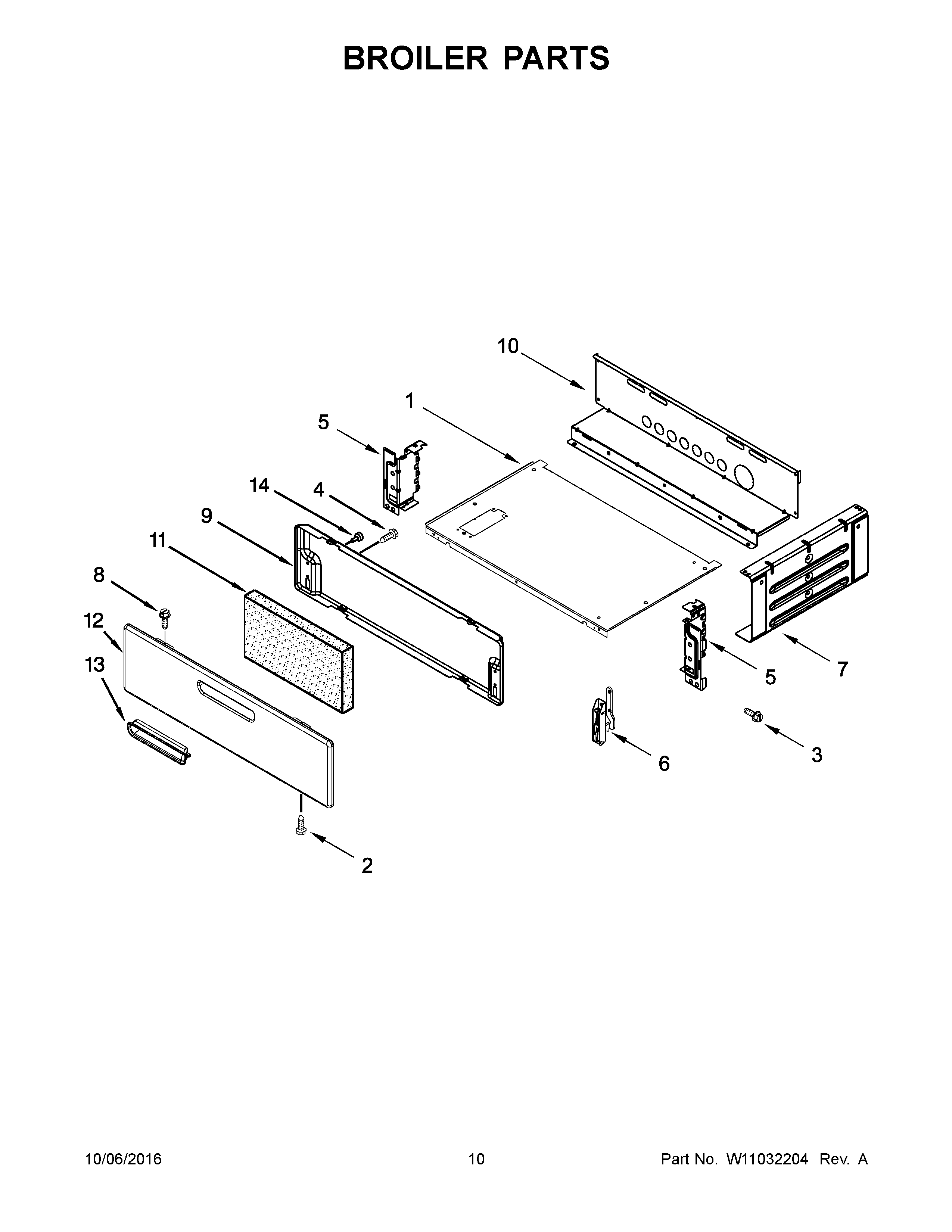

AGR5330BAB1 06 – BROILER PARTS

Products

Position	Product
1	BAFFLE, BASE
2	SCREW
3	SCREW (BLACK)
4	SCREW
5A	COVER, BROILER RIGHT
5	COVER, BROILER LEFT
6	HINGE
7	PANEL, SIDE
8	SCREW (BLACK)
9	LINER, BROILER DRAWER
10	BACK COVER, BROILER
11	INSULATION, BROILER DOOR
12B	PANEL, BROILER DOOR (STAINLESS)
12A	MAY W10483323
12	MAY W10393899
13	HANDLE, BROILER DOOR (BLACK)
13A	HANDLE, BROILER DOOR (WHITE)
13B	HANDLE, BROILER DOOR (GREY)
14	MAY 98004052
