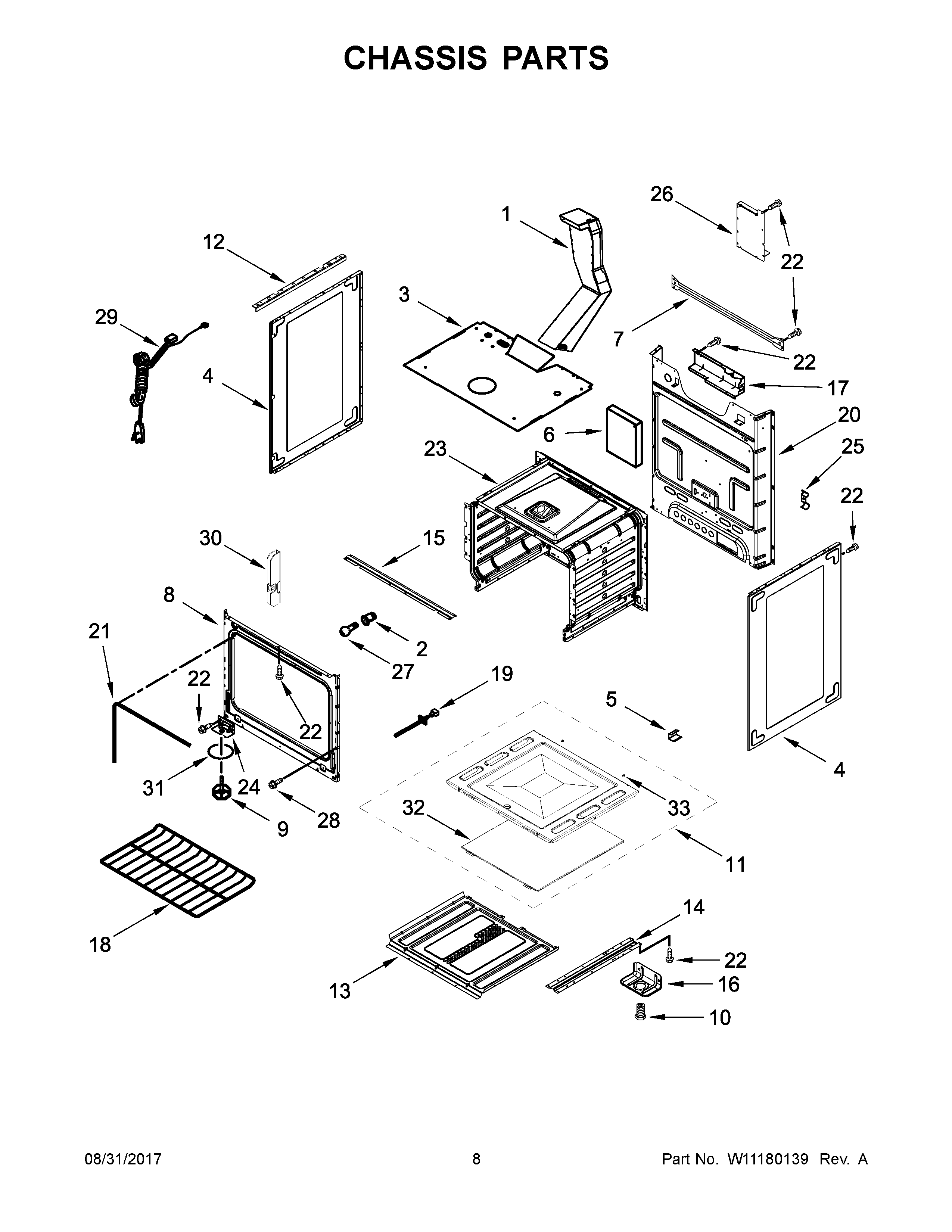

AGR5330BAB2 05 – CHASSIS PARTSadmin2025-04-26T12:24:54+00:00AGR5330BAB2 05 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, UPPER |
| NI | INSULATION, WRAP |
| NI | INSULATION, BACK |
| NI | WIRE TIE, INSULATION |
| 1 | BOX, FLUE |
| 2 | SOCKET - OVEN LIGHT |
| 3 | SHIELD, INSULATION |
| 4A | PANEL, SIDE (BLACK (RIGHT)) |
| 4 | PANEL, SIDE (BLACK (LEFT)) |
| 4C | PANEL, SIDE (WHITE (RIGHT)) |
| 4B | PANEL, SIDE (WHITE (LEFT)) |
| 5 | CLIP, OVEN BOTTON |
| 6 | COUNTERWEIGHT |
| 7 | MAY 98015363 |
| 9 | FOOT, LEVELING (FRONT) |
| 10 | FOOT, LEVELING |
| 11 | ASSEMBLY, OVEN BOTTOM |
| 12 | SUPPORT, SIDE PANEL |
| 13 | DEFLECTOR, OVEN |
| 14 | RAIL, BASE |
| 15 | BRACKET, MANIFOLD |
| 16 | BRACKET, FOOT |
| 17 | COVER, VALVE |
| 18 | RACK, OVEN |
| 19 | SENSOR, OVEN |
| 20 | BACK, MAIN |
| 21 | SEAL, OVEN |
| 22 | SCREW |
| 23 | LINER (NOT A SERVICEABLE PART) |
| 24 | BASE, FOOT |
| 25 | CLIP, TUBING |
| 26 | COVER |
| 27 | BULB, LIGHT |
| 28 | SCREW (BLACK) |
| 29 | CORD, POWER |
| 30 | HINGE, COUNTER SUPPORT |
| 31 | SPACER |
| 32 | SPREAD, FLAME (BAKE) |
| 33 | SCREW (BLACK) |
