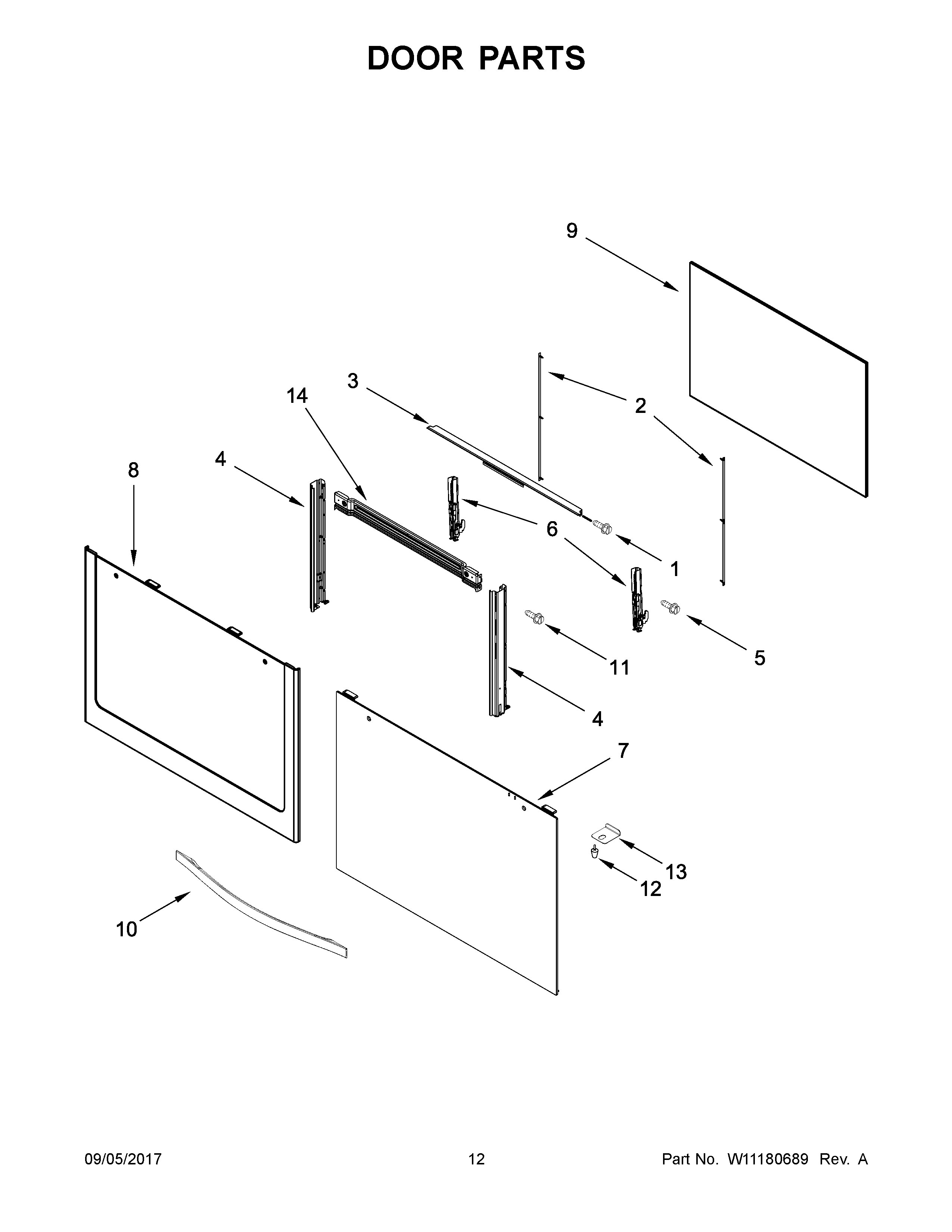

AGR5330BAB3 07 – DOOR PARTSadmin2025-04-26T12:26:54+00:00AGR5330BAB3 07 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | SCREW (BLACK) |
| 2 | SEAL, INNER DOOR |
| 3 | UPPER TRIM, OVEN DOOR |
| 4 | TRIM, SIDE (LEFT) |
| 4A | TRIM, SIDE (RIGHT) |
| 5 | MAY W10146346 |
| 6 | HINGE, OVEN DOOR (BLACK & WHITE MODELS) |
| 6A | HINGE, OVEN DOOR (STAINLESS MODEL) |
| 7 | PANEL, DOOR (BLACK) |
| 7A | PANEL, DOOR (WHITE) |
| 8 | PANEL, DOOR (STAINLESS) |
| 9 | GLASS, INNER |
| 10 | HANDLE, OVEN DOOR (BLACK) |
| 10A | HANDLE, OVEN DOOR (WHITE) |
| 11 | SCREW |
| 12 | SCREW |
| 13A | BRACKET, GLASS DOOR HOLD (WHITE) |
| 13 | BRACKET, GLASS DOOR HOLD (BLACK) |
| 14 | CROSS SUPPORT |
