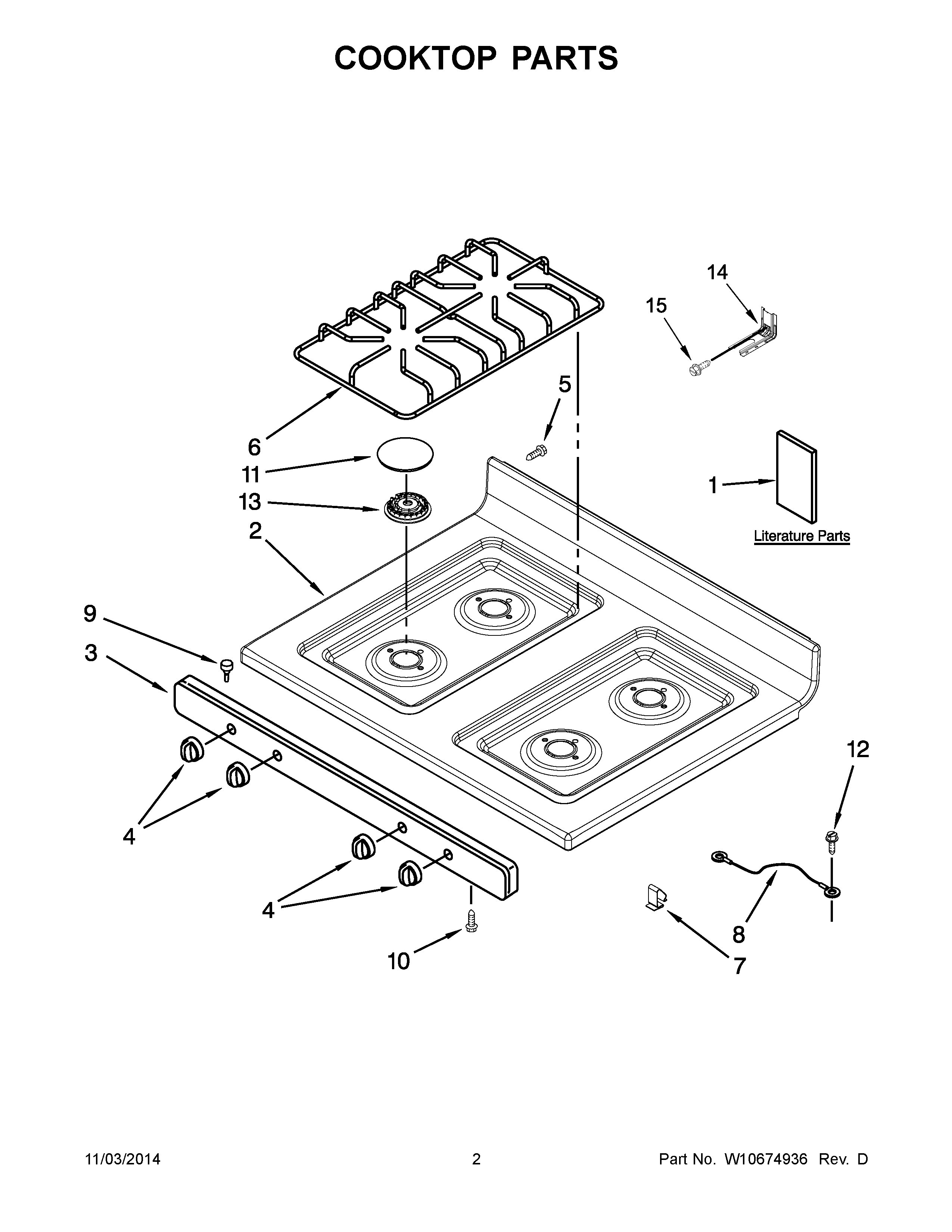

AGR5330BAS0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	MAY 98005896
NI	MAY 98005894
NI	LINER (NOT A SERVICEABLE PART)
NI	PAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2))
NI	CLIP, HARNESS
NI	MAY 3391018
1C	MAY W10142327
1	MAY W10620415
1B	TIPS, SAFE COOKING (ENGLISH)
1A	GUIDE, USE AND CARE
2	MAY W10535684
2A	MAY W10535686
3A	PANEL, MANIFOLD (BLACK)
3	PANEL, MANIFOLD (WHITE)
4	KNOB, BURNER (WHITE)
4A	KNOB, BURNER (BLACK)
5	MAY 98007225
6	GRATE, BURNER (BLACK)
7	CLIP, COOKTOP
8	MAY 98014544
9	MAY 98013389
10	SCREW
11	Cap, Burner (Black)
12	WIRING HARNESS PARTS, SCREW, GROUND
13	BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RIGHT FRONT)
14	BRACKET, ANTI-TIP
15	SCREW, ANTI-TIP KIT
