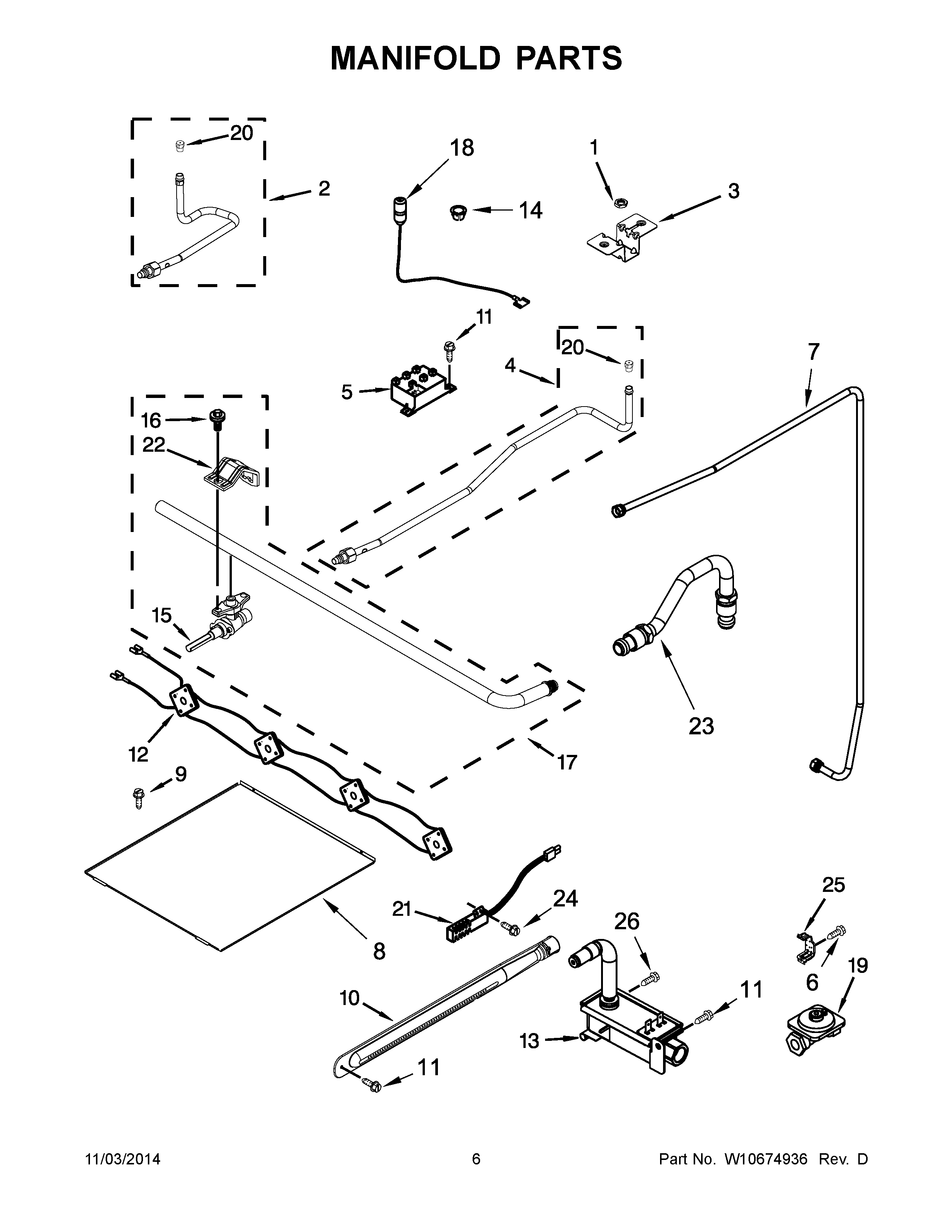

AGR5330BAS0 04 – MANIFOLD PARTS

Products

PositionProduct
NILP Orifice Kit (For Use With LP)
NILINER (NOT A SERVICEABLE PART)
1NUT
2ASSEMBLY, TUBING (LEFT FRONT)
2AASSEMBLY, TUBING (RIGHT FRONT)
3BRKT., VENTURI
4ASSEMBLY, TUBING (LEFT REAR)
4AMAY W10544971
5MAY 6610341
6MAY 98007225
7TUBING, MANIFOLD TO REGULATOR
8SPREAD, FLAME (BAKE)
9SCREW (BLACK)
10BURNER, OVEN
11SCREW
12HARNESS, SWITCH
13MAY 98014893
14MAY W10278150
15VALVE, BURNER (LF, LR, RF, RR)
15AVALVE, SADDLE (LEFT FRONT)
16MAY 98017517
17MAY W10523235
18IGNITOR, TOP (RF, RR, LF)
18AIGNITOR, TOP (LEFT REAR)
19REGULATOR
20Orifice (RF, RR, LR)
20AMAY 98017349
21Igniter, Oven Oven Pilot)
22BRACKET, VALVE
23TUBING (REGULATOR TO OVEN VALVE)
24MAY W10146346
25MAY 98007410
26MAY 98013634
