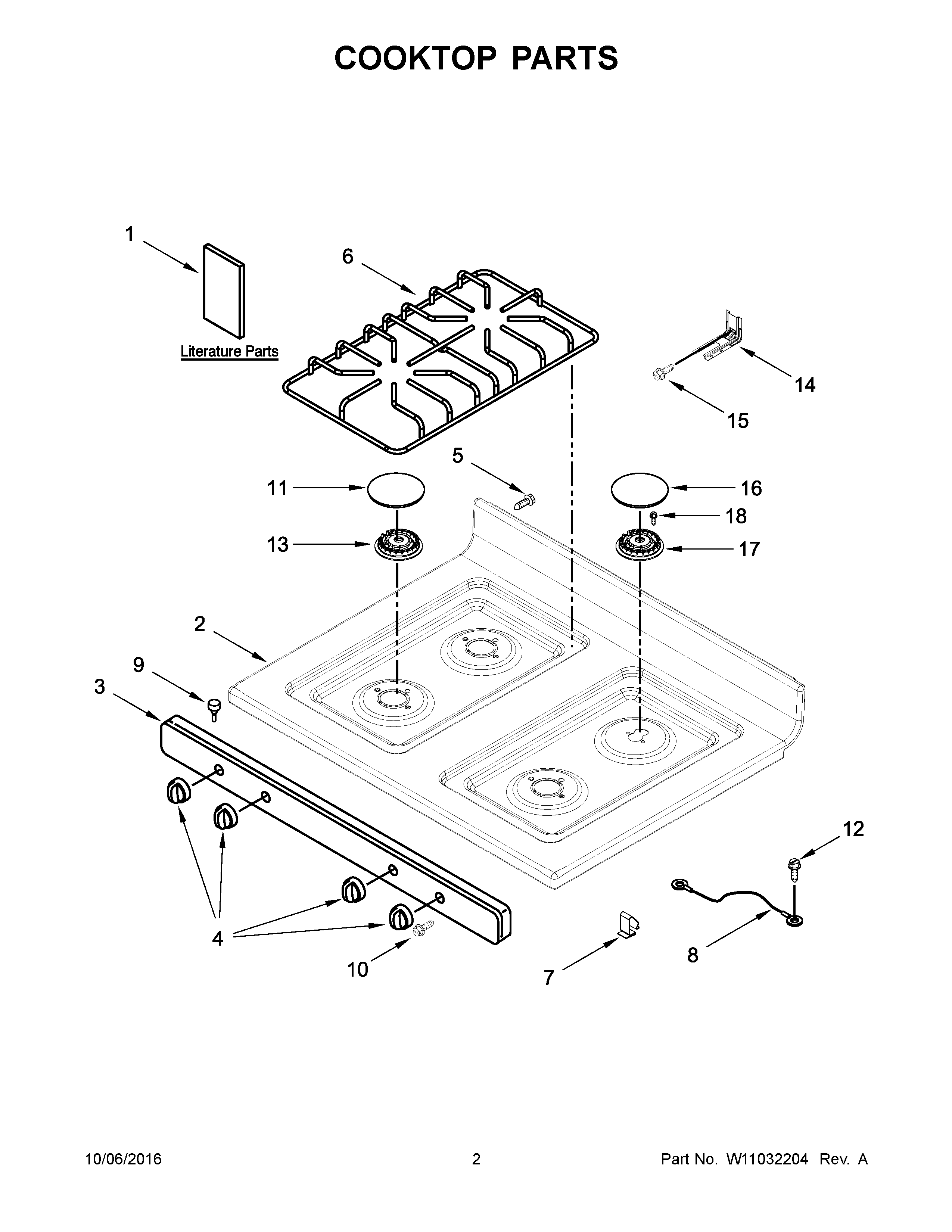

AGR5330BAS1 02 – COOKTOP PARTSadmin2025-04-26T12:26:17+00:00AGR5330BAS1 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, MAIN |
| NI | MAY 98005896 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | PAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2)) |
| NI | MAY 98005894 |
| NI | CLIP, HARNESS |
| NI | MAY 3391018 |
| 1C | MAY W10142327 |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1B | TIPS, SAFE COOKING (ENGLISH) |
| 1A | GUIDE, USE AND CARE |
| 2A | COOKTOP (WHITE) |
| 2 | COOKTOP (BLACK) |
| 3 | PANEL, MANIFOLD (BLACK) |
| 3A | PANEL, MANIFOLD (WHITE) |
| 4 | KNOB, BURNER (BLACK) |
| 4A | KNOB, BURNER (WHITE) |
| 5 | MAY 98007225 |
| 6 | GRATE, BURNER (BLACK) |
| 7 | CLIP, COOKTOP |
| 8 | MAY 98014544 |
| 9 | MAY 98013389 |
| 10 | SCREW (BLACK) |
| 11 | Cap, Burner (Black) |
| 12 | WIRING HARNESS PARTS, SCREW, GROUND |
| 13 | BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RIGHT FRONT) |
| 14 | BRACKET, ANTI-TIP |
| 15 | SCREW, ANTI-TIP KIT |
| 16 | CAP, BURNER (BLACK (1)) |
| 17 | ASSEMBLY, BURNER (6K) (RIGHT REAR) |
| 18 | SCREW |
