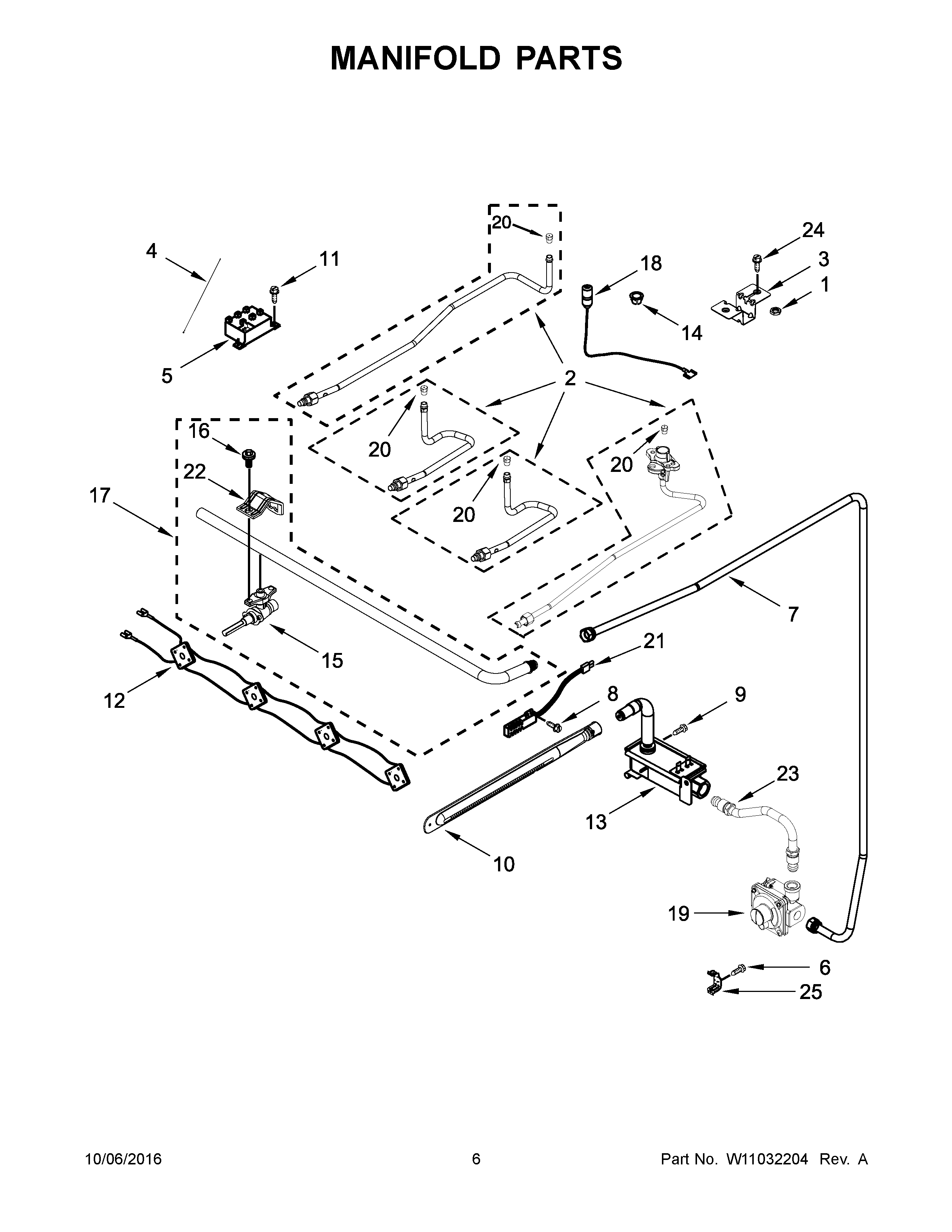

AGR5330BAS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
1	NUT
2	ASSEMBLY, TUBING (LEFT FRONT)
2A	ASSEMBLY, TUBING (LEFT REAR)
2B	ASSEMBLY, TUBING (RIGHT FRONT)
2C	ASSEMBLY, TUBING (RIGHT REAR)
3	BRKT., VENTURI
4	CABLE, SPARK (BLACK)
5	MAY 6610341
6	MAY 98007225
7	TUBING, MANIFOLD TO REGULATOR
8	MAY 98005659
9	MAY 98013634
10	BURNER, OVEN
11	SCREW
12	HARNESS, SWITCH
13	MAY 98014893
14	MAY W10278150
15A	VALVE, BURNER (LF, LR, RF, RR)
15B	VALVE, SADDLE (RIGHT REAR)
15	VALVE, SADDLE (LEFT FRONT)
16	MAY 98017517
17	ASSEMBLY, MANIFOLD
18	IGNITOR, TOP (RF, RR, LF)
18A	IGNITOR, TOP (LEFT REAR)
19	REGULATOR
20B	ORIFICE, NATURAL (5K) (RIGHT REAR)
20	MAY 98017349
20A	Orifice (RF, RR, LR)
21	Igniter, Oven Oven Pilot)
22	BRACKET, VALVE
23	TUBING (REGULATOR TO OVEN VALVE)
24	MAY W10146346
25	MAY 98007410
