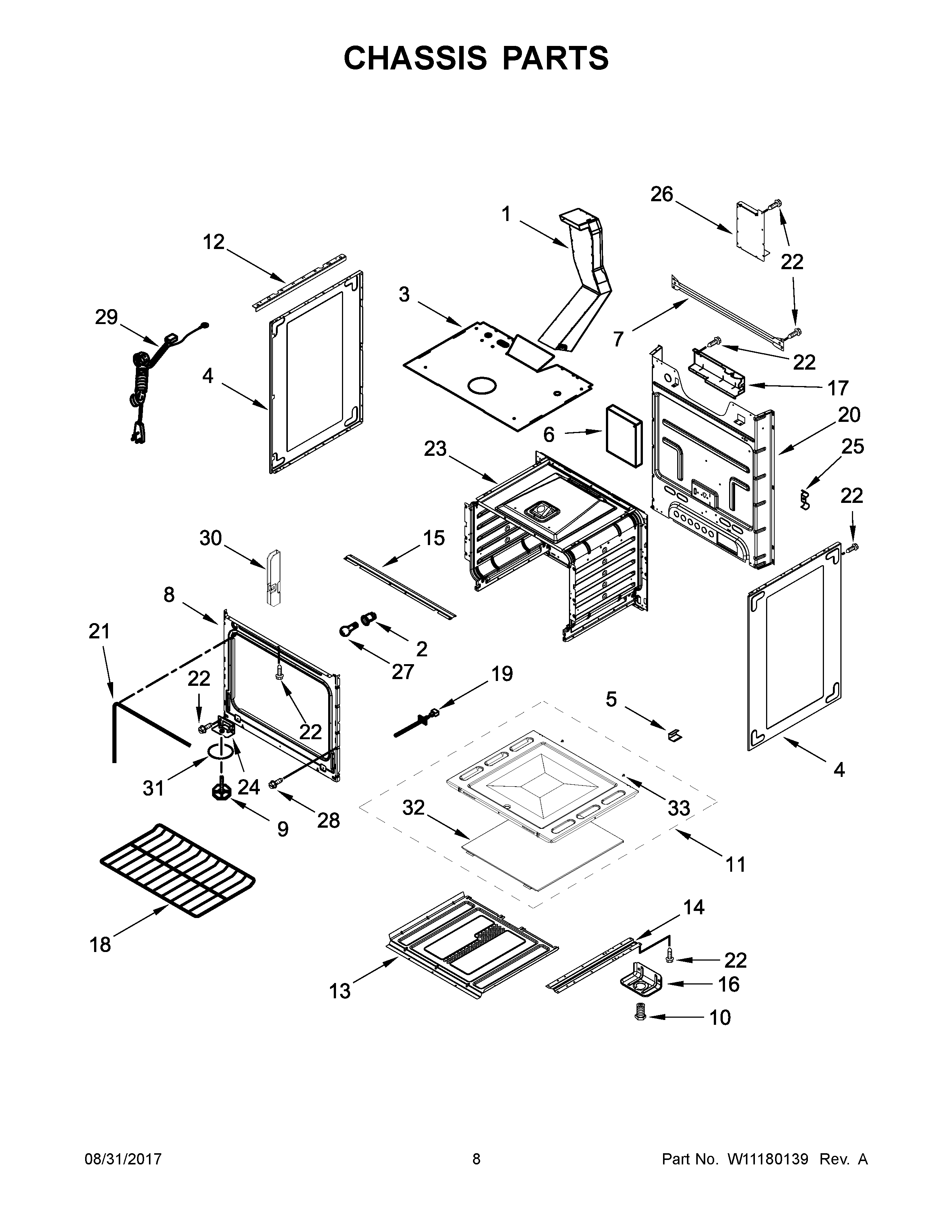

AGR5330BAS2 05 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, UPPER
NI	INSULATION, WRAP
NI	INSULATION, BACK
NI	WIRE TIE, INSULATION
1	BOX, FLUE
2	SOCKET – OVEN LIGHT
3	SHIELD, INSULATION
4A	PANEL, SIDE (BLACK (RIGHT))
4	PANEL, SIDE (BLACK (LEFT))
4C	PANEL, SIDE (WHITE (RIGHT))
4B	PANEL, SIDE (WHITE (LEFT))
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY 98015363
9	FOOT, LEVELING (FRONT)
10	FOOT, LEVELING
11	ASSEMBLY, OVEN BOTTOM
12	SUPPORT, SIDE PANEL
13	DEFLECTOR, OVEN
14	RAIL, BASE
15	BRACKET, MANIFOLD
16	BRACKET, FOOT
17	COVER, VALVE
18	RACK, OVEN
19	SENSOR, OVEN
20	BACK, MAIN
21	SEAL, OVEN
22	SCREW
23	LINER (NOT A SERVICEABLE PART)
24	BASE, FOOT
25	CLIP, TUBING
26	COVER
27	BULB, LIGHT
28	SCREW (BLACK)
29	CORD, POWER
30	HINGE, COUNTER SUPPORT
31	SPACER
32	SPREAD, FLAME (BAKE)
33	SCREW (BLACK)
