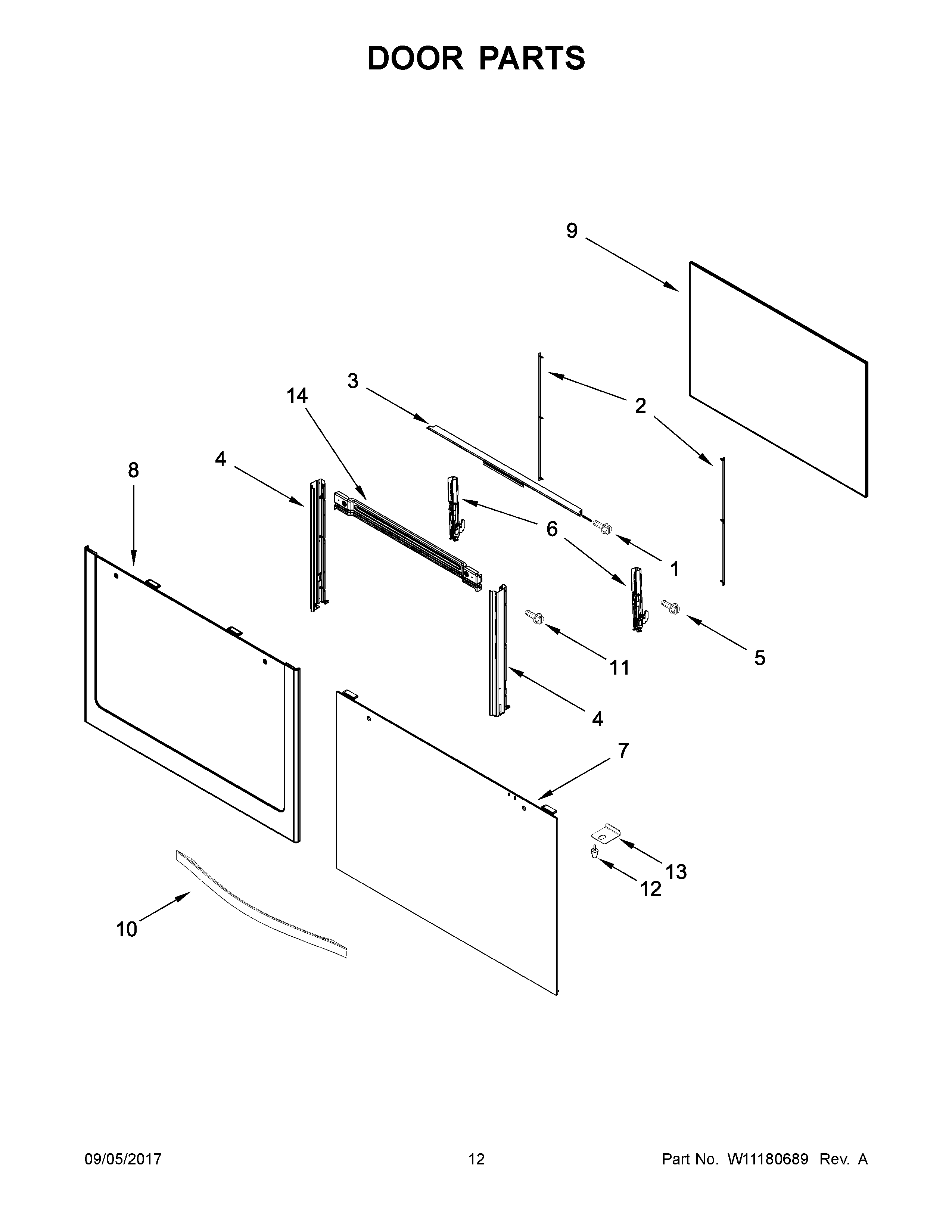

AGR5330BAS3 07 – DOOR PARTS

Products

PositionProduct
1SCREW (BLACK)
2SEAL, INNER DOOR
3UPPER TRIM, OVEN DOOR
4TRIM, SIDE (LEFT)
4ATRIM, SIDE (RIGHT)
5MAY W10146346
6HINGE, OVEN DOOR (BLACK & WHITE MODELS)
6AHINGE, OVEN DOOR (STAINLESS MODEL)
7PANEL, DOOR (BLACK)
7APANEL, DOOR (WHITE)
8PANEL, DOOR (STAINLESS)
9GLASS, INNER
10HANDLE, OVEN DOOR (BLACK)
10AHANDLE, OVEN DOOR (WHITE)
11SCREW
12SCREW
13ABRACKET, GLASS DOOR HOLD (WHITE)
13BRACKET, GLASS DOOR HOLD (BLACK)
14CROSS SUPPORT
