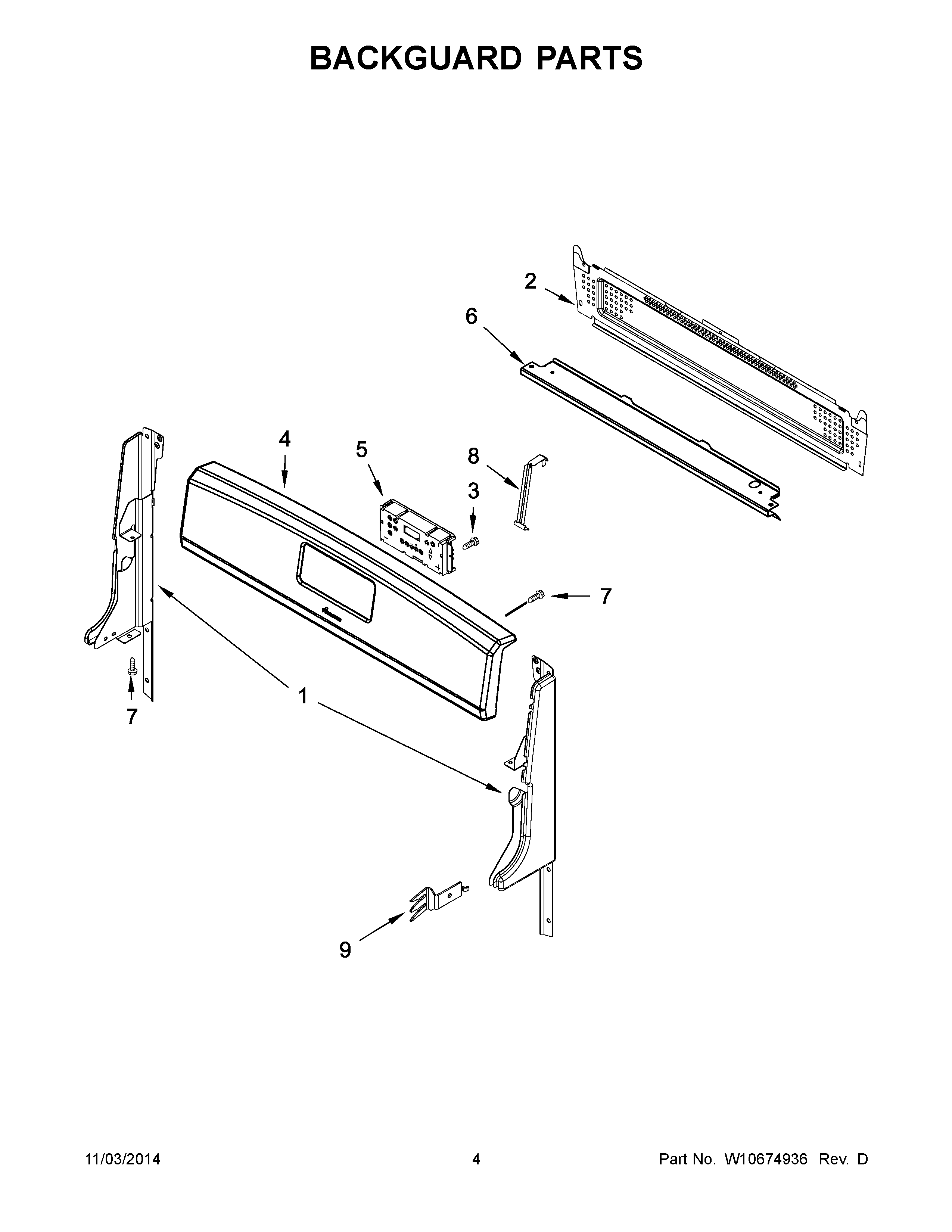

AGR5330BAW0 03 – BACKGUARD PARTS

AGR5330BAW0 03 – BACKGUARD PARTS

Written by

in

AGR5330BAW0 03 – BACKGUARD PARTS

Products

PositionProduct
1ENDCAP (LEFT HAND) (WHITE)
1BENDCAP (RIGHT HAND) (WHITE)
1CMAY W10661916
1AMAY W10662115
2MAY W10535808
3SCREW
4AMAY W10620556
4MAY W10620555
4BPANEL, CONTROL (BLACK WITH OVERLAY (STAINLESS MODEL))
5CONTROL, ELECTRONIC (WHITE)
5ACONTROL, ELECTRONIC (BLACK)
6BRACKET, CONSOLE MOUNT
7SCREW
8MAY W10324410
9BRACKET, REAR
