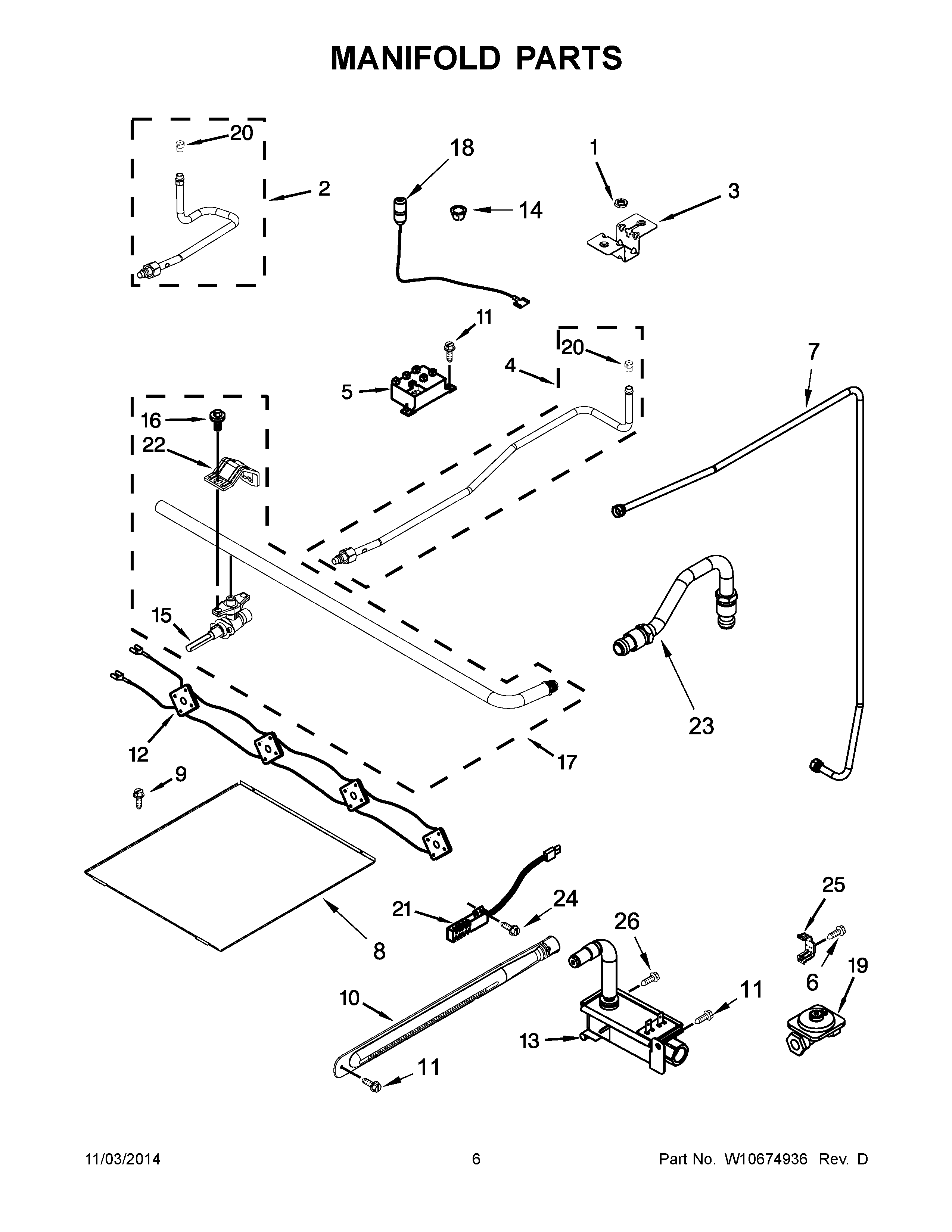

AGR5330BAW0 04 – MANIFOLD PARTSadmin2025-04-26T12:27:30+00:00AGR5330BAW0 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | LP Orifice Kit (For Use With LP) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | NUT |
| 2 | ASSEMBLY, TUBING (LEFT FRONT) |
| 2A | ASSEMBLY, TUBING (RIGHT FRONT) |
| 3 | BRKT., VENTURI |
| 4 | ASSEMBLY, TUBING (LEFT REAR) |
| 4A | MAY W10544971 |
| 5 | MAY 6610341 |
| 6 | MAY 98007225 |
| 7 | TUBING, MANIFOLD TO REGULATOR |
| 8 | SPREAD, FLAME (BAKE) |
| 9 | SCREW (BLACK) |
| 10 | BURNER, OVEN |
| 11 | SCREW |
| 12 | HARNESS, SWITCH |
| 13 | MAY 98014893 |
| 14 | MAY W10278150 |
| 15 | VALVE, BURNER (LF, LR, RF, RR) |
| 15A | VALVE, SADDLE (LEFT FRONT) |
| 16 | MAY 98017517 |
| 17 | MAY W10523235 |
| 18 | IGNITOR, TOP (RF, RR, LF) |
| 18A | IGNITOR, TOP (LEFT REAR) |
| 19 | REGULATOR |
| 20 | Orifice (RF, RR, LR) |
| 20A | MAY 98017349 |
| 21 | Igniter, Oven Oven Pilot) |
| 22 | BRACKET, VALVE |
| 23 | TUBING (REGULATOR TO OVEN VALVE) |
| 24 | MAY W10146346 |
| 25 | MAY 98007410 |
| 26 | MAY 98013634 |
