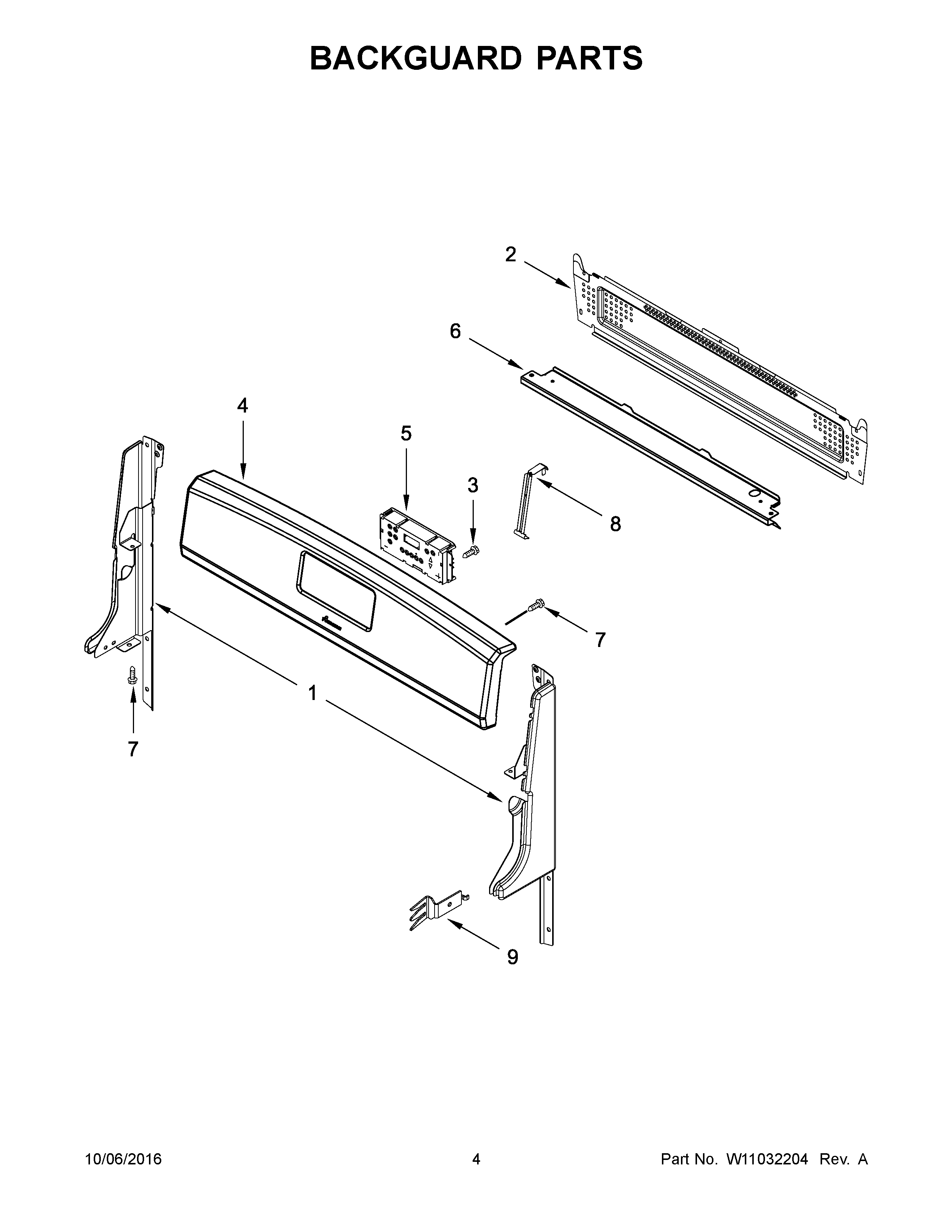

AGR5330BAW1 03 – BACKGUARD PARTS

AGR5330BAW1 03 – BACKGUARD PARTS

Written by

in

AGR5330BAW1 03 – BACKGUARD PARTS

Products

PositionProduct
1AENDCAP (LEFT HAND) (WHITE)
1CENDCAP (RIGHT HAND) (WHITE)
1BMAY W10661916
1MAY W10662115
2BACKGUARD, REAR
3SCREW
4MAY W10620556
4AMAY W10620555
4BPANEL, CONTROL (BLACK WITH OVERLAY (STAINLESS MODEL))
5ACONTROL, ELECTRONIC (WHITE)
5CONTROL, ELECTRONIC (BLACK)
6BRACKET, CONSOLE MOUNT
7SCREW
8BRACKET, CONTROL
9BRACKET, REAR
