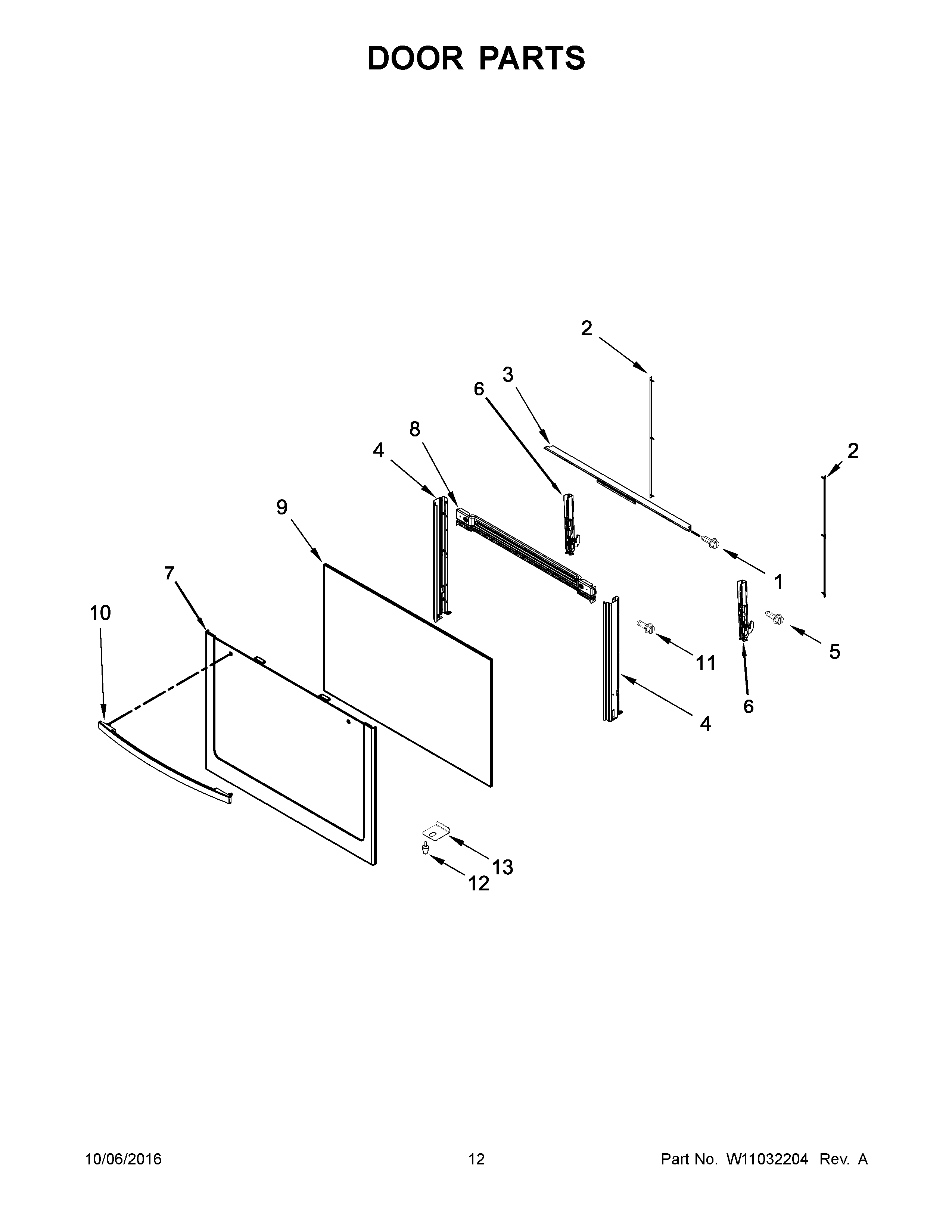

AGR5330BAW1 07 – DOOR PARTS

Products

Position	Product
1	SCREW (BLACK)
2	SEAL, INNER DOOR
3	UPPER TRIM, OVEN DOOR
4A	TRIM, SIDE (RIGHT)
4	TRIM, SIDE (LEFT)
5	MAY W10146346
6	HINGE, OVEN DOOR (BLACK & WHITE MODELS)
6A	HINGE, OVEN DOOR (STAINLESS MODEL)
7B	PANEL, DOOR (STAINLESS)
7A	PANEL, DOOR (WHITE)
7	PANEL, DOOR (BLACK)
8	CROSS SUPPORT
9	GLASS, INNER
10	HANDLE, OVEN DOOR (BLACK)
10A	HANDLE, OVEN DOOR (WHITE)
11	SCREW
12	SCREW
13A	BRACKET, GLASS DOOR HOLD (WHITE)
13	BRACKET, GLASS DOOR HOLD (BLACK)
