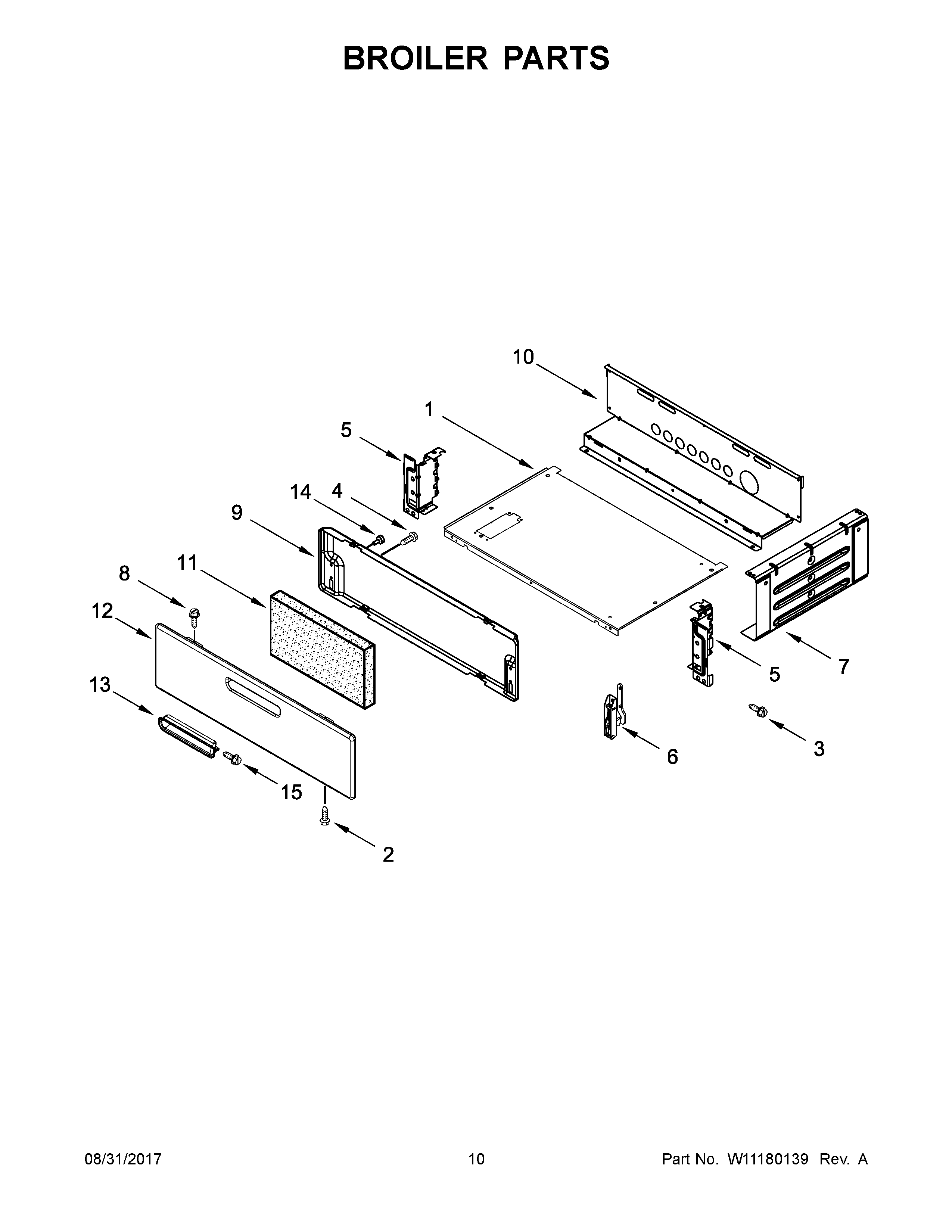

AGR5330BAW2 06 – BROILER PARTS

Products

Position	Product
1	BAFFLE, BASE
2	SCREW
3	SCREW (BLACK)
4	SCREW
5A	COVER, BROILER RIGHT
5	COVER, BROILER LEFT
6	HINGE
7	PANEL, SIDE
8	SCREW (BLACK)
9	LINER, BROILER DRAWER
10	BACK COVER, BROILER
11	INSULATION, BROILER DOOR
12	PANEL, BROILER DOOR (BLACK)
12A	PANEL, BROILER DOOR (WHITE)
12B	PANEL, BROILER DOOR (STAINLESS)
13A	HANDLE, BROILER DOOR (WHITE)
13	HANDLE, BROILER DOOR (BLACK)
13B	HANDLE, BROILER DOOR (GREY)
14	MAY 98004052
15	SCREW
