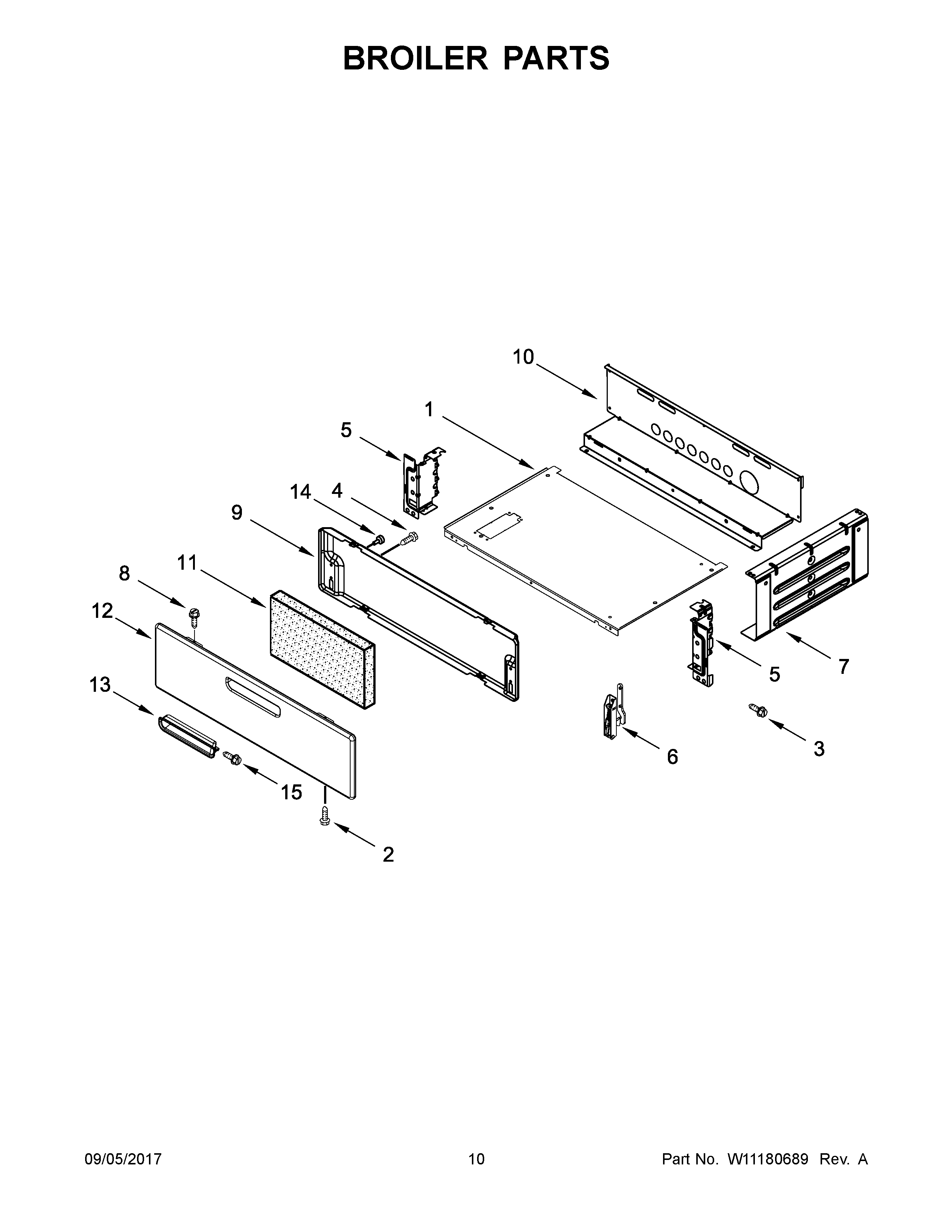

AGR5330BAW3 06 – BROILER PARTSadmin2025-04-26T12:27:10+00:00AGR5330BAW3 06 – BROILER PARTS
Products
| Position | Product |
|---|
| 1 | BAFFLE, BASE |
| 2 | SCREW |
| 3 | SCREW (BLACK) |
| 4 | SCREW |
| 5A | COVER, BROILER RIGHT |
| 5 | COVER, BROILER LEFT |
| 6 | HINGE |
| 7 | PANEL, SIDE |
| 8 | SCREW (BLACK) |
| 9 | LINER, BROILER DRAWER |
| 10 | BACK COVER, BROILER |
| 11 | INSULATION, BROILER DOOR |
| 12 | PANEL, BROILER DOOR (BLACK) |
| 12A | PANEL, BROILER DOOR (WHITE) |
| 12B | PANEL, BROILER DOOR (STAINLESS) |
| 13A | HANDLE, BROILER DOOR (WHITE) |
| 13 | HANDLE, BROILER DOOR (BLACK) |
| 13B | HANDLE, BROILER DOOR (GREY) |
| 14 | MAY 98004052 |
| 15 | SCREW |
