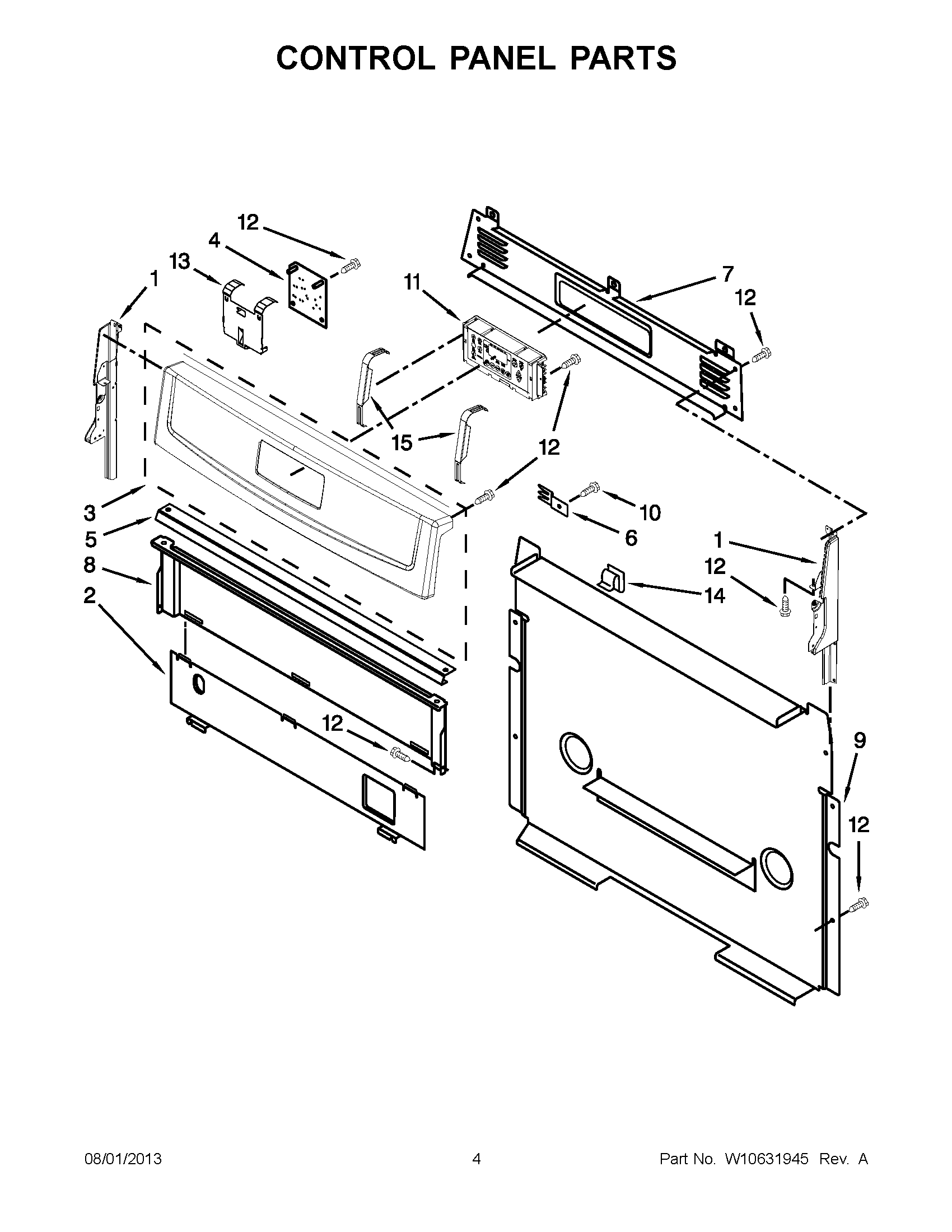

AGR5630BDB0 02 – CONTROL PANEL PARTS

AGR5630BDB0 02 – CONTROL PANEL PARTS

Written by

in

AGR5630BDB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	SHIELD, HEAT
3	MAY W10572581
3	MAY W10572583
3	MAY W10572579
4	MAY W10331686
5	MAY W10525122
6	BRACKET, REAR COOKTOP
7	COVER, UPPER
8	SHIELD, HEAT
9	COVER, BACK
10	SCREW
11	MAY W10572544
11	MAY W10572545
12	SCREW
13	Brkt-Mntg, DSI
14	MAY 8273564
15	BRACKET, MOUNTING, EOC
