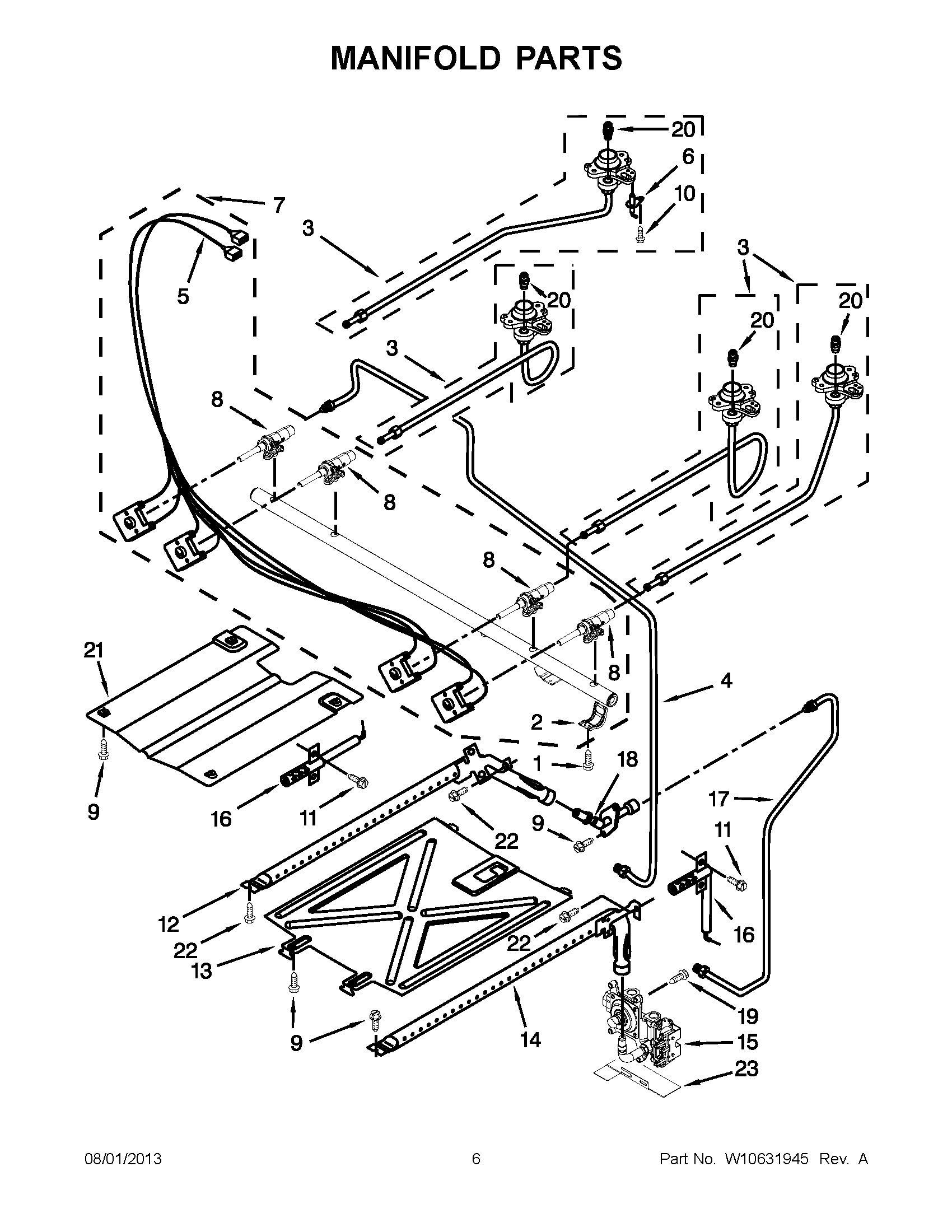

AGR5630BDB0 03 – MANIFOLD PARTS

Products

PositionProduct
NIMAY W10400498
NISPUDS, LP GAS (KIT OF 4)
NIORIFICE, LP BAKE
NILINER (NOT A SERVICEABLE PART)
1SCREW, VALVE
2BRACKET, SADDLE VALVE
3TUBING, BURNER W/ORIFICE (LEFT FRONT (12K))
3TUBING, BURNER W/ORIFICE (LEFT REAR (9.5K))
3TUBING, BURNER W/ORIFICE (RIGHT FRONT (9.5K))
3TUBING, BURNER W/ORIFICE (RIGHT REAR (6K))
4TUBING (MANIFOLD TO REGULATOR)
5MAY W10295998
6Electrode (4)
7MAY W10314242
8VALVE, GAS (RIGHT REAR)
8VALVE, GAS (LEFT REAR)
9Screw
10MAY 8273062
11SCREW
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15REGULATOR
16Igniter (Broil)
16ELECTRODE, BAKE
17TUBE, BROILER SUPPLY
18MAY W10340259
19SCREW
20ORIFICE, BURNER (12K) (RIGHT FRONT)
20ORIFICE, NATURAL (9.5K) (LEFT REAR)
20ORIFICE, NATURAL (5K) (RIGHT REAR)
21SPREADER, FLAME (BROILER)
22SCREW
23BRACKET, AEGIS
