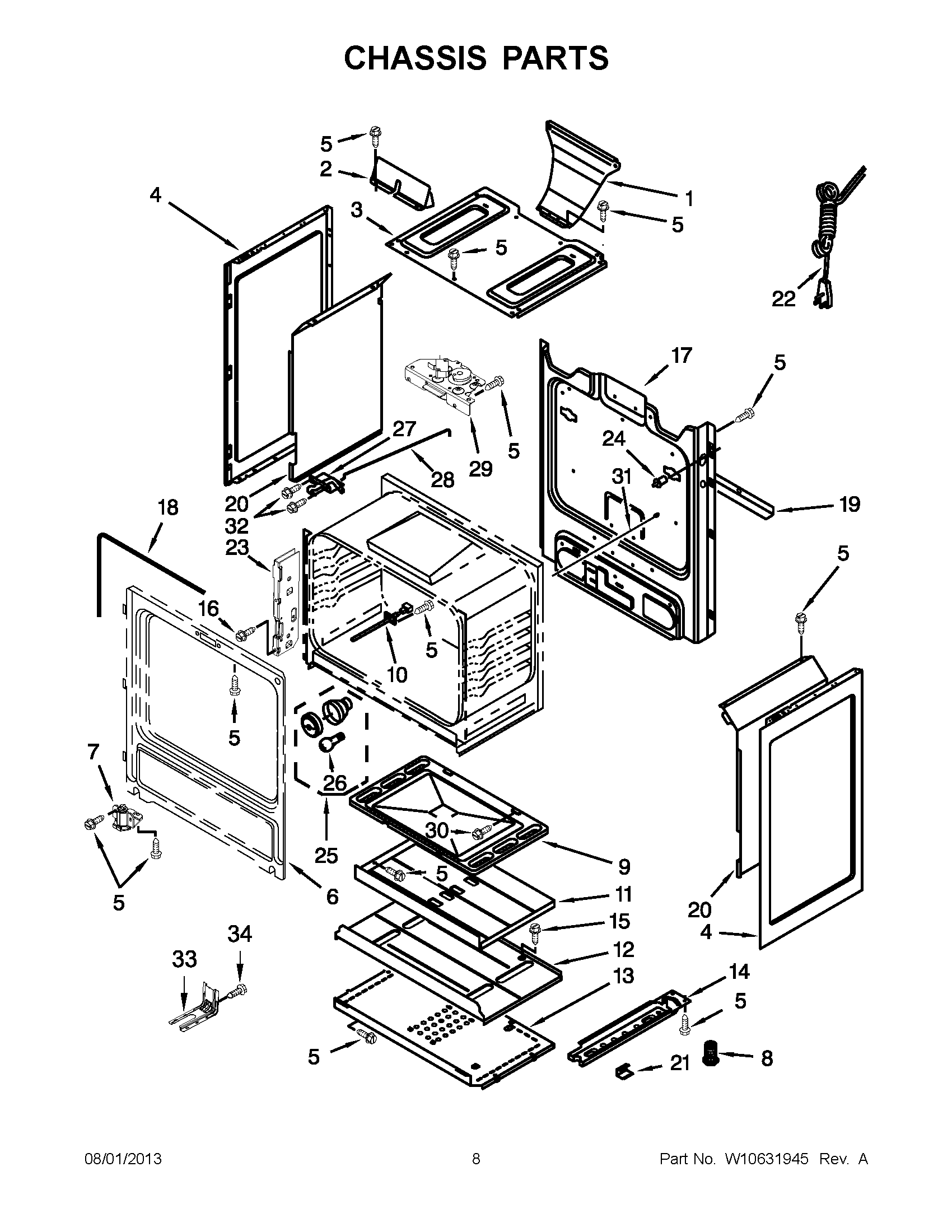

AGR5630BDB0 04 – CHASSIS PARTSadmin2025-04-26T11:33:45+00:00AGR5630BDB0 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | INSULATION, WRAP |
| 1 | BOX, FLUE |
| 2 | SHIELD, FLUE |
| 3 | BOX-BURNER, GAS SEALED |
| 4 | MAY W10322769 |
| 4 | MAY W10322770 |
| 5 | SCREW |
| 6 | LINER (NOT A SERVICEABLE PART) |
| 7 | ASSEMBLY, FRONT FOOT |
| 8 | FOOT, LEVELING |
| 9 | BOTTOM, OVEN |
| 10 | SENSOR, OVEN |
| 11 | BAFFLE, BURNER OVEN |
| 12 | SHIELD, HEAT |
| 13 | SHIELD, LOWER |
| 14 | ASSEMBLY, BASE RAIL (RIGHT) |
| 14 | ASSEMBLY, BASE RAIL (LEFT) |
| 15 | Screw |
| 16 | MAY W10031780 |
| 17 | MAY W10224919 |
| 18 | MAY 8522416 |
| 19 | MAY W10387695 |
| 20 | MAY 9761449 |
| 20 | MAY 9761448 |
| 21 | CLIP, PANEL |
| 22 | Cord, Power |
| 23 | RECEIVER, HINGE |
| 24 | MAY 9757262 |
| 25 | ASSEMBLY, LIGHT |
| 26 | BULB, OVEN LIGHT |
| 27 | ASSEMBLY, DOOR LATCH (FRONT) |
| 28 | ROD, PUSH LATCH |
| 29 | ASSEMBLY, DOOR LATCH (REAR) |
| 30 | SCREW |
| 31 | ROD, DOOR SWITCH |
| 32 | SCREW |
| 33 | BRACKET, ANTI-TIP |
| 34 | SCREW, ANTI-TIP KIT |
