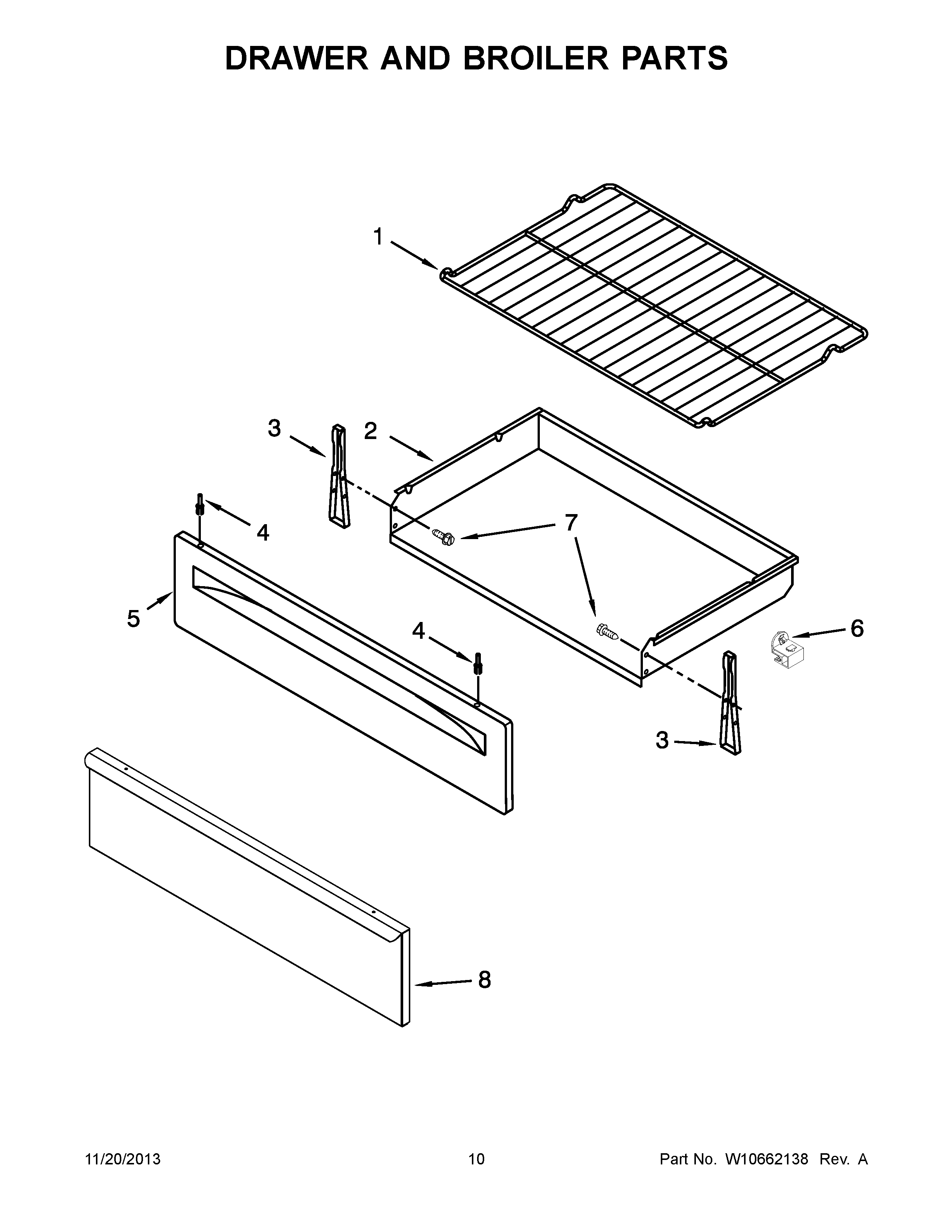

AGR5630BDB1 06 – DRAWER AND BROILER PARTS

Written by

Products

Position	Product
1	RACK, OVEN
2	MAY W10300032
3	BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
3	BRACKET, DRAWER MOUNTING (WHITE MODEL)
4	RIVET, PUSH (BLACK)
4	RIVET, PUSH (WHITE)
5	PANEL, DRAWER FRONT (WHITE)
5	PANEL, DRAWER (BLACK)
6	GLIDE, REAR DRAWER
7	SCREW
8	PANEL, FRONT (STAINLESS)
