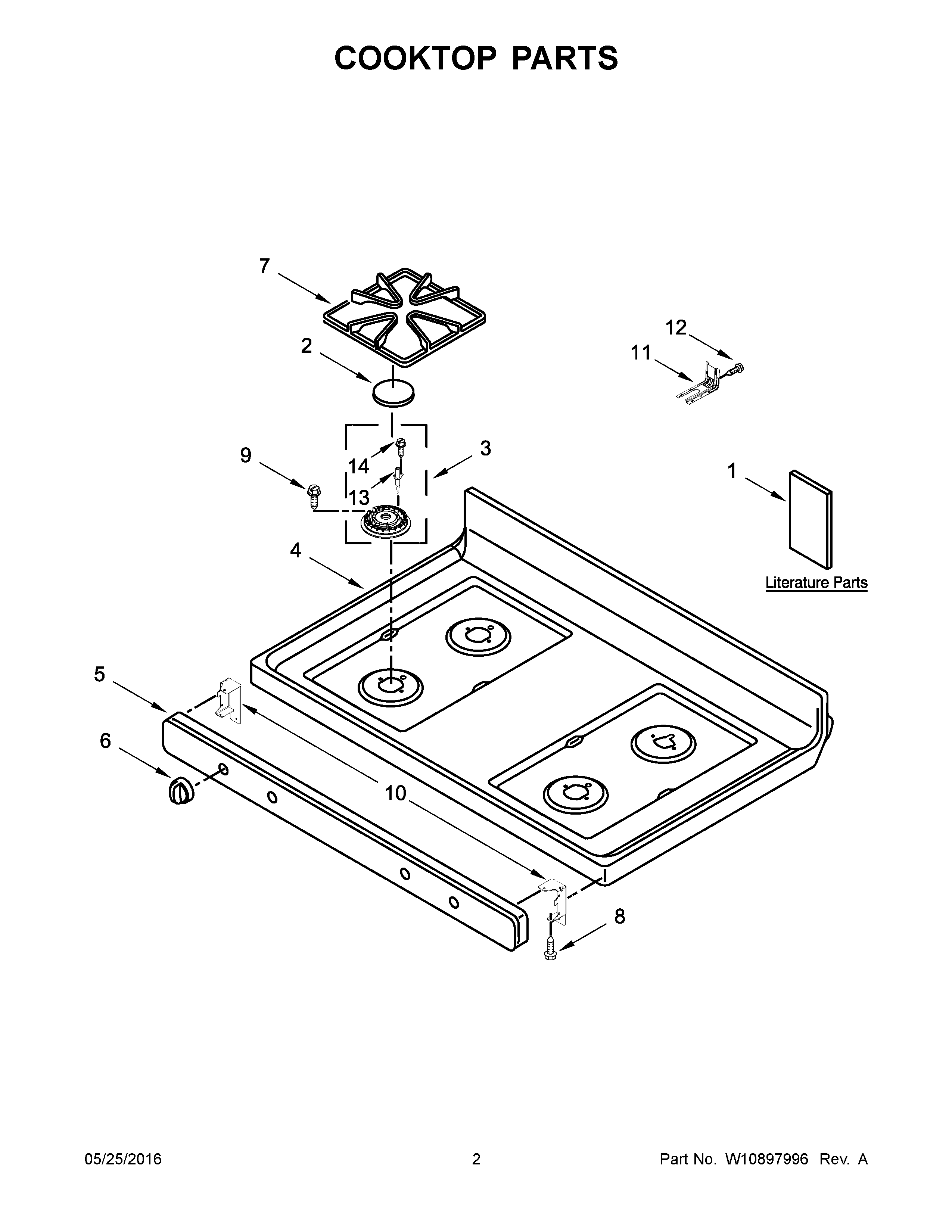

AGR5630BDB2 02 – COOKTOP PARTSadmin2025-04-26T11:32:50+00:00AGR5630BDB2 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, MAIN |
| NI | MAY W10519920 |
| NI | HARNESS, COOKTOP |
| NI | HARNESS, BAKE/BROIL |
| NI | CLIP, GAS WIRING |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | CLIP, HARNESS |
| NI | CLIP, WIRE |
| NI | CLIP, HARNESS |
| NI | CLIP, WIRE |
| NI | SCREW |
| NI | SCREW |
| NI | TIE, MANIFOLD WIRE |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1A | GUIDE, USE & CARE |
| 1B | TECH SHEET (ENGLISH) |
| 1E | TIPS, SAFE COOKING (FRENCH) |
| 1D | TIPS, SAFE COOKING (ENGLISH) |
| 1C | TECH SHEET (FRENCH) |
| 2 | CAP, BURNER (BLACK) |
| 2A | CAP, BURNER (WETSTONE) |
| 3B | ASSEMBLY, BURNER (6K) (RIGHT REAR) |
| 3 | MAY W10515452 |
| 3A | ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) |
| 4A | MAY 8272251 |
| 4 | MAY 8272253 |
| 5 | MAY 8523855 |
| 5A | MAY 8523854 |
| 6A | KNOB, CONTROL (WHITE) |
| 6 | KNOB, CONTROL (BLACK) |
| 7A | MAY W10683630 |
| 7 | KIT, GRATE (BLACK) |
| 8 | SCREW |
| 9 | MAY 3196557 |
| 10 | BRACKET, MANIFOLD |
| 11 | BRACKET, ANTI-TIP |
| 12 | SCREW, ANTI-TIP KIT |
| 13 | ELECTRODE (RIGHT REAR) |
| 14 | MAY 8273062 |
