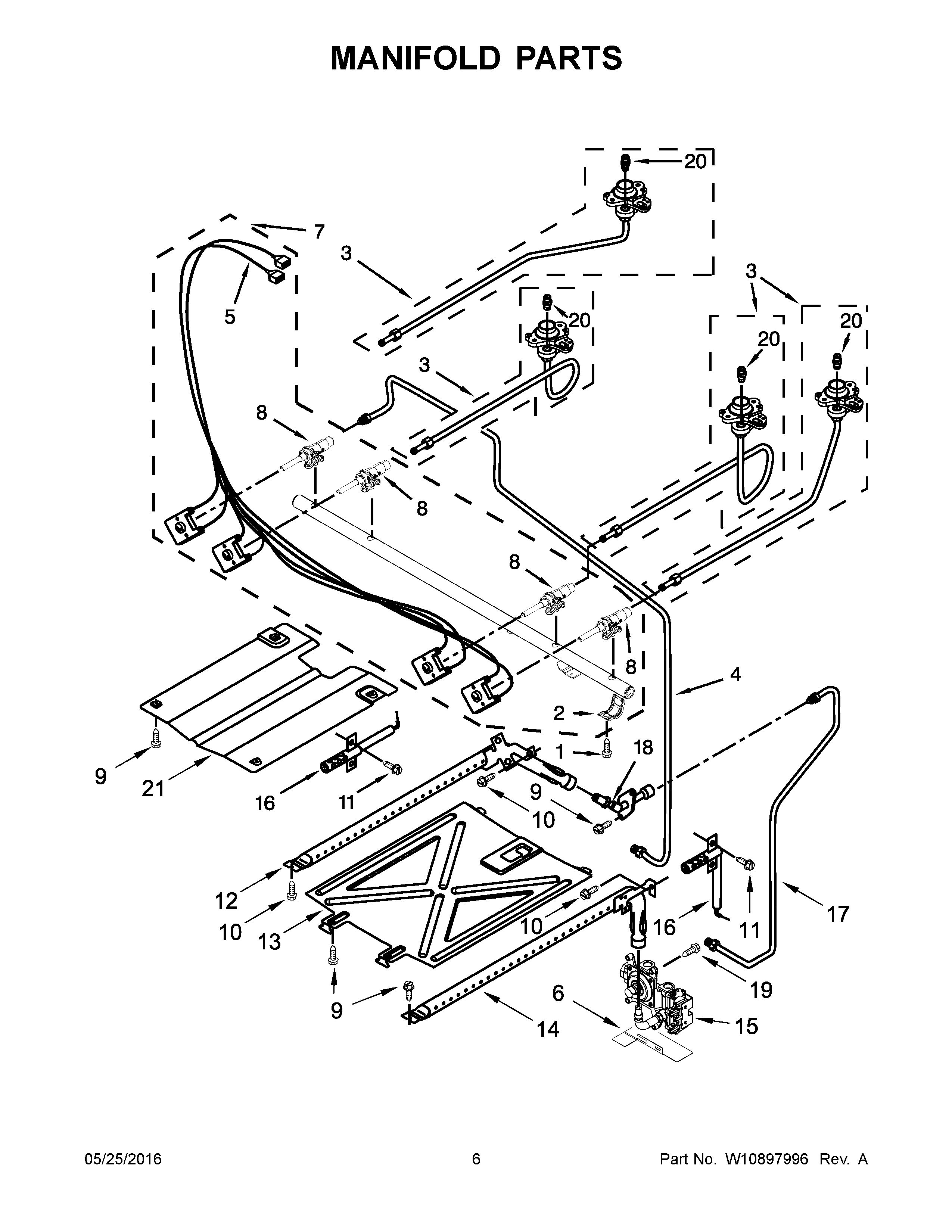

AGR5630BDB2 04 – MANIFOLD PARTSadmin2025-04-26T11:31:31+00:00AGR5630BDB2 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | SPUDS, LP GAS (KIT OF 4) |
| NI | KIT, LP BAKE AND BROIL |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | SCREW, VALVE |
| 2 | BRACKET, SADDLE VALVE |
| 3C | MAY W10474163 |
| 3B | MAY W10474169 |
| 3A | MAY W10473929 |
| 3 | MAY W10474154 |
| 4 | TUBING (MANIFOLD TO REGULATOR) |
| 5 | MAY W10812380 |
| 6 | BRACKET, AEGIS |
| 7 | MAY W10812381 |
| 8A | VALVE, GAS (RIGHT REAR) |
| 8 | VALVE, GAS (LEFT REAR) |
| 9 | Screw |
| 10 | SCREW |
| 11 | SCREW |
| 12 | BURNER, BROILER |
| 13 | SPREADER, FLAME (OVEN) |
| 14 | BURNER, BAKE |
| 15 | REGULATOR |
| 16 | Igniter (Broil) |
| 16A | ELECTRODE, BAKE |
| 17 | TUBE, BROILER SUPPLY |
| 18 | FITTING, BROILER |
| 19 | SCREW |
| 20A | ORIFICE, BURNER (12K) (RIGHT FRONT) |
| 20B | ORIFICE, NATURAL (5K) (RIGHT REAR) |
| 20 | ORIFICE, NATURAL (9.5K) (LEFT REAR) |
| 21 | SPREADER, FLAME (BROILER) |
